Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. Refer to Battery Disconnect .

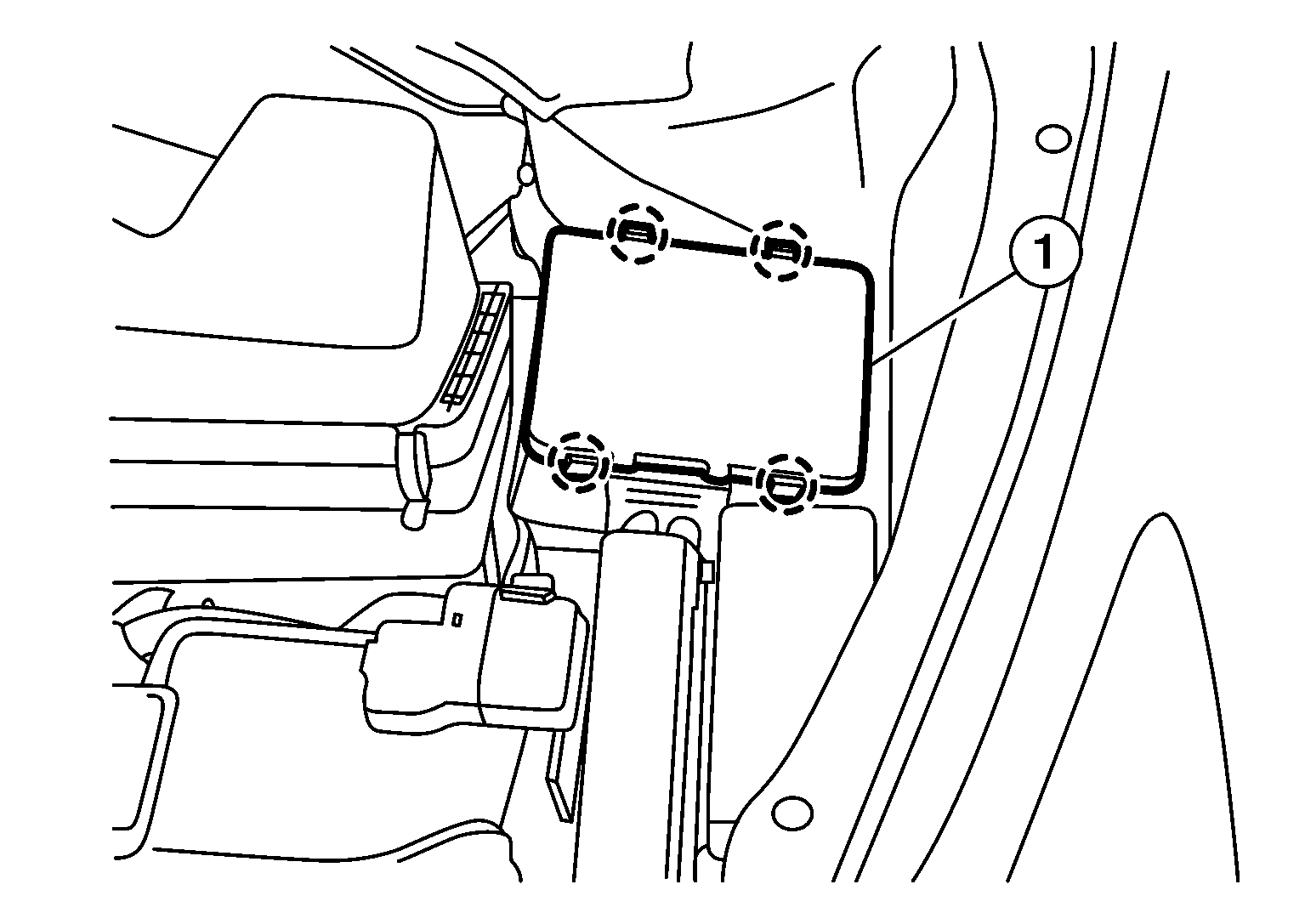

  2. Release the pawls and separate the IPDM E/R (1) from the case.
    GNSDB121887Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    :Pawl

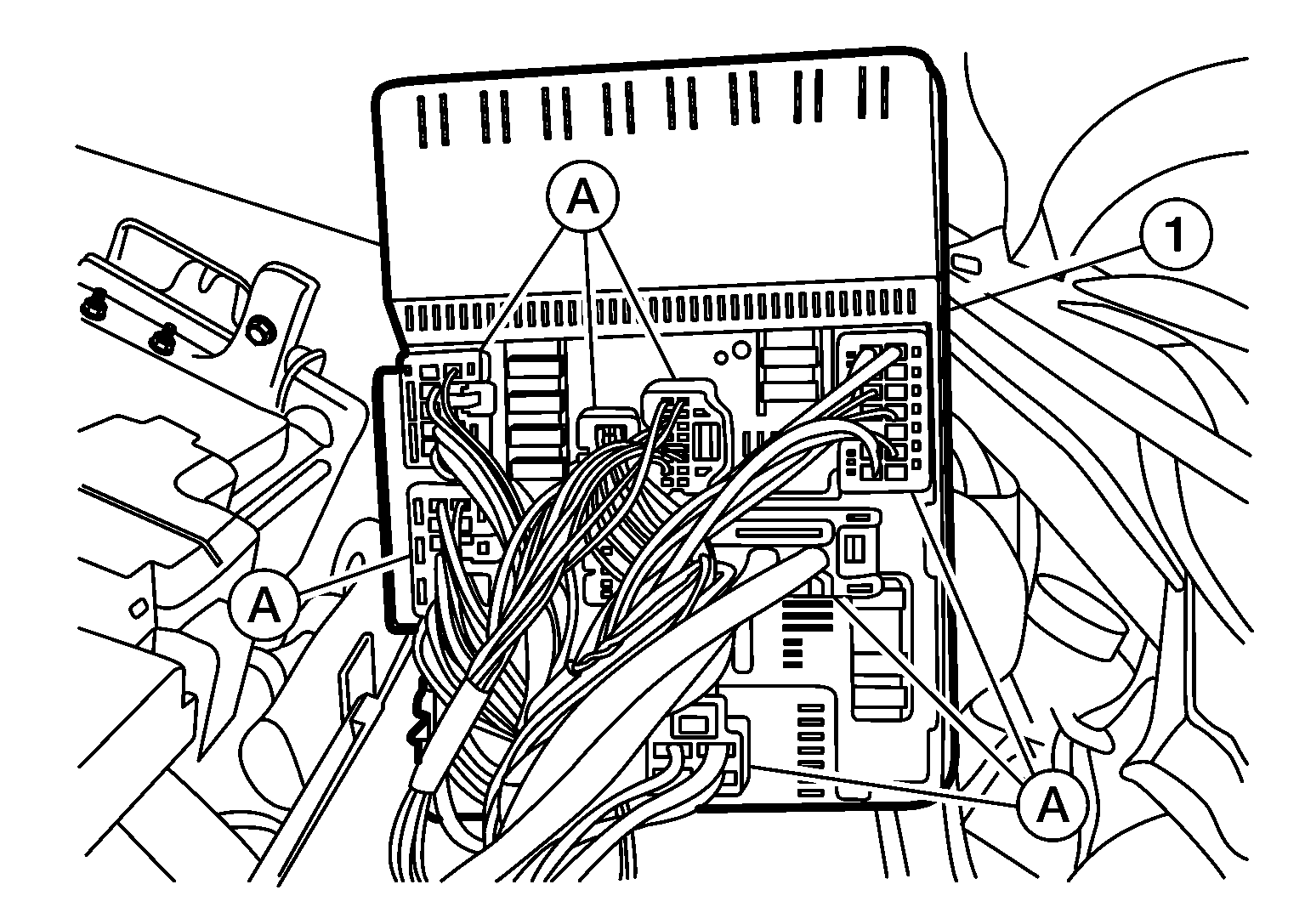

  3. Disconnect all harness connectors (A) from the IPDM E/R (1) and remove.
    GNSDB117726Courtesy of NISSAN NORTH AMERICA, INC.
