Available Piston
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Unit: mm (in)
|
Items |
Grade* |
Standard |
|
|

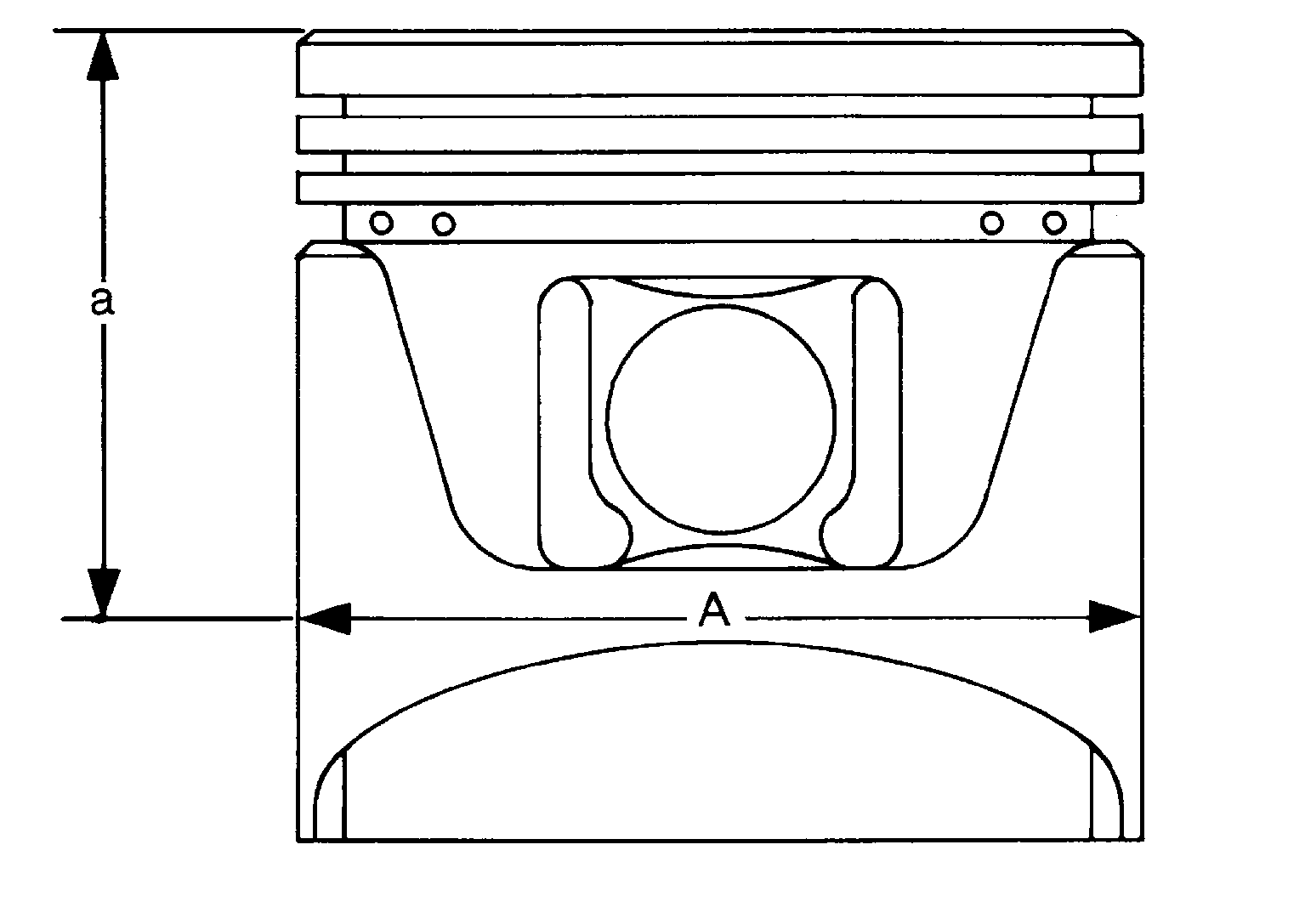

Piston skirt diameter (A) |
Grade No. 1 |
95.470 - 95.480 (3.7587 - 3.7590) |
|
|
Grade No. 2 |
95.480 - 95.490 (3.7590 - 3.7594) |
||
|
Grade No. 3 |
95.490 - 95.500 (3.7594 - 3.7598) |
||
|
(a) dimension |
38.0 (1.496) |
||
|
Piston pin hole diameter |
21.995 - 21.999 (0.8659 - 0.8661) |
||
|
Piston to cylinder bore clearance |
0.020 - 0.040 (0.0008 - 0.0016) |
||
*: Always check with the Parts Department for the latest parts information.
