Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

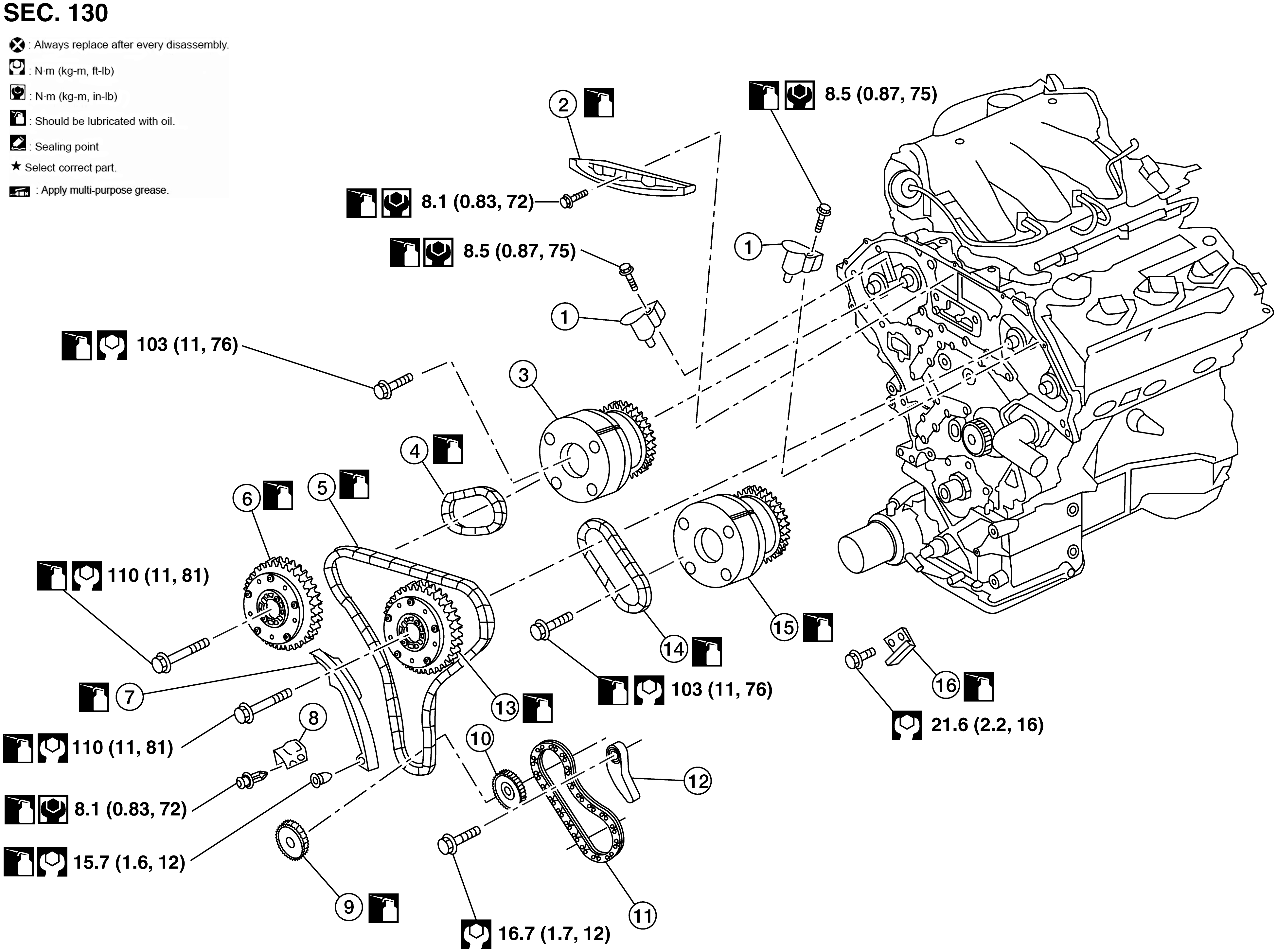

Fig 1: Timing Chain Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Timing chain tensioner (secondary)	2.	Internal chain guide	3.	Camshaft sprocket [bank 1 (EXH)]
4.	Timing chain [bank 1 (secondary)]	5.	Timing chain (primary)	6.	Camshaft sprocket [bank 1 (INT)]
7.	Slack guide	8.	Timing chain tensioner (primary)	9.	Crankshaft sprocket
10.	Oil pump drive chain sprocket	11.	Oil pump drive chain	12.	Oil pump drive chain tensioner
13.	Camshaft sprocket [bank 2 (INT)]	14.	Timing chain [bank 2 (secondary)]	15.	Camshaft sprocket [bank 2 (EXH)]
16.	Tension guide
