Removal and Installation (Bank 2): Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be sure to read Precaution for Handling High Pressure Fuel System when working on the high pressure fuel system.
Put a "CAUTION: FLAMMABLE" sign in the workshop.
Be sure to work in a well ventilated area and furnish workshop with a CO ₂ fire extinguisher.
Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

Release fuel pressure. Refer to Work Procedure .
Remove high pressure fuel pump. Refer to Removal and Installation .

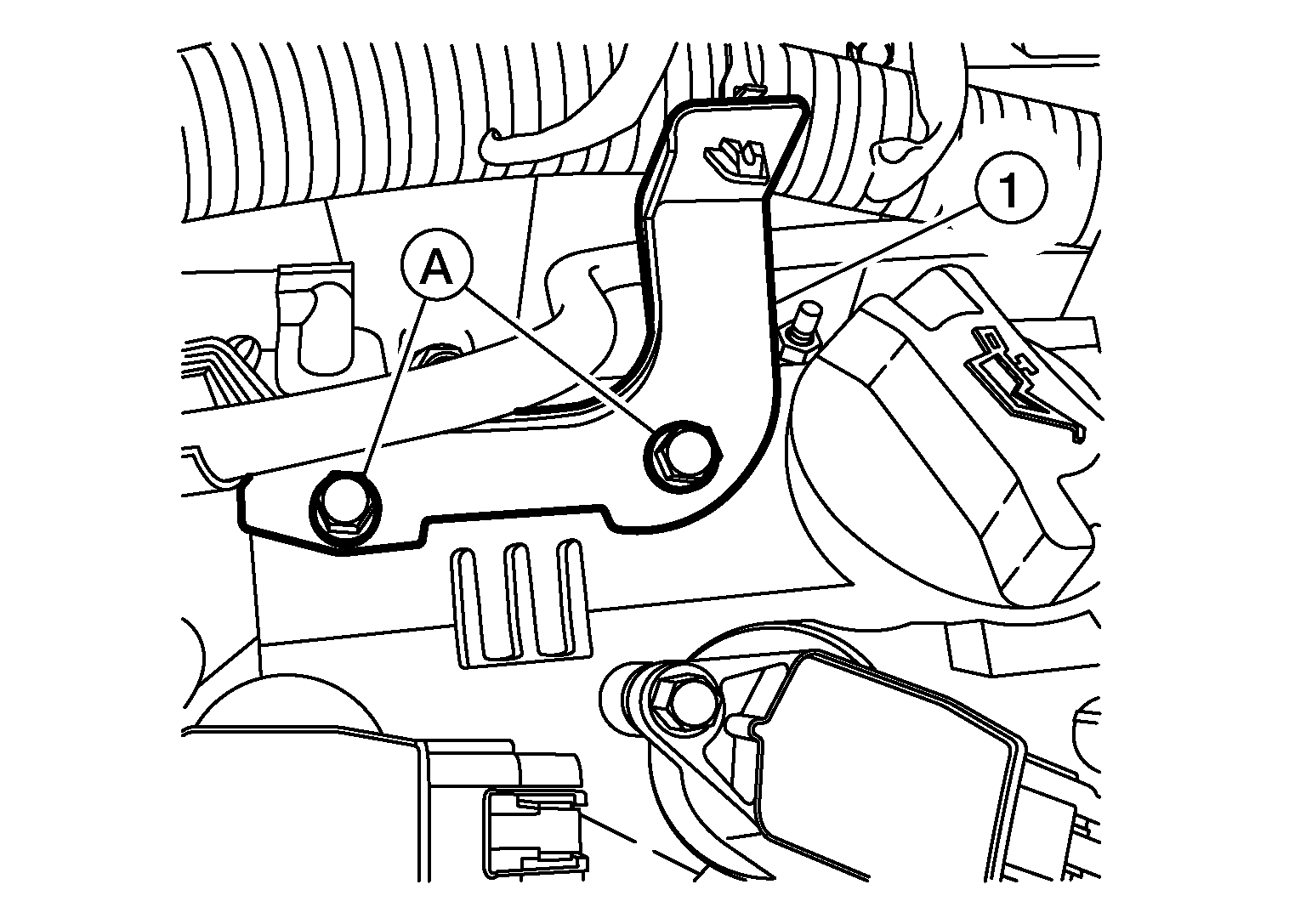

Remove bolts (A) and reposition bracket (1) away from rocker cover (bank 2).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector from exhaust camshaft position sensor (bank 2) and intake camshaft position sensor (bank 2).
Remove exhaust camshaft position sensor (bank 2) and intake camshaft position sensor (bank 2).

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Handle carefully to avoid dropping and shocks.
- Do not disassemble camshaft position sensor.
- Do not allow metal powder to cling to magnetic part at sensor tip (A).
- Do not place sensors in a location where they are exposed to magnetism.
Remove ignition coils. Refer to Exploded View .
CAUTION: Do not shock ignition coils.
Remove rocker cover bolts in reverse of the sequence shown below and remove rocker cover (bank 2).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse rocker cover (bank 2) gasket.
Remove oil filler cap from rocker cover (bank 2) (if necessary).
Disengage clamp and remove blow-by hose from rocker cover (bank 2) (if necessary).
