Removal and Installation (Bank 1): Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room cover. Refer to Removal and Installation .
  2. Remove the front air duct and air duct hose and resonator assembly. Refer to Removal and Installation .
  3. Remove the intake manifold collector. Refer to Removal and Installation .
  4. Disconnect the harness connectors from exhaust camshaft position sensor (bank 1) and intake camshaft position sensor (bank 1).
  5. Remove exhaust camshaft position sensor (bank 1) and intake camshaft position sensor (bank 1).

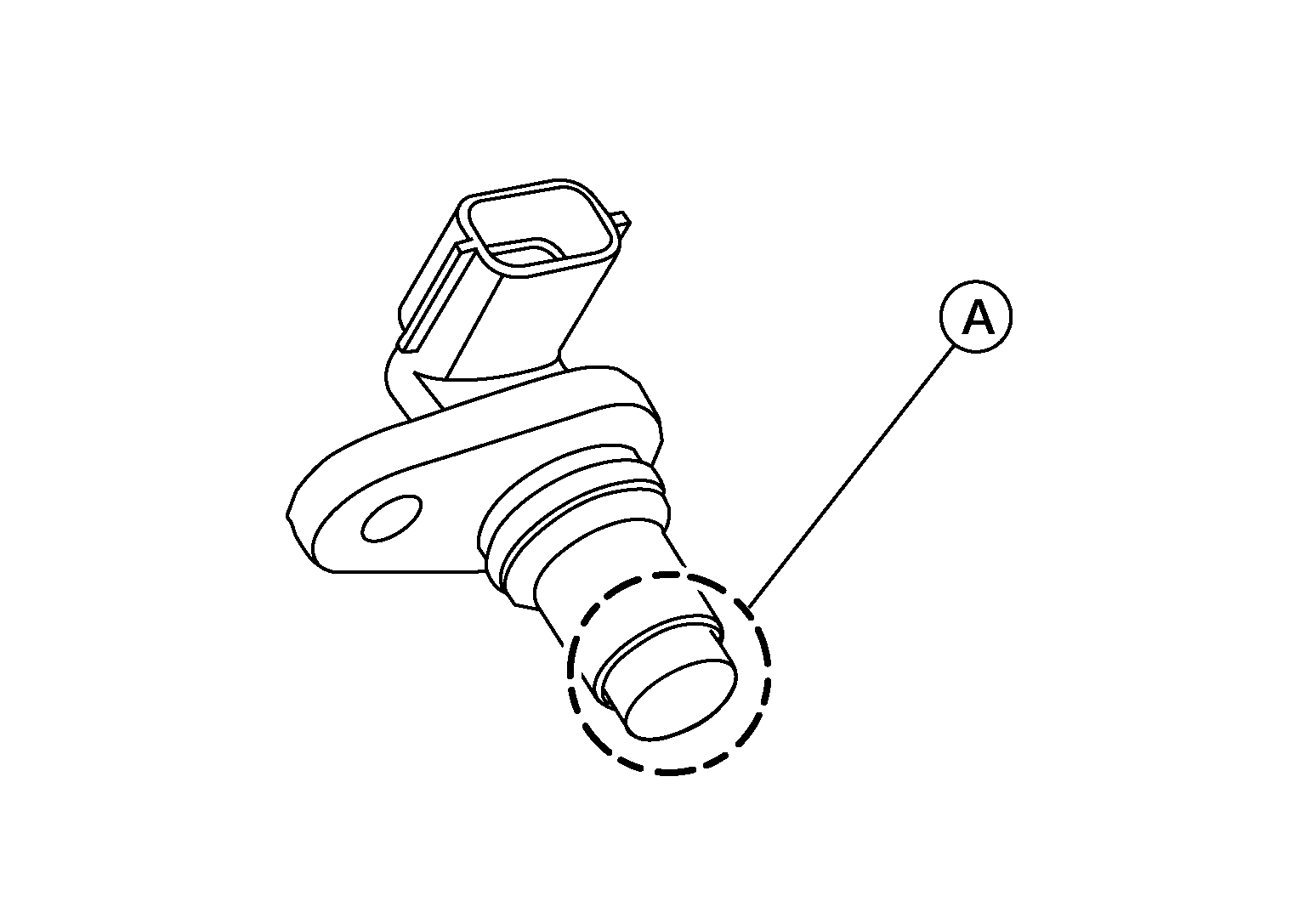

    GNSALBIA0258Z-258Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Handle carefully to avoid dropping and shocks.
    • Do not disassemble camshaft position sensor.
    • Do not allow metal powder to cling to magnetic part at sensor tip (A).
    • Do not place sensors in a location where they are exposed to magnetism.
  6. Disconnect the breather hose from the rocker cover.
  7. Remove ignition coils. Refer to Exploded View .
    CAUTION: Do not shock ignition coils.
  8. Remove rocker cover bolts in reverse of the sequence shown, below.
    GNSAWBIA0705Z-705Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Engine front
  9. Remove the rocker cover (bank 1) and rocker cover (bank 1) gasket.
    CAUTION: Do not reuse rocker cover (bank 1) gasket.
