Removal and Installation (Lower Oil Pan): Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: You should not remove the oil pan until the exhaust system and cooling system have completely cooled off.

Drain the engine oil. Refer to Changing Engine Oil .

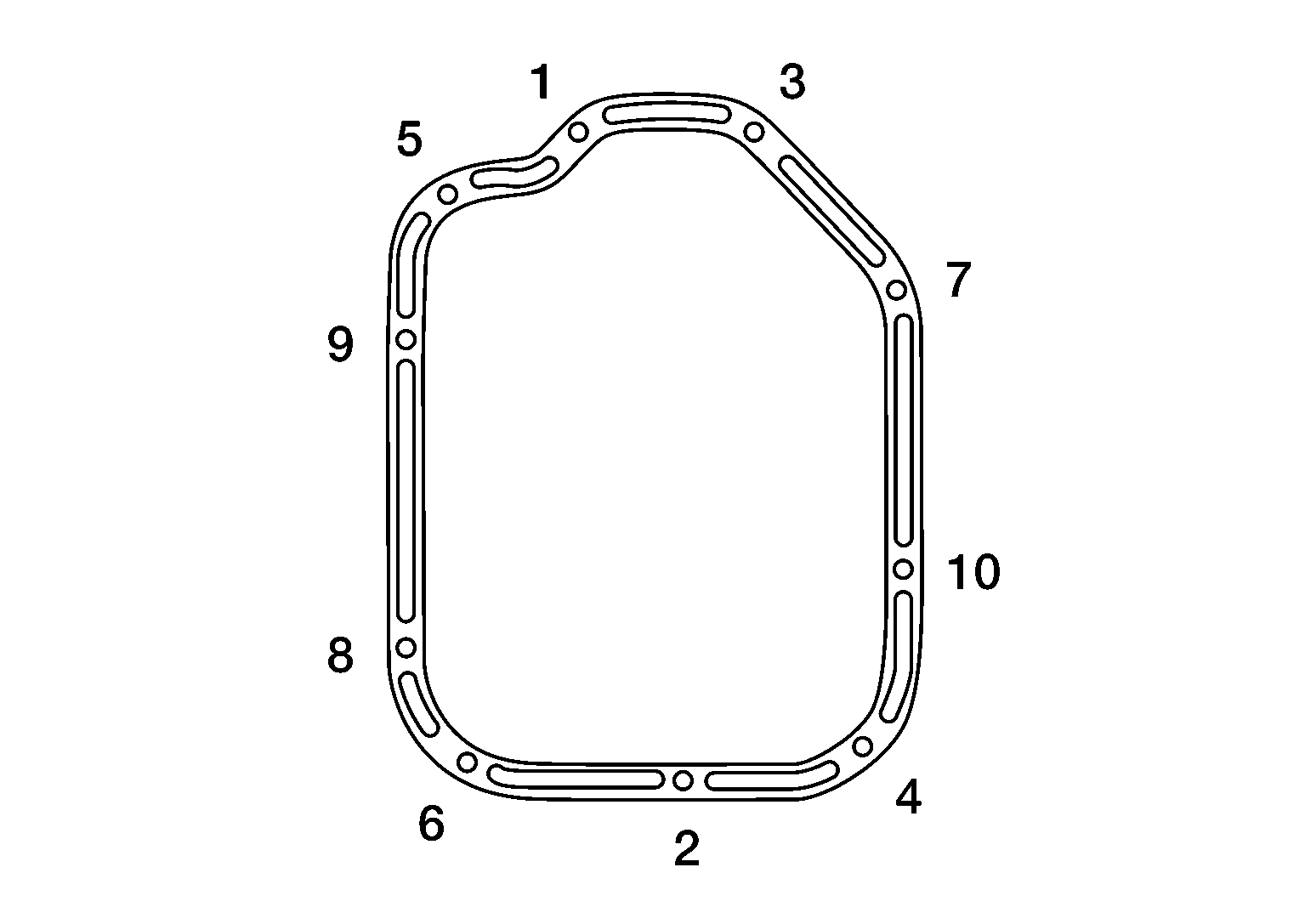

Loosen the oil pan (lower) bolts in reverse of the sequence shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

Remove the oil pan (lower).

CAUTION: Do not damage the mating surfaces.

After removing the bolts, separate the mating surface and remove the old liquid gasket using Tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.

Tap (B) the Tool to insert it.

In areas where the Tool is difficult to use, lightly tap to slide (C) it.

Tool number (A)

: KV10111100 (J-37228)

Remove the old sealant from the bolt holes and threads.
