Inspection After Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Surface Distortion

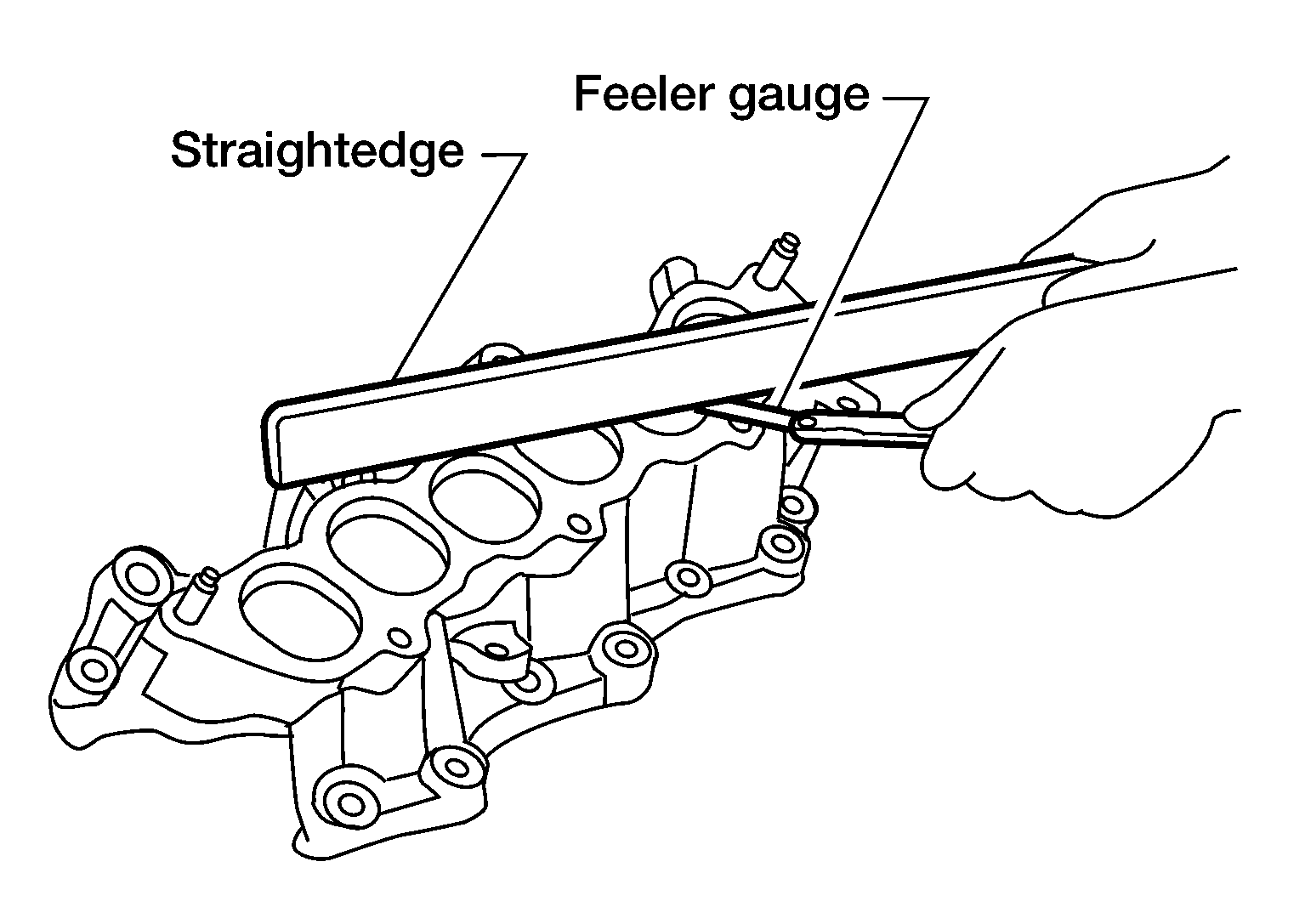

Using straightedge and feeler gauge, inspect the surface distortion of the intake manifold. Refer to Intake Manifold

Courtesy of NISSAN NORTH AMERICA, INC.

Standard

: 0.1 mm (0.004 in)
