Inspection After Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Surface Distortion

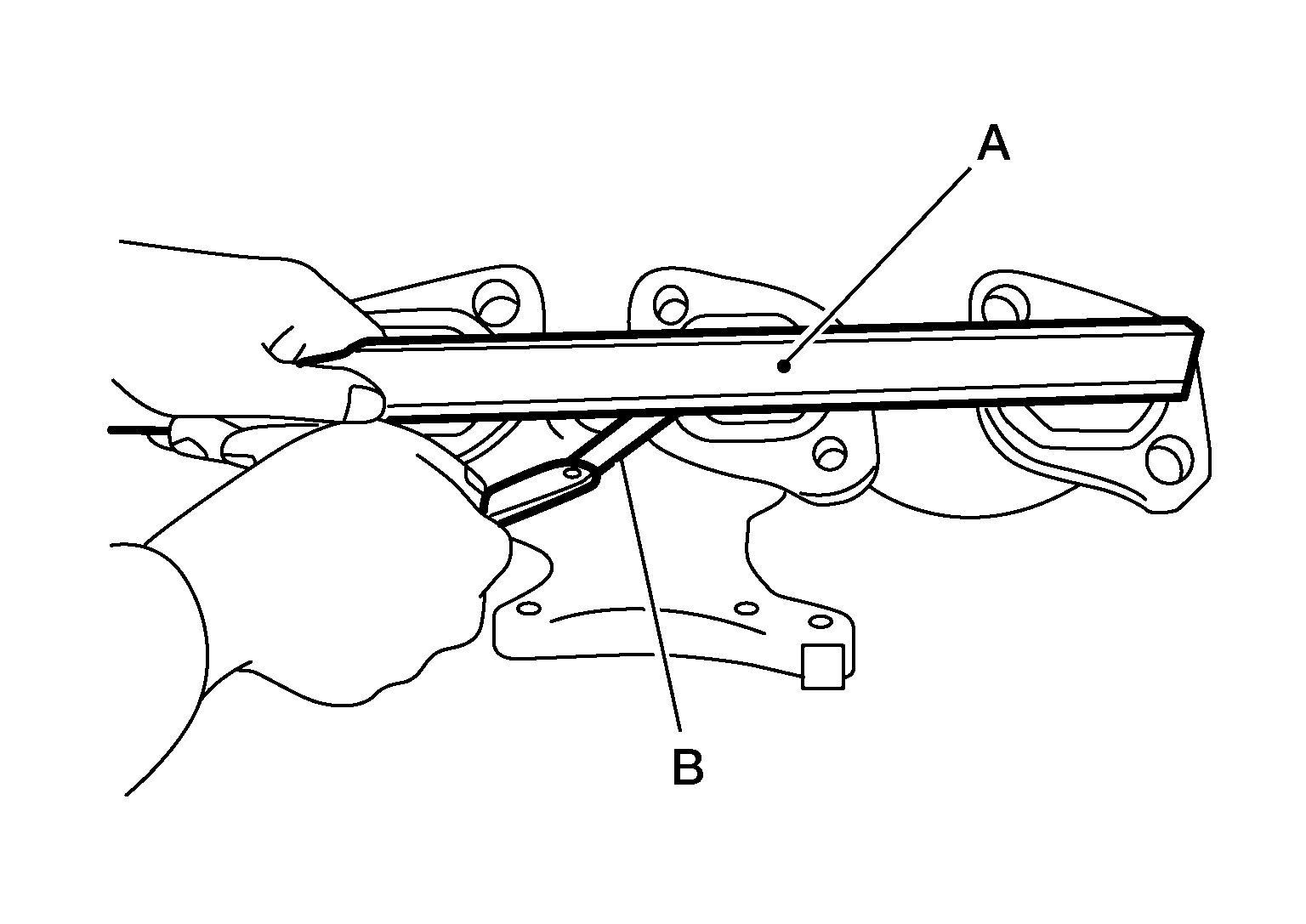

- Use a reliable straightedge (A) and feeler gauge (B) to check the flatness of the exhaust manifold mating surfaces.
Limit
: Refer to Exhaust Manifold .
- Replace the exhaust manifold if the measurement exceeds specifications.
