Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

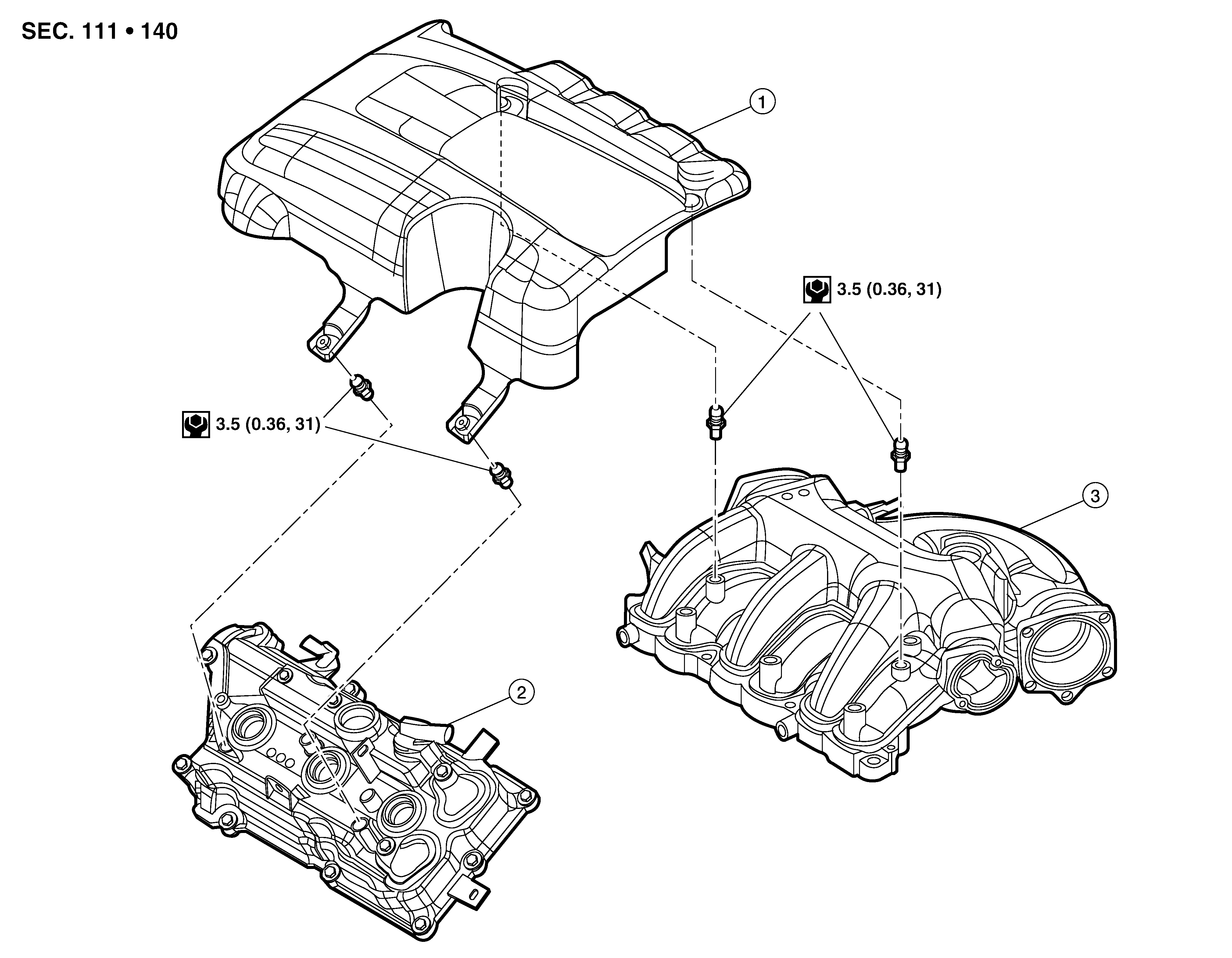

Fig 1: Engine Room Cover Components With Torque Specifications
GNSALBIA3227Z-227Courtesy of NISSAN NORTH AMERICA, INC.

1.

Engine room cover

2.

Rocker cover (bank 2)

3.

Intake manifold collector
