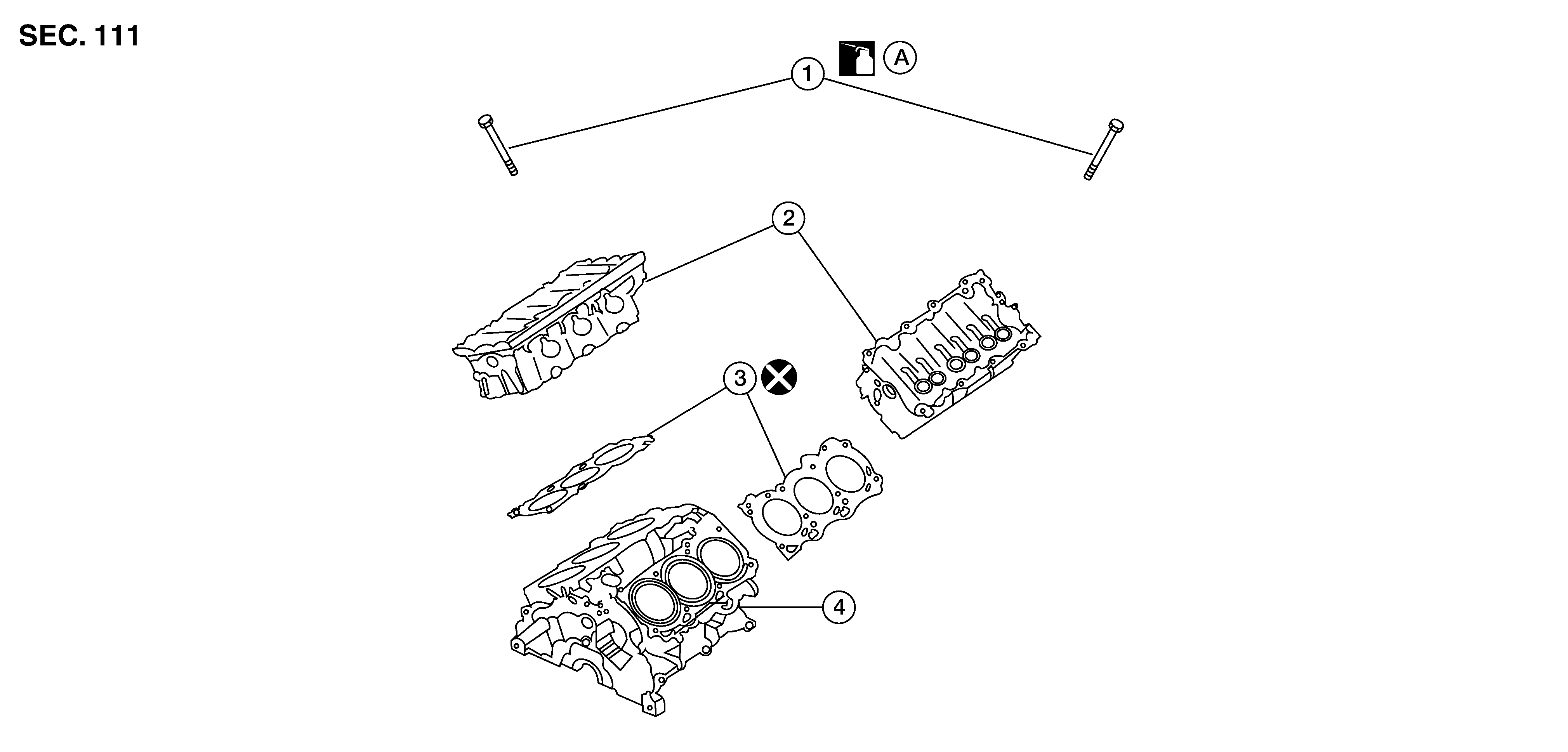

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Cylinder head bolt |
2. |
Cylinder head |
3. |
Cylinder head gasket |
|
4. |
Engine block |
A. |
Refer to INSTALLATION |
