Disassembly and Assembly: Notes
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

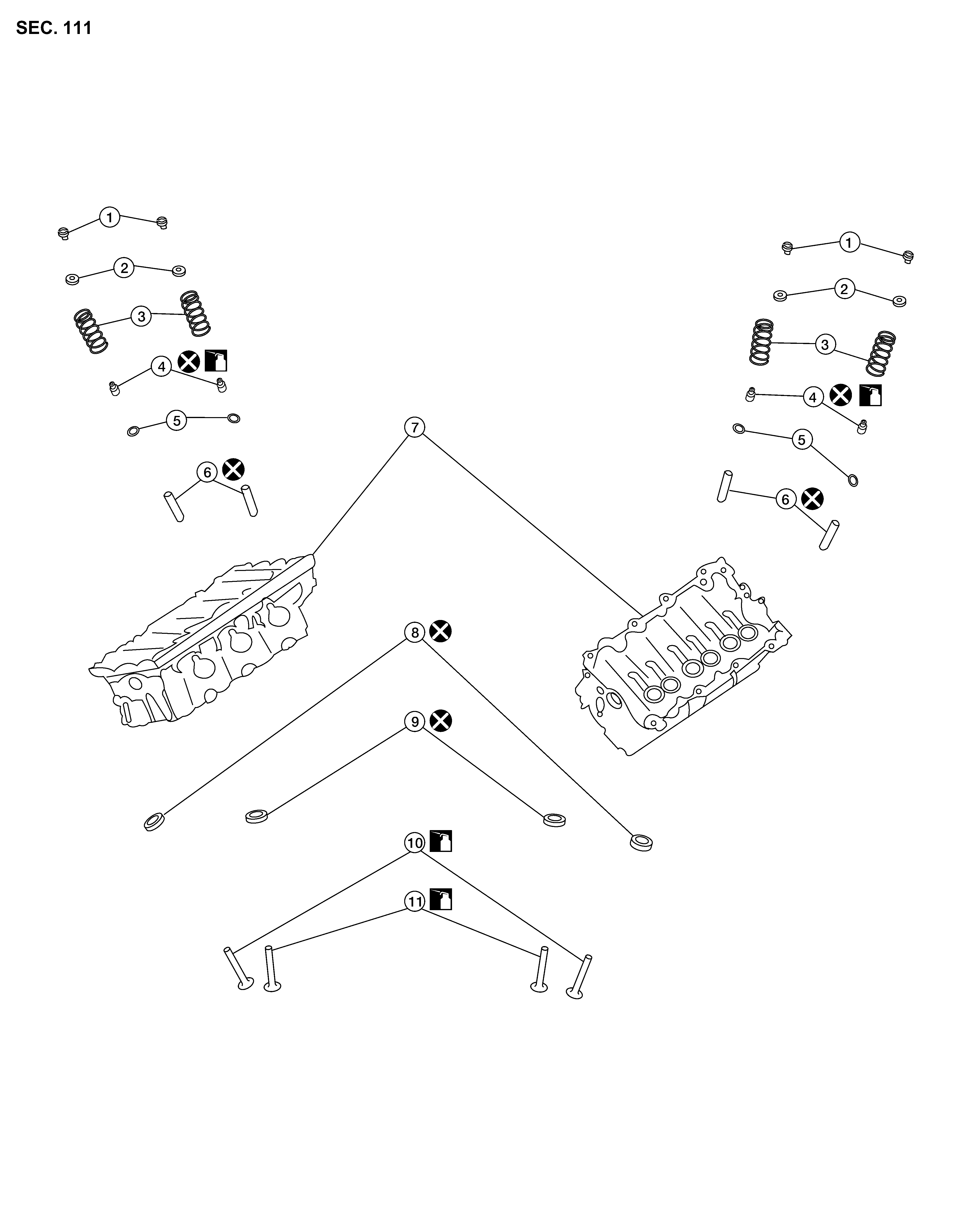

1. |
Valve collet |
2. |
Valve spring retainer |
3. |
Valve spring |
|
4. |
Valve oil seal |
5. |
Valve spring seat |
6. |
Valve guide |
|
7. |
Cylinder head |
8. |
Valve seat (EXH) |
9. |
Valve seat (INT) |
|
10. |
Valve (EXH) |
11. |
Valve (INT) |
CAUTION:
- When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
- Apply new engine oil to threads and seat surface when installing cylinder head, camshaft sprocket, crankshaft pulley, and camshaft bracket.
- Attach tags to valve lifters so as not to mix them up.
