Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing chains (primary and secondary). Refer to Removal and Installation .

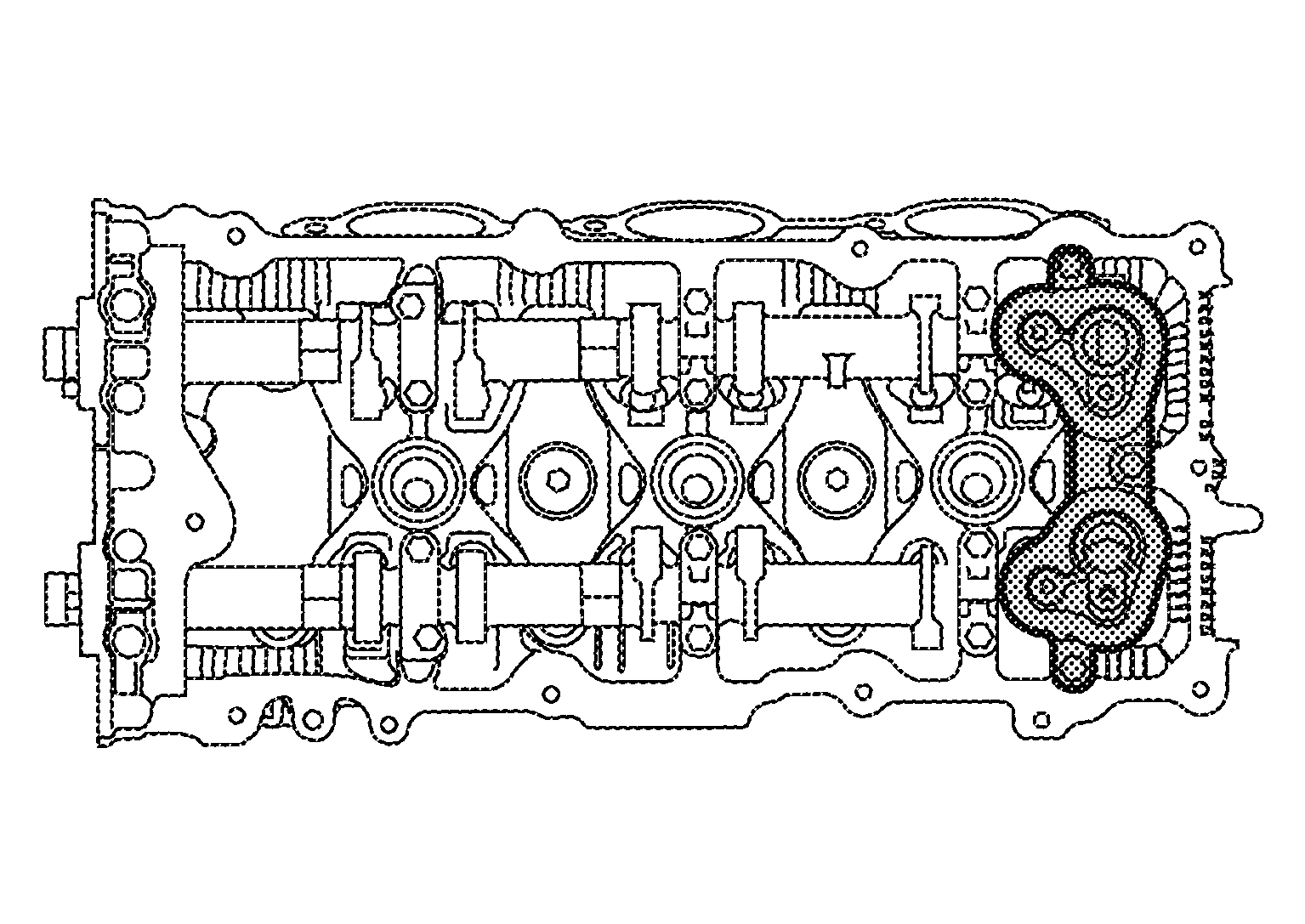

Remove camshaft position brackets (RH shown, LH similar).

Courtesy of NISSAN NORTH AMERICA, INC.

Loosen bolts in reverse of the sequence shown below and remove the intake, exhaust camshaft brackets and the camshafts.

Mark the camshafts, camshaft brackets, and bolts so they are placed in the same position and direction for installation.
Equally loosen the camshaft bracket bolts in several steps in the reverse order as shown, below.

Cylinder head [bank 1 (1)]

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	: Camshaft [EXH (bank 1)]
(B)	: Camshaft [INT (Bank 1)]
(C)	: Camshaft bracket
	: Engine front

Cylinder head [bank 2 (2)]

Courtesy of NISSAN NORTH AMERICA, INC.

Remove valve lifters (if necessary).
NOTE: Identify installation positions to ensure proper installation.
Remove secondary timing chain tensioner (1) from cylinder head.

Courtesy of NISSAN NORTH AMERICA, INC.
- Remove secondary tensioner with its stopper pin attached.
NOTE: Stopper pin was attached when secondary timing chain was removed.
