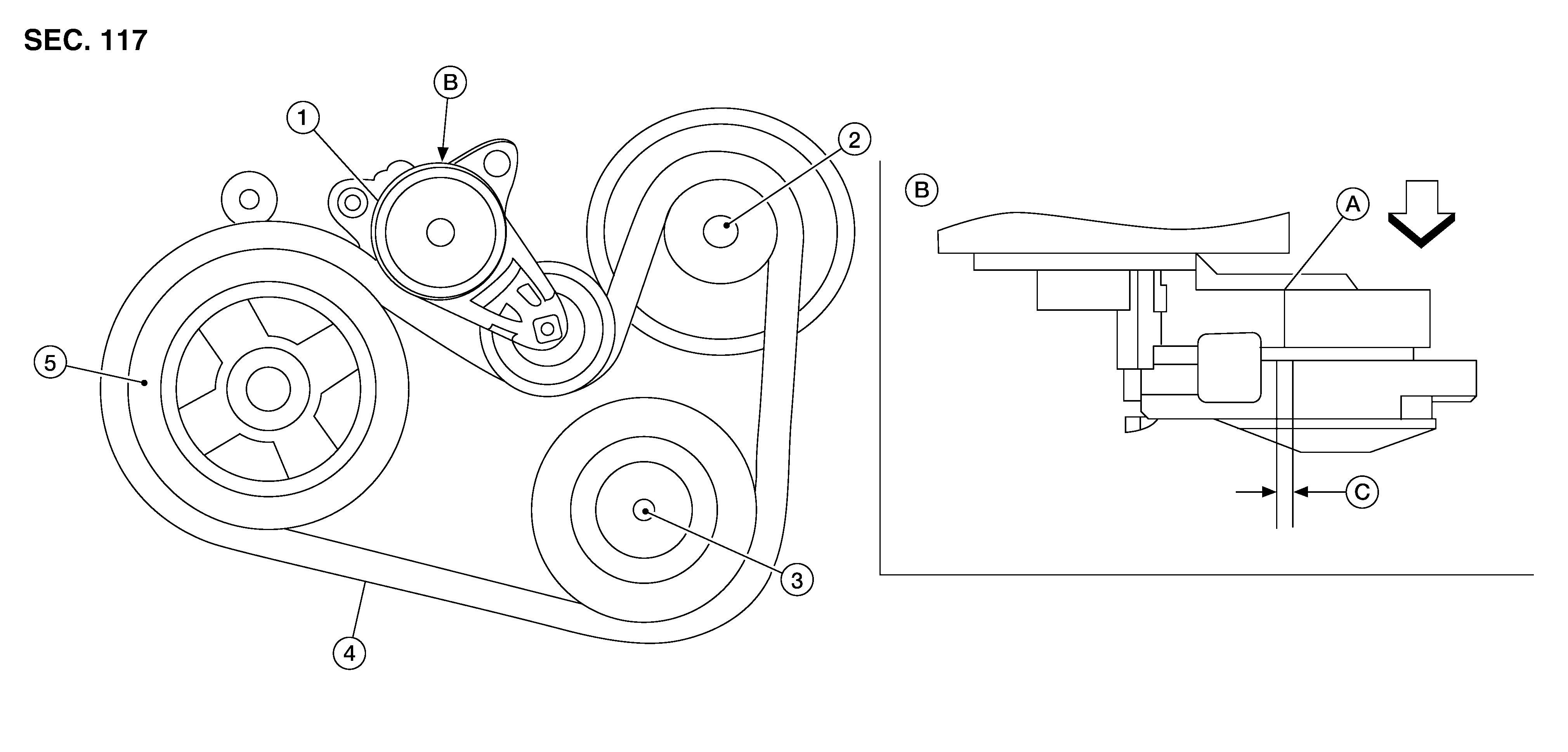

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Drive belt auto-tensioner
|
2.
|
Generator
|
3.
|
A/C compressor
|
|
4.
|
Drive belt
|
5.
|
Crankshaft pulley
|
A.
|
Drive belt auto-tensioner indicator
|
|
B.
|
View B
|
C.
|
Possible use range
|
|
Engine front
|
