Component Inspection (Front Blower Motor Relay)

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

CHECK BLOWER RELAY

Turn ignition switch OFF.
Remove front blower motor relay.

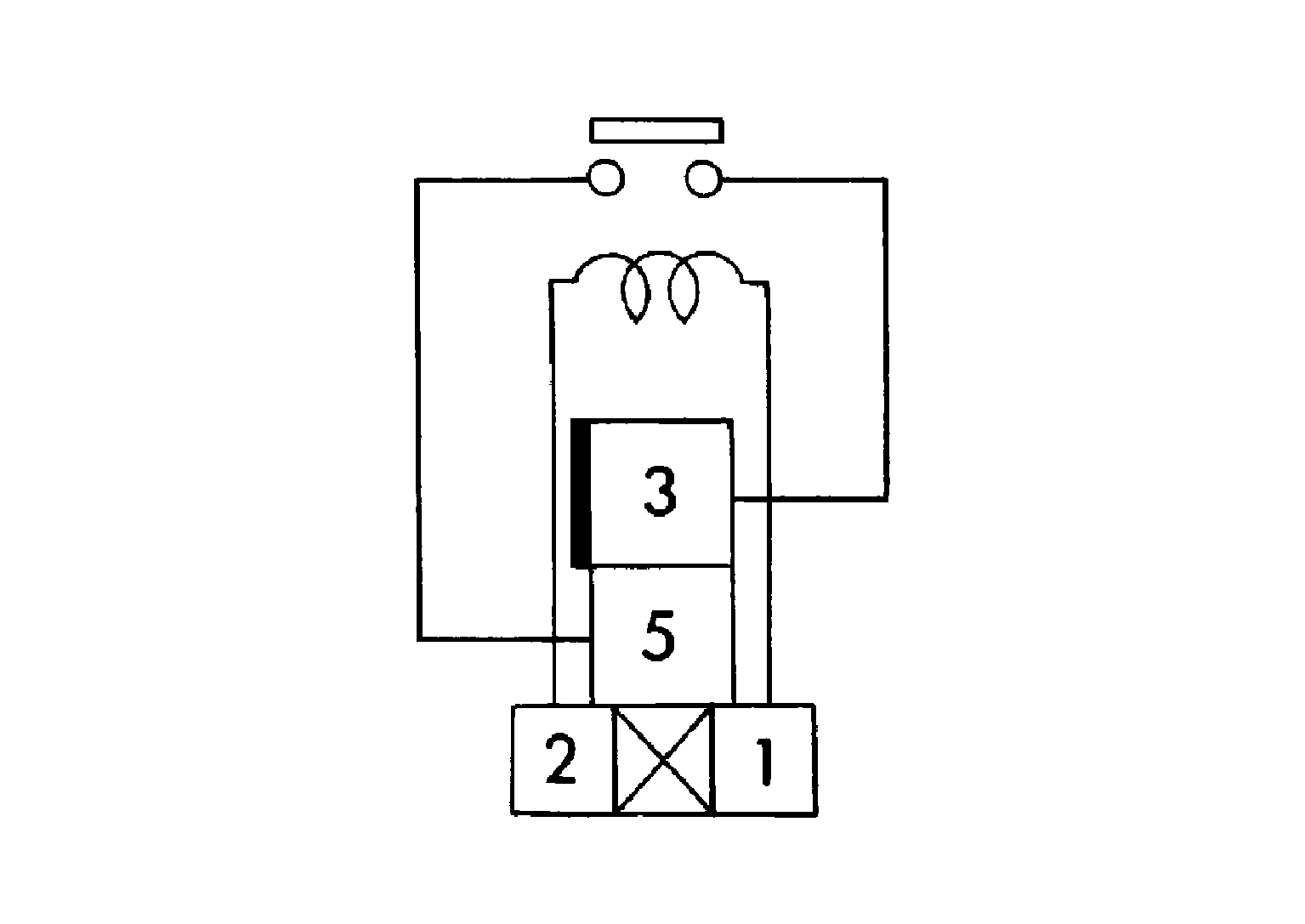

Check continuity between front blower motor relay terminals 3 and 5 when voltage is supplied between terminals 1 and 2.

Courtesy of NISSAN NORTH AMERICA, INC.

Terminals		Voltage	Continuity
3	5	ON	Yes
		OFF	No

Is the inspection result normal?

YES

Inspection End.

Replace front blower motor relay.
