Vacuum Hose Drawing

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

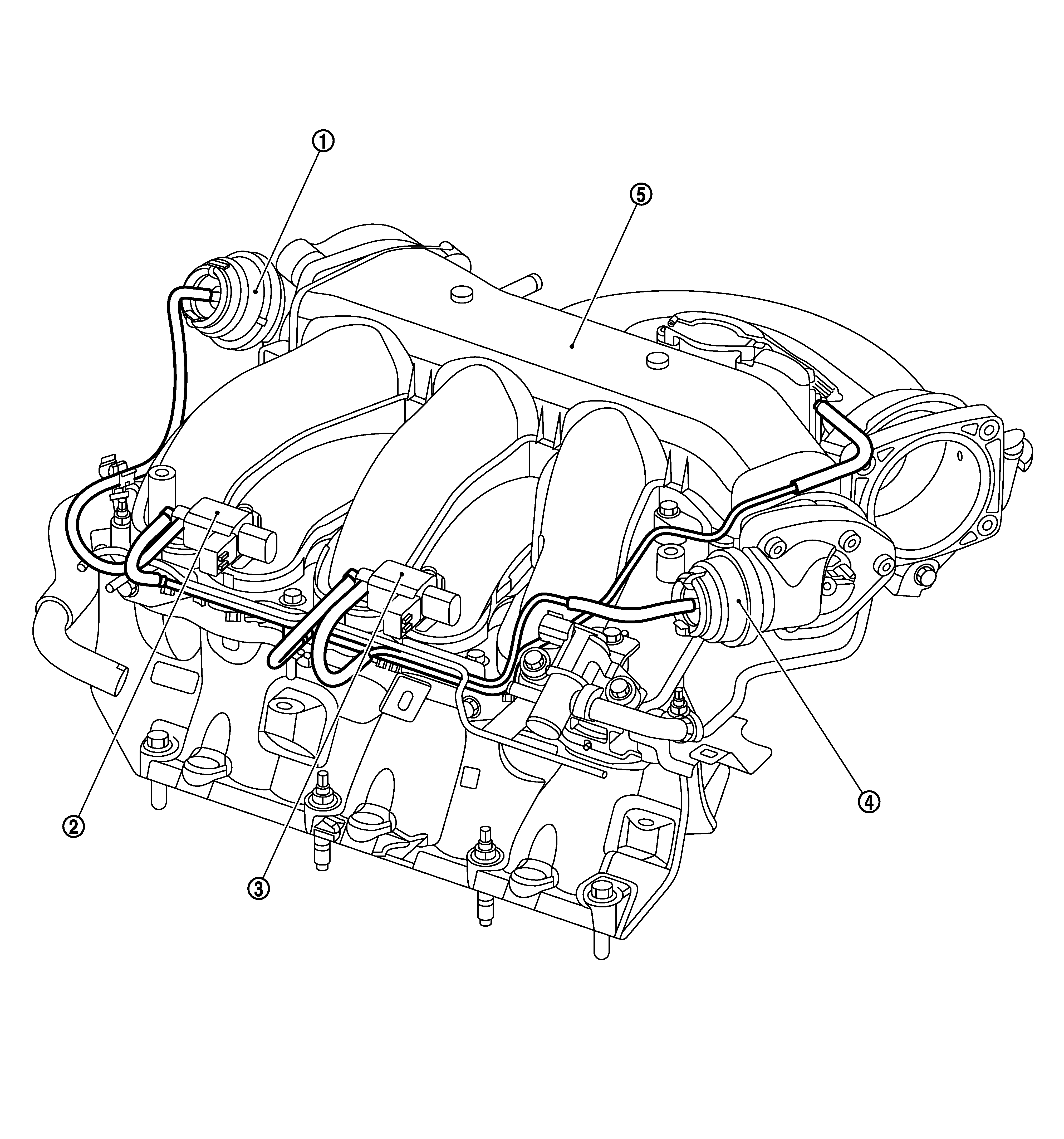

GNSJMBIA0172Z-172Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Power valve actuator 1

SYMBOL

VIAS control solenoid valve 1

SYMBOL

VIAS control solenoid valve 2

SYMBOL

Power valve actuator 2

SYMBOL

Intake manifold collector
