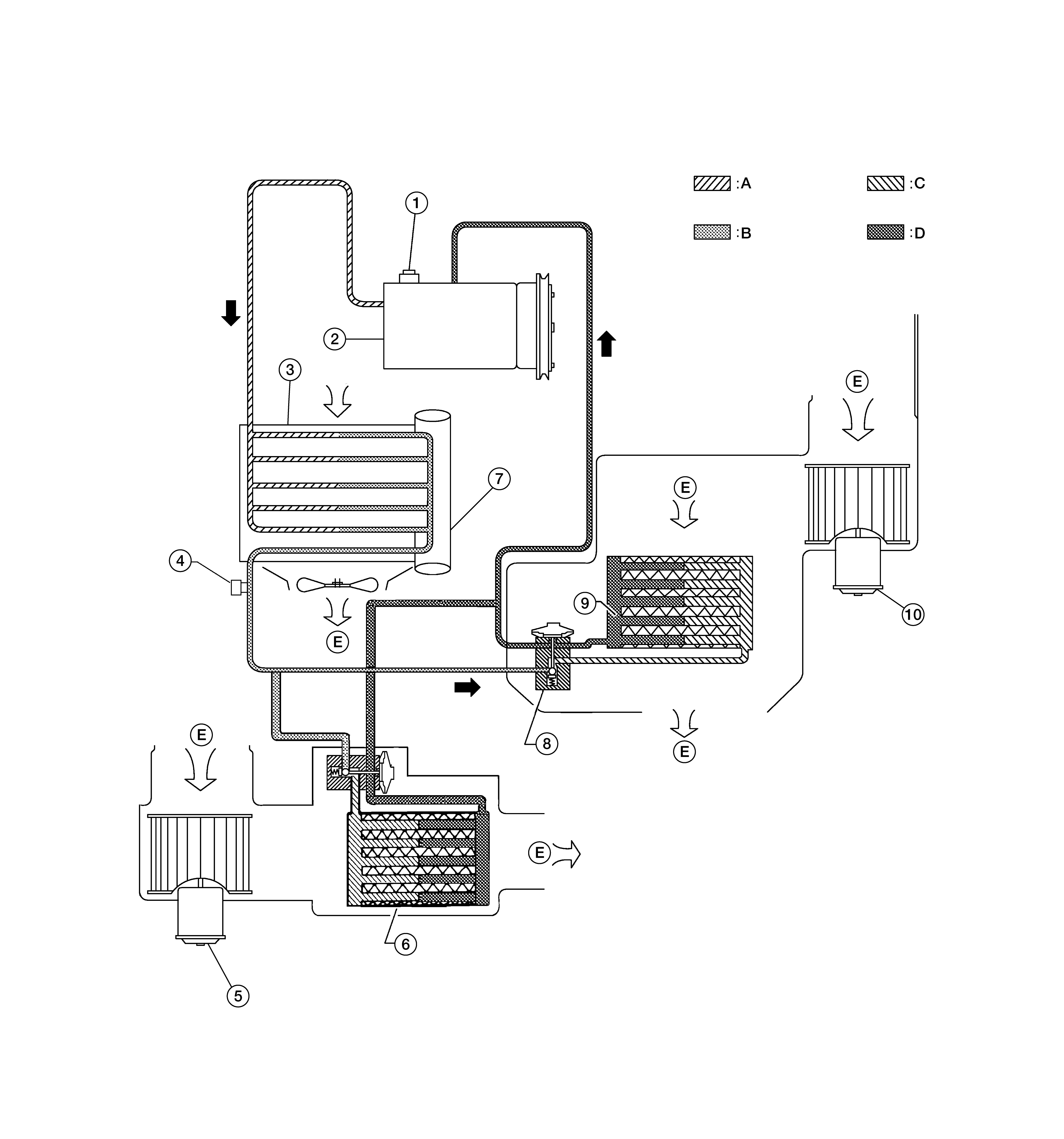

System Diagram
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Pressure relief valve |
2. |
Compressor |
3. |
Condenser |
|
4. |
Refrigerant pressure sensor |
5. |
Front blower motor |
6. |
Front evaporator and expansion valve assembly |
|
7. |
Liquid tank |
8. |
Rear expansion valve (for Mexico) |
9. |
Rear evaporator (for Mexico) |
|
10. |
Rear blower motor (for Mexico) |
A. |
High-pressure gas |
B. |
High-pressure liquid |
|
C. |
Low-pressure liquid |
D. |
Low-pressure gas |
E. |
Outside air |
