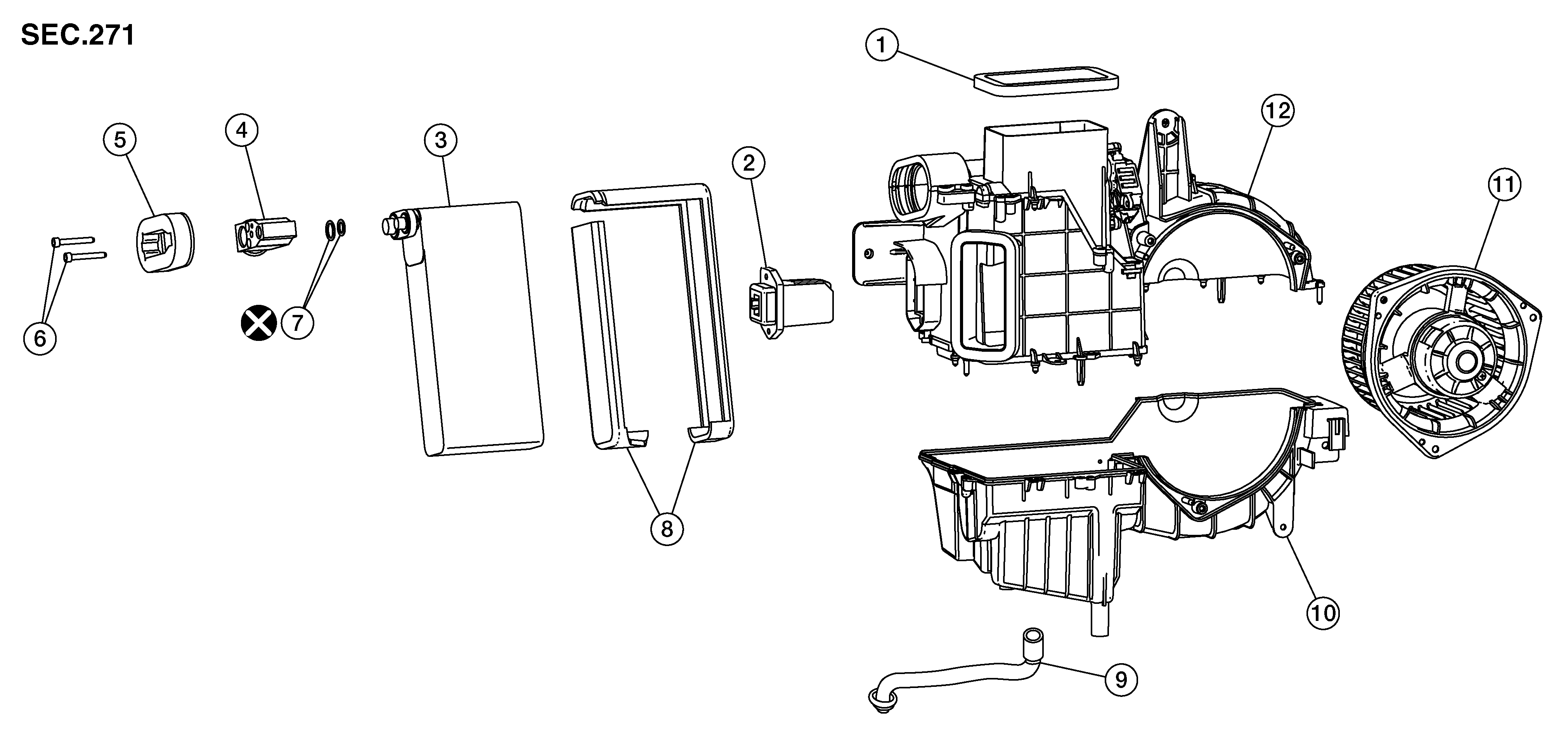

Exploded View: Overview
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear ventilator duct upper seal |
2. |
Rear blower motor resistor 2 |
3. |
Rear evaporator |
|
4. |
Rear expansion valve |
5. |
Rear expansion valve grommet |
6. |
Rear expansion valve bolts |
|
7. |
O-ring |
8. |
Rear evaporator seal |
9. |
Rear drain hose |
|
10. |
Rear cooling unit lower housing |
11. |
Rear blower motor 2 |
12. |
Rear cooling unit upper housing |
