Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge the refrigerant. Refer to Recycle Refrigerant .
  2. Remove the front air duct. Refer to Removal and Installation .
  3. Remove the front bumper fascia. Refer to Removal and Installation .
  4. Remove the hood lock assembly. Refer to Removal and Installation .
  5. Remove front combination lamps. Refer to Removal and Installation .
  6. Disconnect the harness connector from the refrigerant pressure sensor.

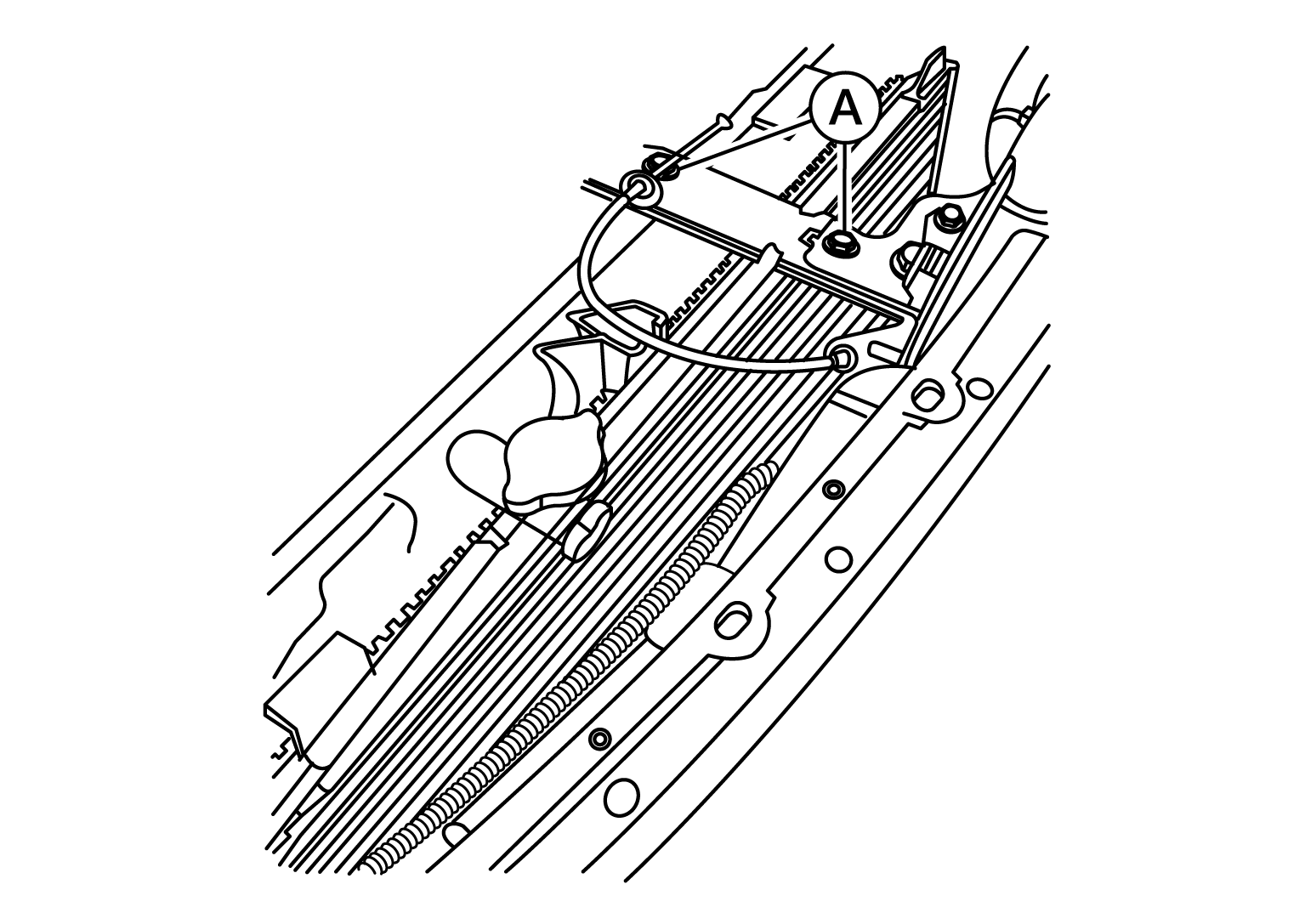

  7. Remove the radiator core support center brace bolts (A) then remove the radiator core support center brace.
    GNSDB111649Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove the bolt that retains the condenser pipe assembly to the condenser, then separate the condenser pipe assembly from the condenser.
    CAUTION: Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
  9. Remove the condenser bracket bolts.
  10. Remove the condenser.
  11. Remove the refrigerant pressure sensor as necessary. Refer to Removal and Installation .
