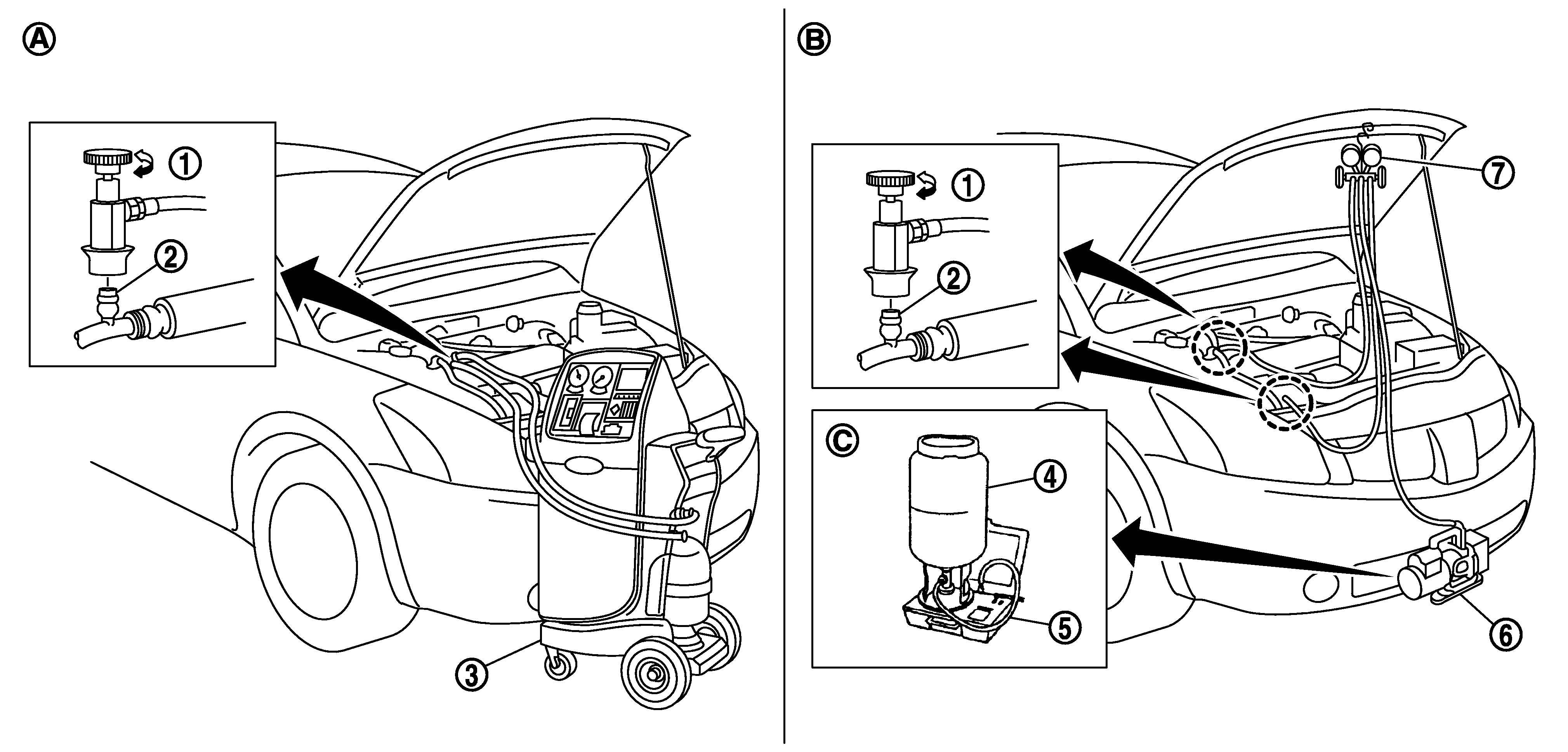

Connection Of Service Tools And Equipment
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Shut-off valve
|
2.
|
A/C service valve
|
3.
|
Recovery/recycling/recharging equipment
|
|
4.
|
Refrigerant container (HFC-134a)
|
5.
|
Weight scale
|
6.
|
Vacuum pump
|
|
7.
|
Manifold gauge set
|
|
A.
|
Preferred (best) method
|
B.
|
Alternative method
|
C.
|
For charging
|
