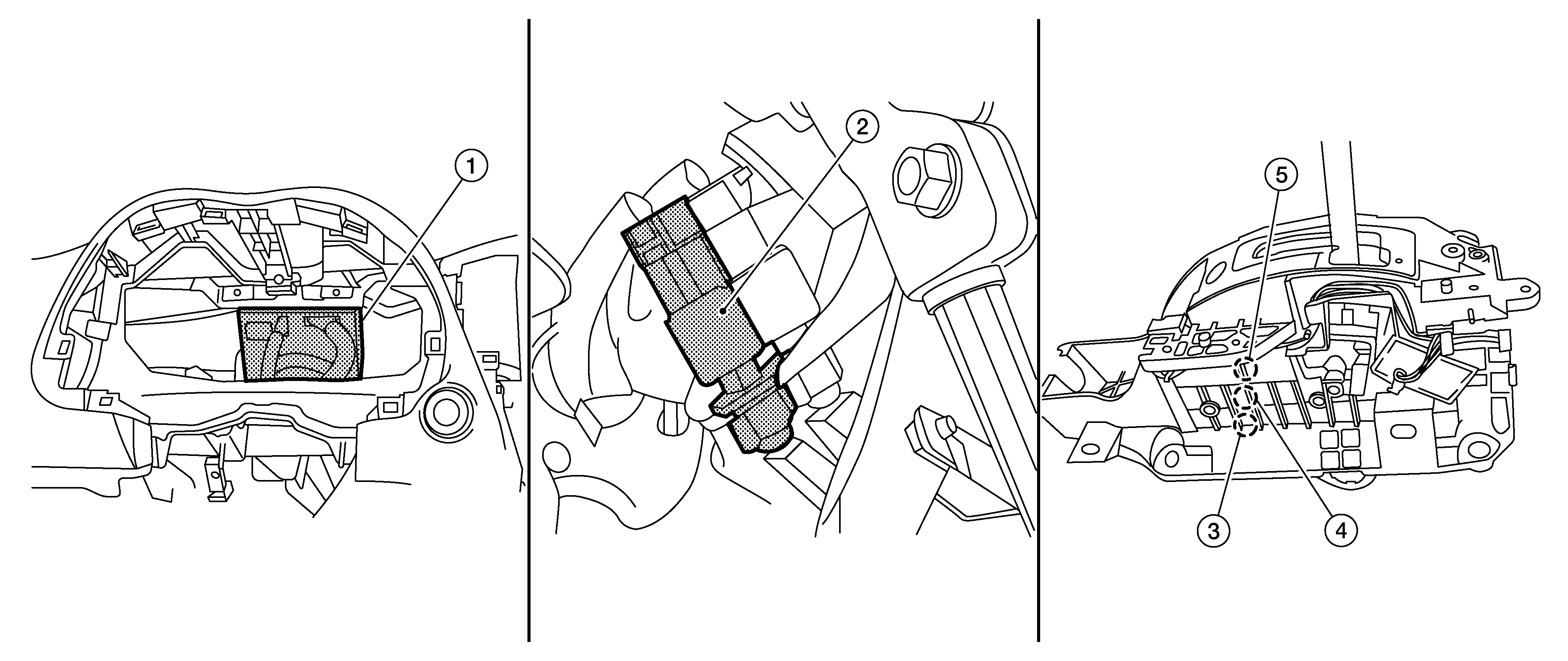

Component Parts Location: Notes
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
BCM (view with combination meter removed)
|
2.
|
Stop lamp switch
|
3.
|
Shift lock release button (view with center console removed)
|
|
4.
|
Shift lock solenoid (view with center console removed)
|
5.
|
Park position switch (view with center console removed)
|
