Component Parts Location

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

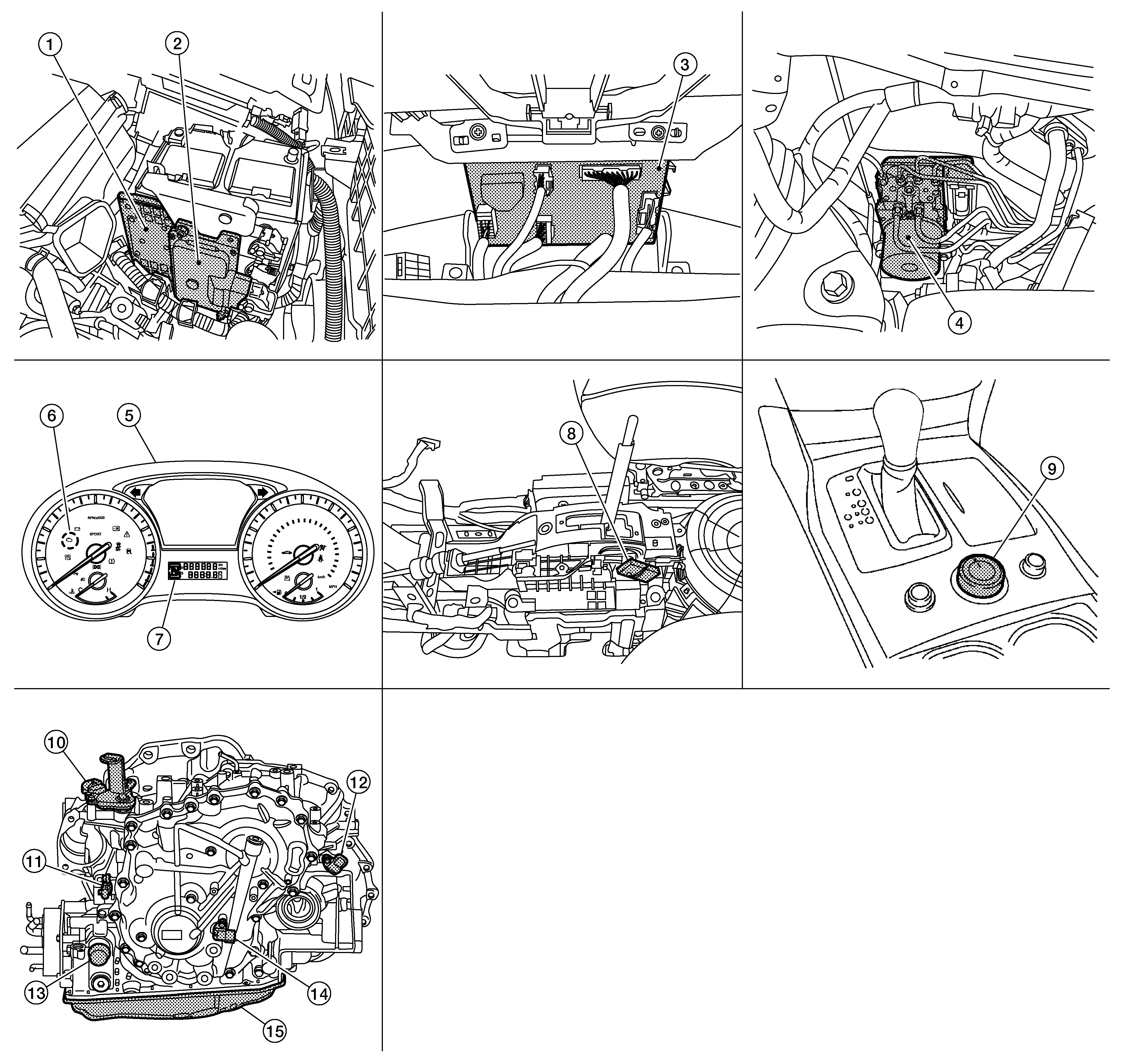

No.	Component		Function
	ECM		Mainly transmits the following signal to TCM via CAN communication. Engine and CVT integrated control signal NOTE: General term for the communication (torque-down permission, torque down request, etc.) exchanged between the ECM and TCM. Engine speed signal Engine coolant temperature signal Accelerator pedal position signal Closed throttle position signal Mainly receives the following signals from TCM via CAN communication. Malfunction indicator lamp signal
	TCM		TCM
	BCM (view with combination meter removed)		Mainly transmits the following signal to TCM via CAN communication Stop lamp switch signal
	ABS actuator and electronic unit (control unit)		Mainly transmits the following signal to TCM via CAN communication Vehicle speed signal ABS operation signal TCS operation signal VDC operation signal Decel G signal
	Combination meter		Mainly transmits the following signal to TCM via CAN communication Manual mode signal Non-manual mode signal Manual mode shift up signal Manual mode shift down signal Mainly receives the following signals from TCM via CAN communication. Shift position signal Manual mode shift refusal signal
	Malfunction indicator lamp (MIL)		Malfunction Indicator Lamp (MIL)
	Shift position indicator		Shift Position Indicator
	Manual mode switch		Manual Mode Switch
	Drive mode select switch		Drive Mode Select Switch
	Transmission range switch		Transmission Range Switch
	Input speed sensor		Input Speed Sensor
	Output speed sensor		Output Speed Sensor
	CVT unit connector		--
	Primary speed sensor		Primary Speed Sensor
	Control valve	CVT fluid temperature sensor*	CVT Fluid Temperature Sensor
		Primary pressure sensor*	Primary Pressure Sensor
		Secondary pressure sensor*	Secondary Pressure Sensor
		Line pressure solenoid valve*	Line Pressure Solenoid Valve
		Primary pressure solenoid valve*	Primary Pressure Solenoid Valve
		Secondary pressure solenoid valve*	Secondary Pressure Solenoid Valve
		Torque converter clutch solenoid valve*	Torque Converter Clutch Solenoid Valve
		Select solenoid valve*	Select Solenoid Valve

These components are included in control valve assembly.
