Removal and Installation: Installation
Installation is in the reverse order of removal.
- Do not reuse hose clamp.
- Hose clamp should not interfere with the spool or bulge.
*Refer to the following when installing CVT water hose.
|
Water hose (1) |
Installation side tube (2) |
Direction of paint mark |
Hose insertion depth |
|
CVT water hose A |
Water outlet |
Upward |
End reaches the 2-stage bulge. |
|
CVT oil warmer |
Frontward |
||
|
CVT water hose B |
CVT oil warmer |
Frontward |
|
|
Heater thermostat |
Align with the mark on the heater thermostat side |
||
|
CVT water hose C |
Heater thermostat |
Align with the mark on the heater thermostat side |
End reaches the expansion part. |
|
Water outlet |
Upward |
End reaches the 2-stage bulge. |

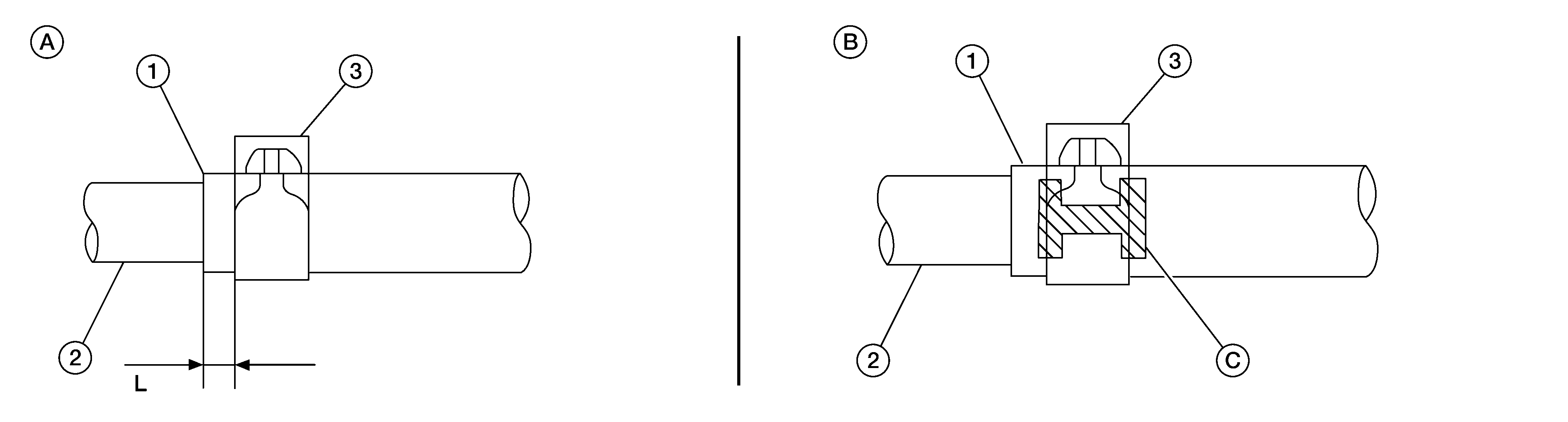

*Refer to the following when installing hose clamps.
|
CVT Water hose (1) |
Installation side tube (2) |
Hose clamp (3) |
|
|
Direction of tab |
Clamping position * |
||
|
CVT Water hose A |
Water outlet |
Downward and 45 deg. rightward |
A: 5-7 mm (0.20 - 0.28 in) (L) from hose end. |
|
CVT oil warmer |
Downward |
||
|
CVT Water hose B |
CVT oil warmer |
Forward and 45 deg. downward |
B: Align with the paint mark (C) as shown. |
|
Heater thermostat |
Downward |
||
|
CVT Water hose C |
Heater thermostat |
Downward |
|
|
Water outlet |
Upward |
||
