Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. Refer to Exploded View .
Remove the fender protector side cover (LH). Refer to Exploded View .

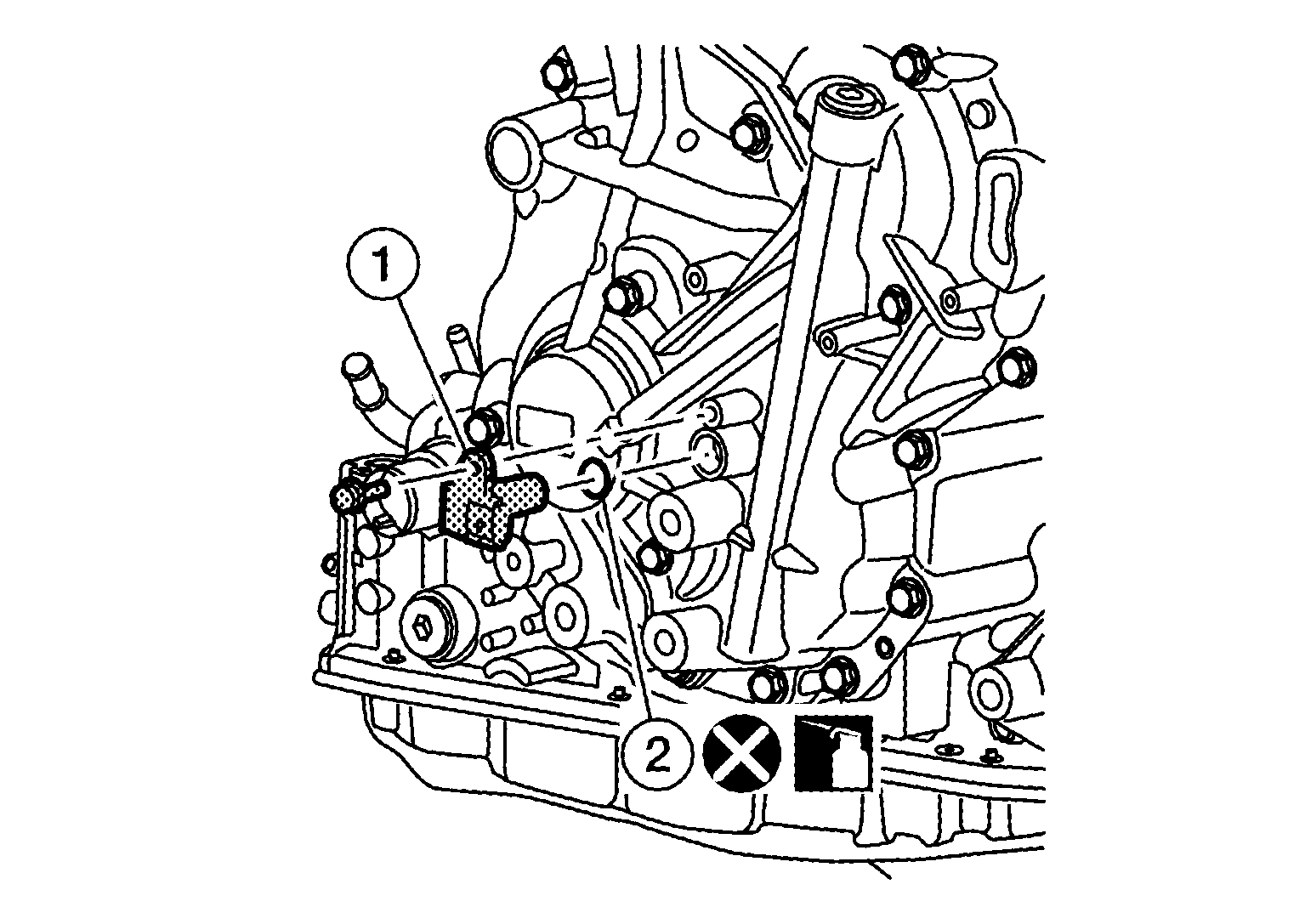

Disconnect the harness connector from primary speed sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the primary speed sensor bolt, then the primary speed sensor (1).
Remove the O-ring (2) from the primary speed sensor (1).
CAUTION: Do not reuse O-ring.
