Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal. Refer to Exploded View .

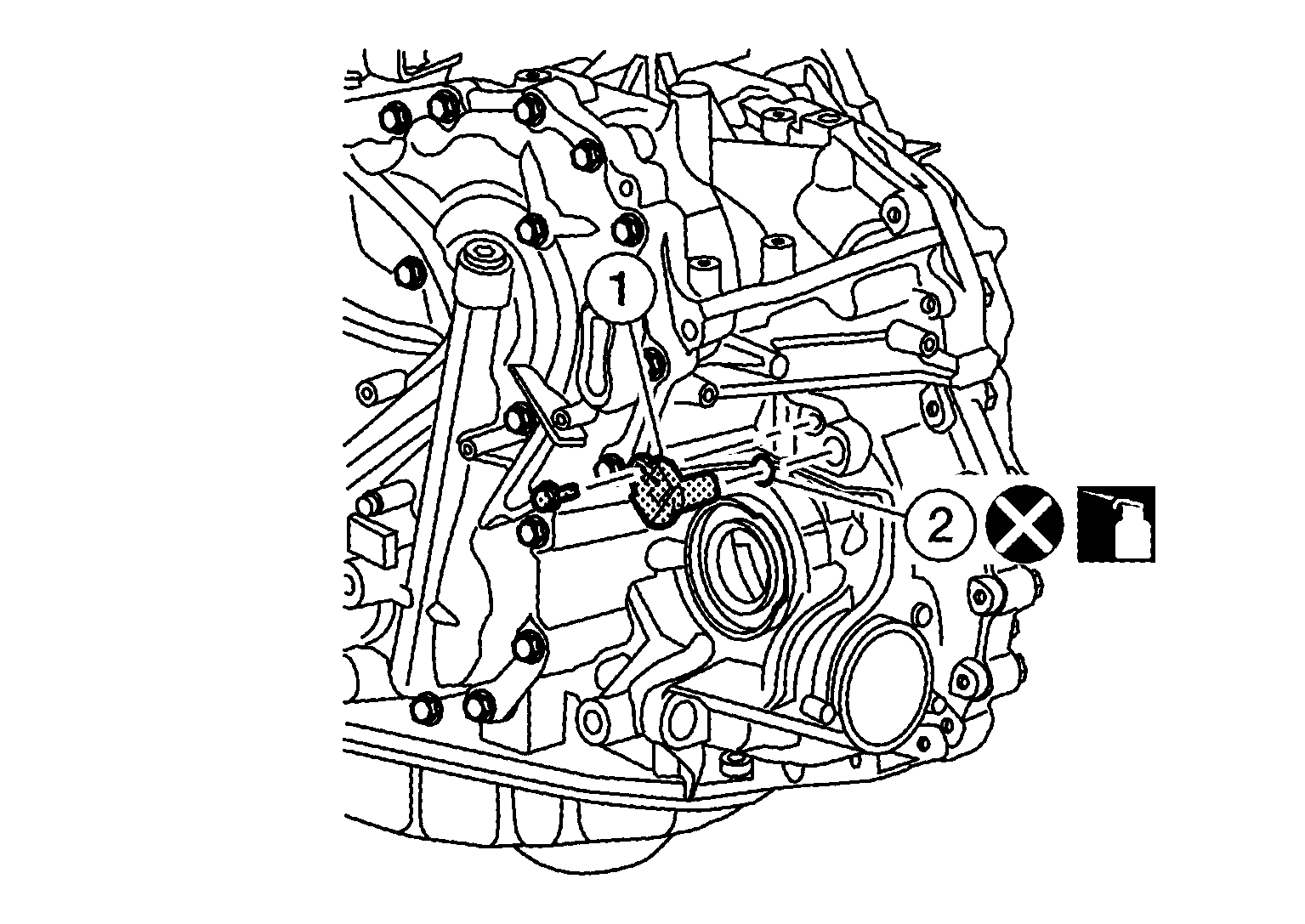

- Disconnect the harness connector from output speed sensor (1).
- Remove the output speed sensor bolt, then the output speed sensor (1).
- Remove the O-ring (2) from the output speed sensor (1).CAUTION: Do not reuse O-ring.
