Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery tray. Refer to Removal and Installation .
- Remove the starter motor. Refer to Removal and Installation .

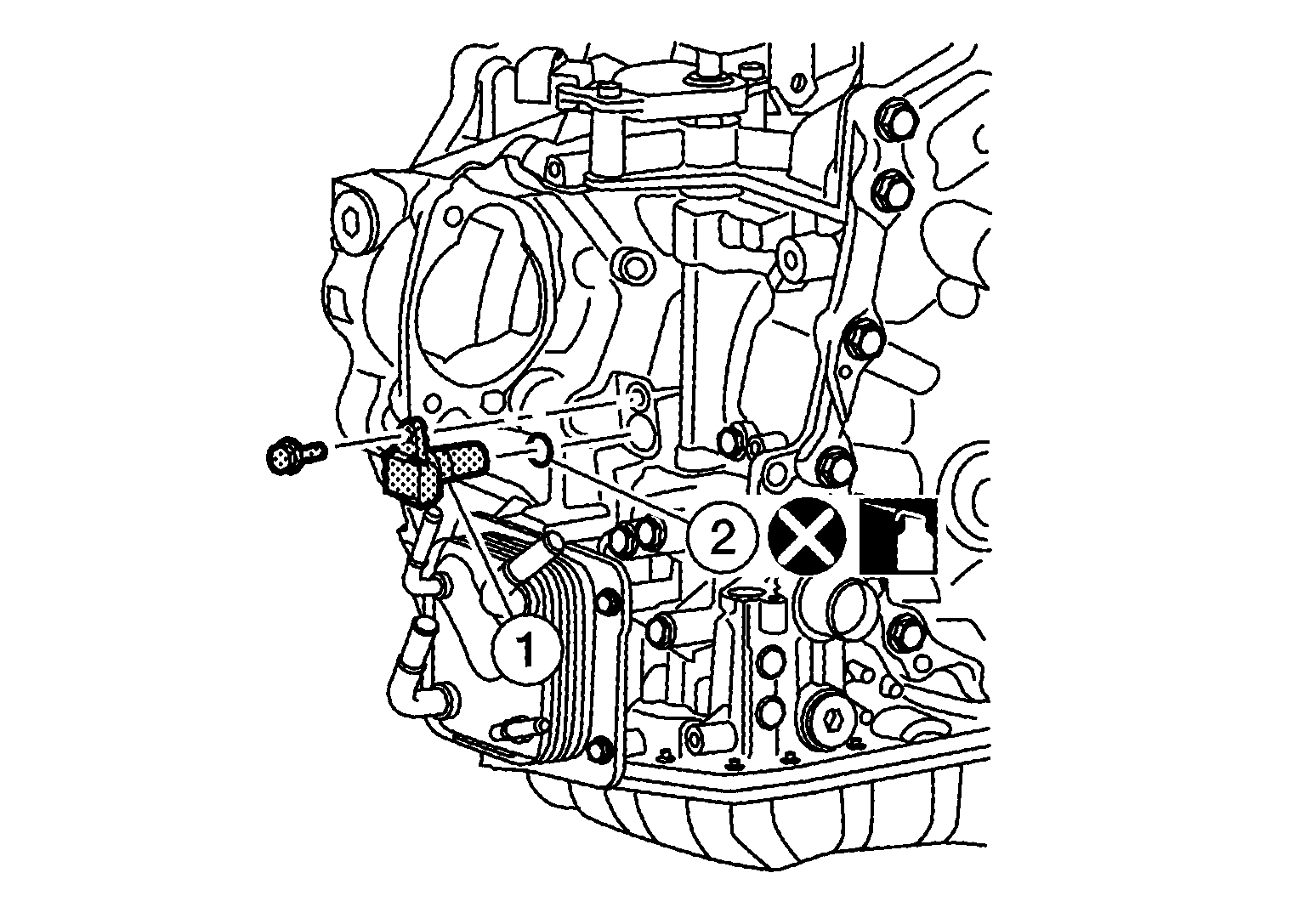

- Disconnect the harness connector from the input speed sensor (1).
- Remove the input speed sensor bolt, then the input speed sensor (1).
- Remove the O-ring (2) from the input speed sensor (1).CAUTION: Do not reuse O-ring.
