Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative terminal. Refer to Removal and Installation .
Remove drain plug from oil pan and then drain the CVT fluid.
Remove drain plug gasket.
CAUTION: Do not reuse drain plug gasket.
Remove the oil pan bolts, and then remove the oil pan and oil pan gasket.
CAUTION: Do not reuse oil pan gasket.
Remove the magnets from the oil pan.
NOTE: Be sure to note the location of the magnets in the oil pan before removal.

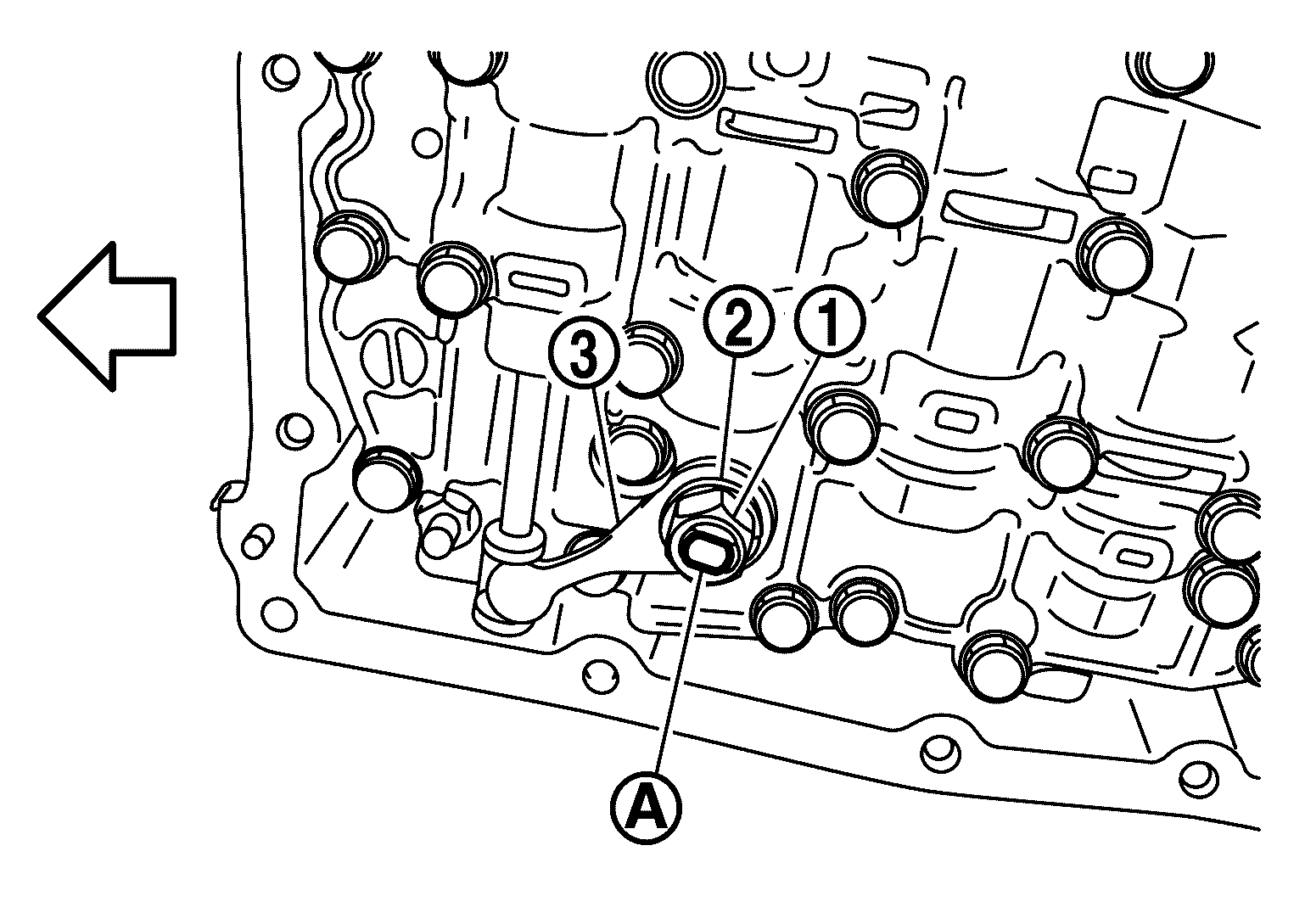

Remove the lock nut (1), spring washer (2), and manual plate (3) from manual shaft (A).

Courtesy of NISSAN NORTH AMERICA, INC.

: Front
Remove the oil strainer assembly bolts and remove the oil strainer assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

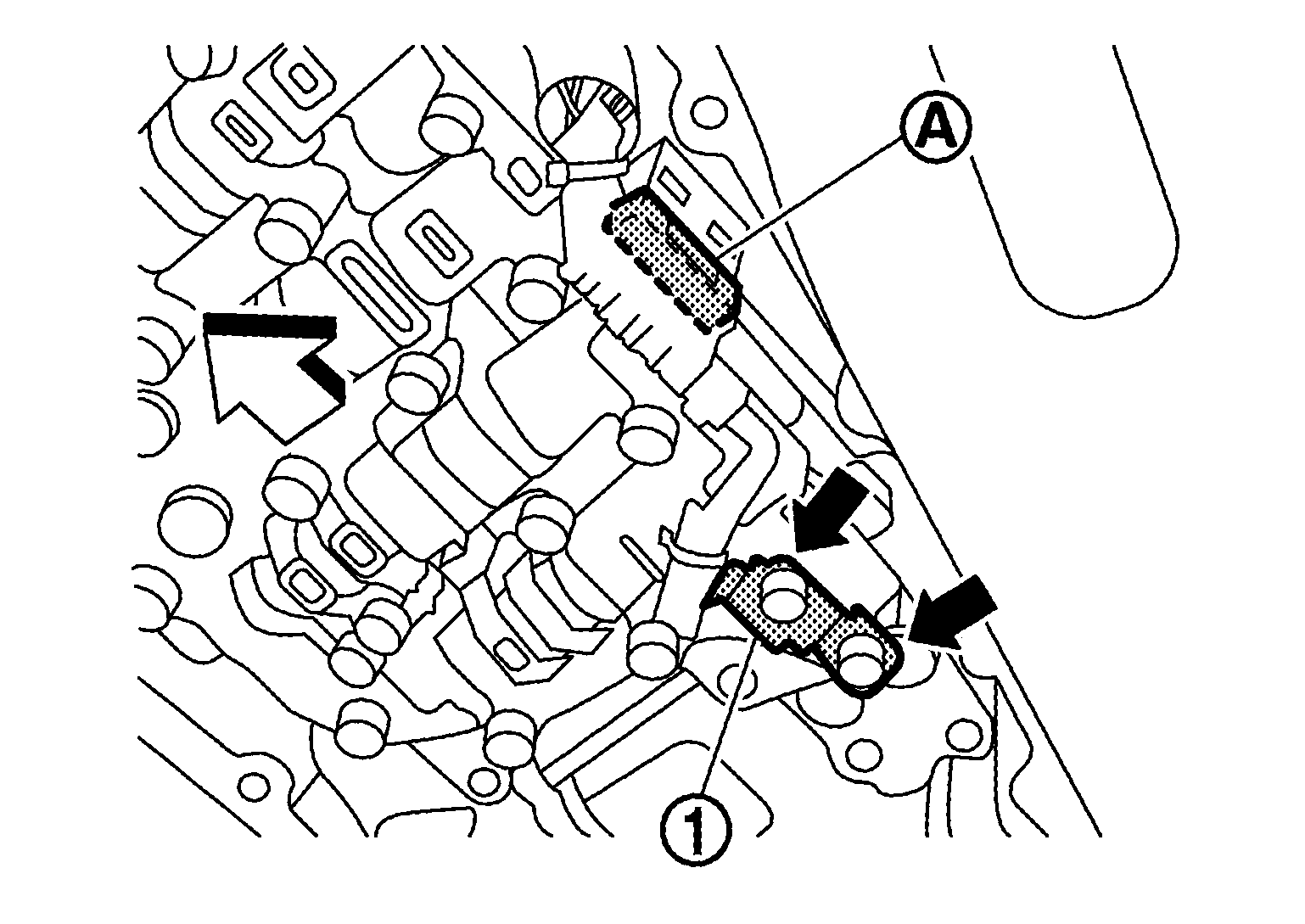

Remove CVT fluid temperature sensor bracket (1).

Courtesy of NISSAN NORTH AMERICA, INC.

	: Bolt
	: Front

Disconnect control valve harness connector (A).
Remove the control valve bolts (A) and (B), and then remove the control valve from the transaxle case.

Courtesy of NISSAN NORTH AMERICA, INC.

: Front

CAUTION: Do not drop the control valve, ratio control valve and manual shaft.

NOTE: Control valve bolt heads may be marked with a number "7". Bolts marked as "7" are the bolts that need to be removed in order to remove the control valve.
Remove the lip seal (1) from the transaxle case.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse lip seal.

: Front
