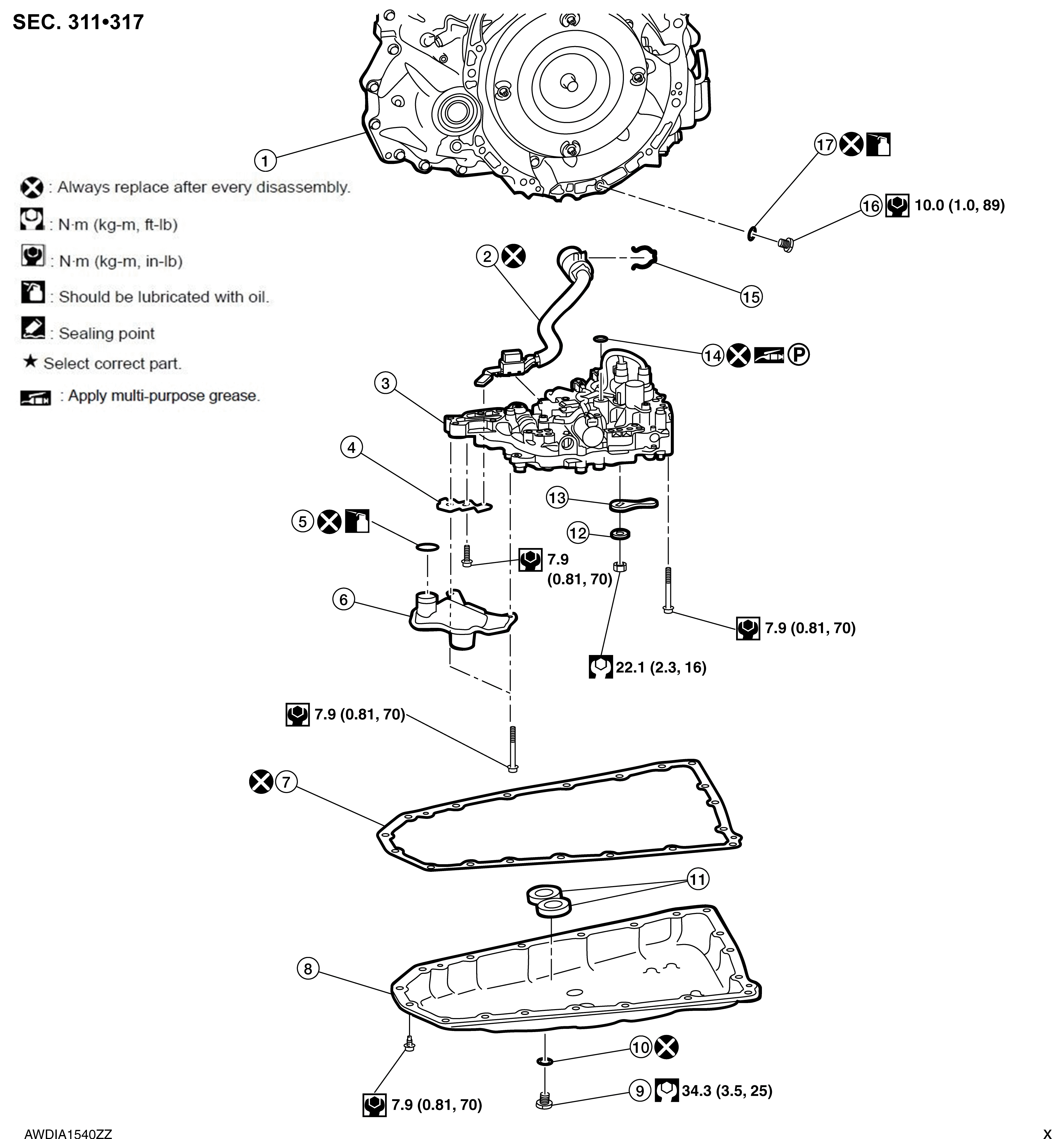

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Transaxle assembly |
2. |
Terminal cord assembly |
3. |
Control valve |
|
4. |
Bracket |
5. |
O-ring |
6. |
Oil strainer assembly |
|
7. |
Oil pan gasket |
8. |
Oil pan |
9. |
Drain plug |
|
10. |
Drain plug gasket |
11. |
Magnet |
12. |
Spring washer |
|
13. |
Manual plate |
14. |
Lip seal |
15. |
Snap ring |
|
16. |
Overflow plug |
17. |
O-ring |
||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
|
|
: Apply petroleum jelly |
||||
|
|
: Apply CVT fluid |
||||
