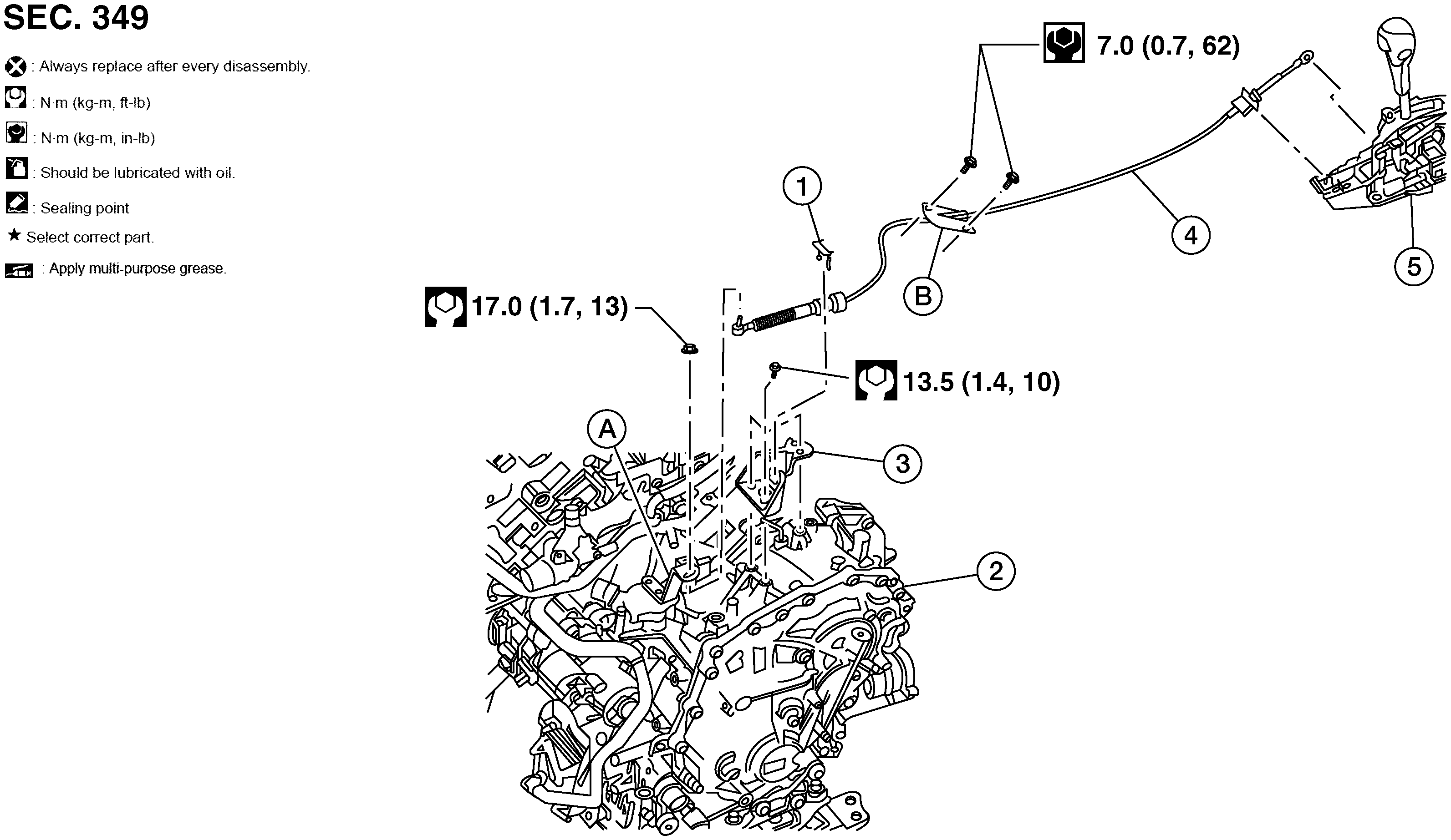

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Bracket B
|
2.
|
Lock plate
|
3.
|
Transaxle assembly
|
|
4.
|
Bracket A
|
5.
|
Control cable
|
6.
|
CVT shift selector assembly
|
|
A:
|
Manual lever
|
B:
|
Grommet
|
