Removal and Installation: Installation
Installation is in the reverse order of removal.
- Do not reuse hose clamps.
- Hose clamps should not interfere with the spool or bulge.
*Refer to the following when installing CVT fluid cooler hoses
|
Hose name (1) |
Installation side tube (2) |
Direction of paint mark |
Hose insertion depth (L) |
|
CVT fluid cooler hose A |
CVT oil warmer |
Downward |

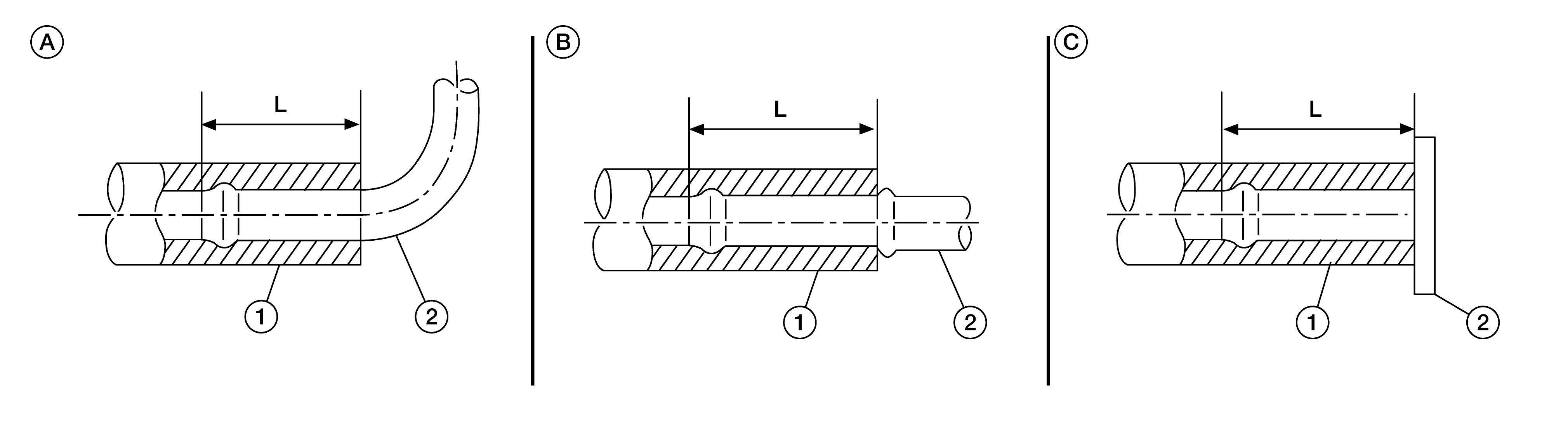

B: End reaches the 2-step bulge. |
|
Connector tube |
Upward |
B: End reaches the spool. |
|
|
CVT fluid cooler hose B |
Connector tube |
Upward |
|
|
Radiator |
Upward |
A: End reaches the radius curve end. |
|
|
CVT fluid cooler hose C |
Radiator |
Downward |
C: Insert the hose until hose touches the radiator. |
|
CVT fluid cooler |
Leftward |
A: End reaches the radius curve end. |
|
|
CVT fluid cooler hose D |
CVT fluid cooler |
Leftward |
|
|
CVT oil warmer |
Frontward |
B: End reaches the 2-step bulge |
*Refer to the following when installing CVT fluid cooler hoses
|
Hose name (1) |
Installation side tube (2) |
Hose clamp (3) |
|
|
Direction of tab |
Clamping position |
||
|
CVT fluid cooler hose A |
CVT oil warmer |
Downward |
B: Align with the paint mark (C) as shown in the figure. |
|
Connector tube |
Downward and 35 deg. backward |
A: 3 - 7 mm (0.12 - 0.28 in) (L) from hose end |
|
|
CVT fluid cooler hose B |
Connector tube |
Downward and 35 deg. backward |
|
|
Radiator |
Upward |
||
|
CVT fluid cooler hose C |
Radiator |
Downward |
|
|
CVT fluid cooler |
Leftward |
B: Align with the paint mark (C) as shown in the figure. |
|
|
CVT fluid cooler hose D |
CVT fluid cooler |
Leftward |
|
|
CVT oil warmer |
Frontward |
||
