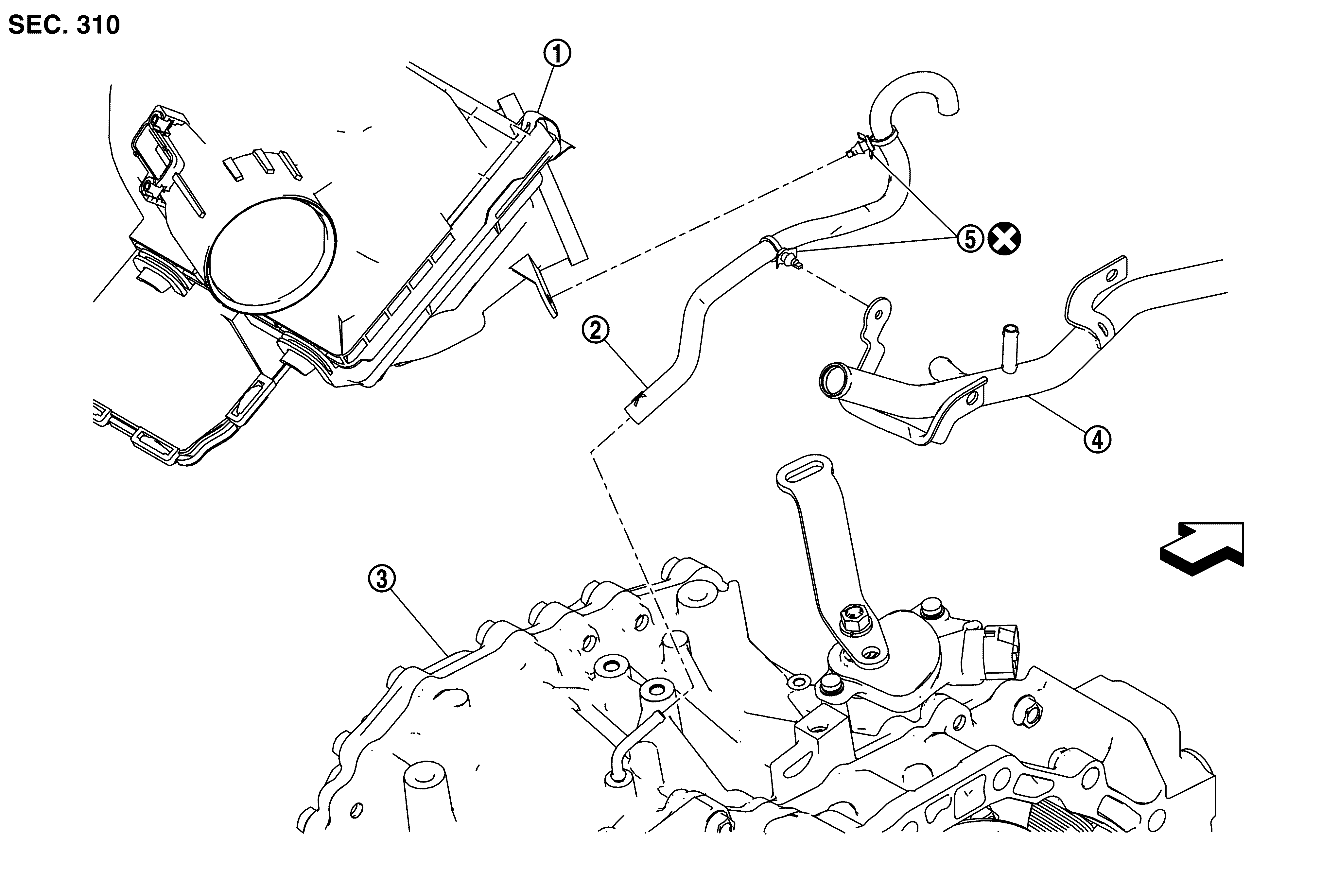

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Air cleaner case	Air breather hose	Transaxle assembly
Heater pipe	Clip
: Vehicle front
: Always replace after every disassembly.
