Front Controller Operation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

A/C Display

Rear air conditioning system state is indicated on the display control unit.
When REAR switch is pressed while air conditioning system is in the ON position, the display control unit changes to state indication display (rear control mode) of rear air conditioning system.

Display screen

Courtesy of NISSAN NORTH AMERICA, INC.

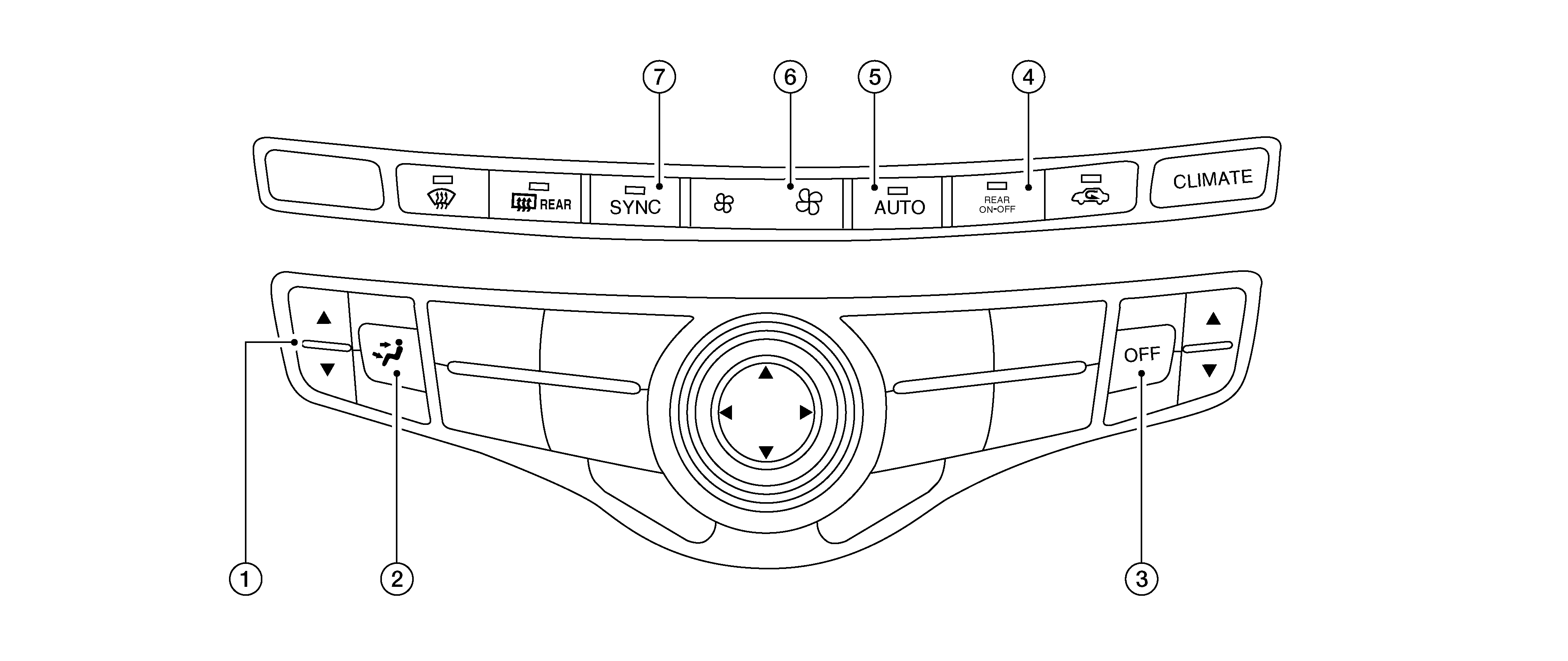

Controller (Multifunction switch)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Temperature control (Driver side)	2.	MODE switch	3.	OFF switch
4.	REAR switch	5.	AUTO switch	6.	Fan switch
7.	SYNC switch

Switch Operation

AUTO switch	Turns the switch indicator lamp and "AUTO" indicator on the display control unit ON, and then rear air conditioning system becomes the following state. Air outlet: Automatic control Blower fan: Automatic control Compressor: ON
Fan switch (UP/DOWN)	Blower fan speed is manually controlled with these switches. Seven speeds are available for manual control (as shown on the display screen). NOTE: When fan switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
MODE switch	Selects air outlet sequentially from VENT => B/L => FOOT => VENT each time. NOTE: When MODE switch is pressed while air conditioning system is in automatic control ("AUTO" is indicated), automatic control is released ("AUTO" turns OFF).
OFF switch	Turns rear air conditioning system OFF. (When rear control mode is ON) When rear air conditioning system turns OFF, air outlet become the automatic control.
REAR switch	Turns the switch indicator lamp and rear control mode on the display control unit ON, and then rear air conditioning system becomes the following state. Air outlet: Automatic control Blower fan: Automatic control Compressor: ON Rear control mode is released when switch is pressed again (rear air conditioning system operates continuously).
Temperature control switch (Driver side)	Setting temperature is selected using this switch within a range between 18 deg.C (60 deg.F or 61 deg.F) and 32 deg.C (89 deg.F or 90 deg.F) at a rate of 0.5 deg.C (1.0 deg.F) per adjustment. Press: Setting temperature increases Press: Setting temperature decreases NOTE: When air conditioning system is OFF, setting temperature can be selected only while air conditioning system status screen [only when MODE switch (driver side) is pressed] is indicated on display.
SNYC switch	When SYNC mode is selected, "SYNC" is indicated on the display. Left, rear and right ventilation temperature separately control changes between ON <=> OFF each time this switch is pressed while blower motor is operated. NOTE: Setting temperature for passenger side and rear is the same as that for driver side when left and right ventilation temperature separately control is OFF. SYNC switch operation is not accepted when DEF mode is ON.
