Operation And Display

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Plasmacluster ^™ ion display

Plasmacluster ^™ control state is indicated on the display control unit.

Plasmacluster ^™ ion display is switched as shown in the figure depending on air flow.

NOTE:

Plasmacluster ^™ ion technology developed by Sharp Corporation is installed in this item.
Plasmacluster ^™ is a trademark of Sharp Corporation.

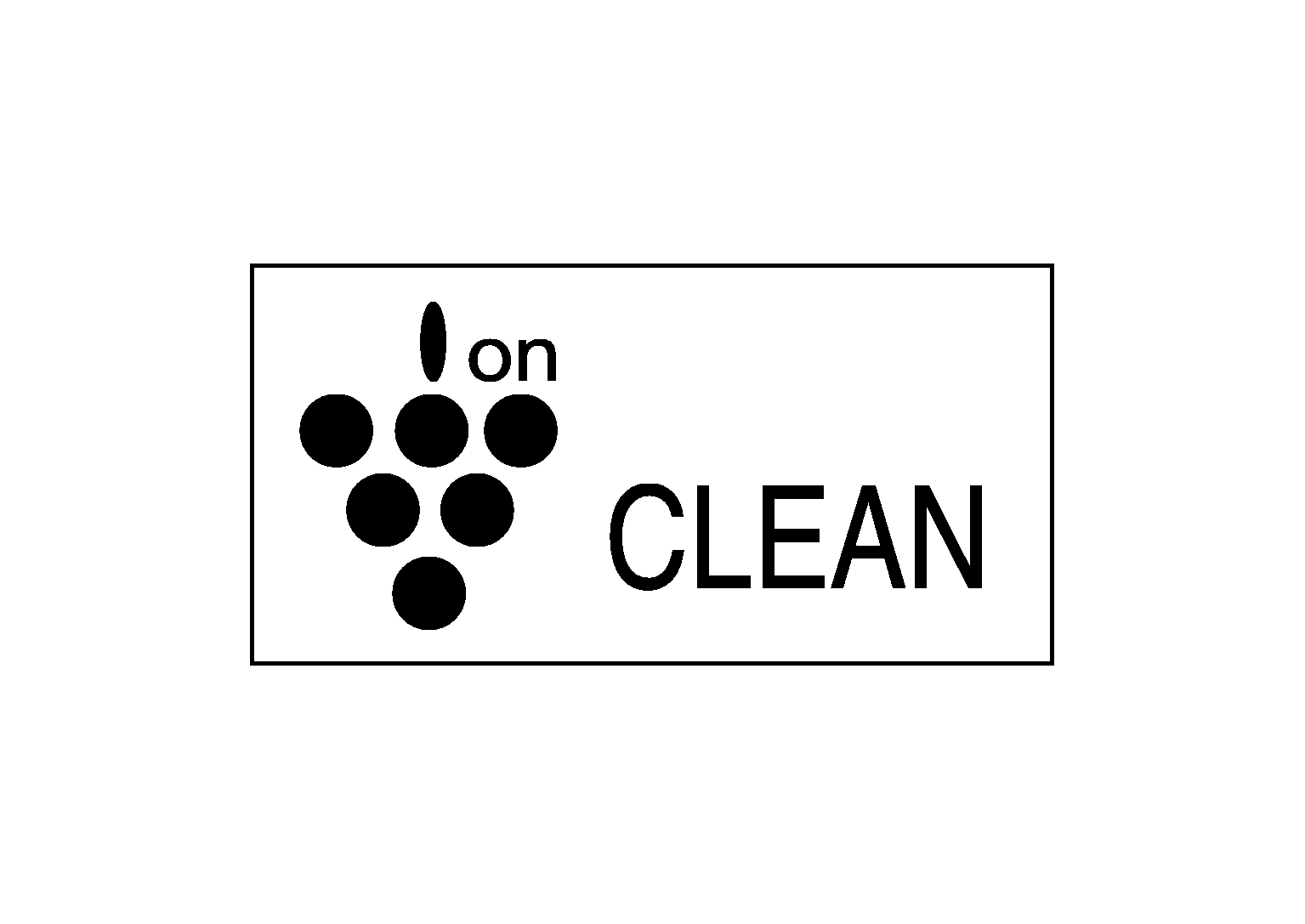

When air flow is small

Courtesy of NISSAN NORTH AMERICA, INC.

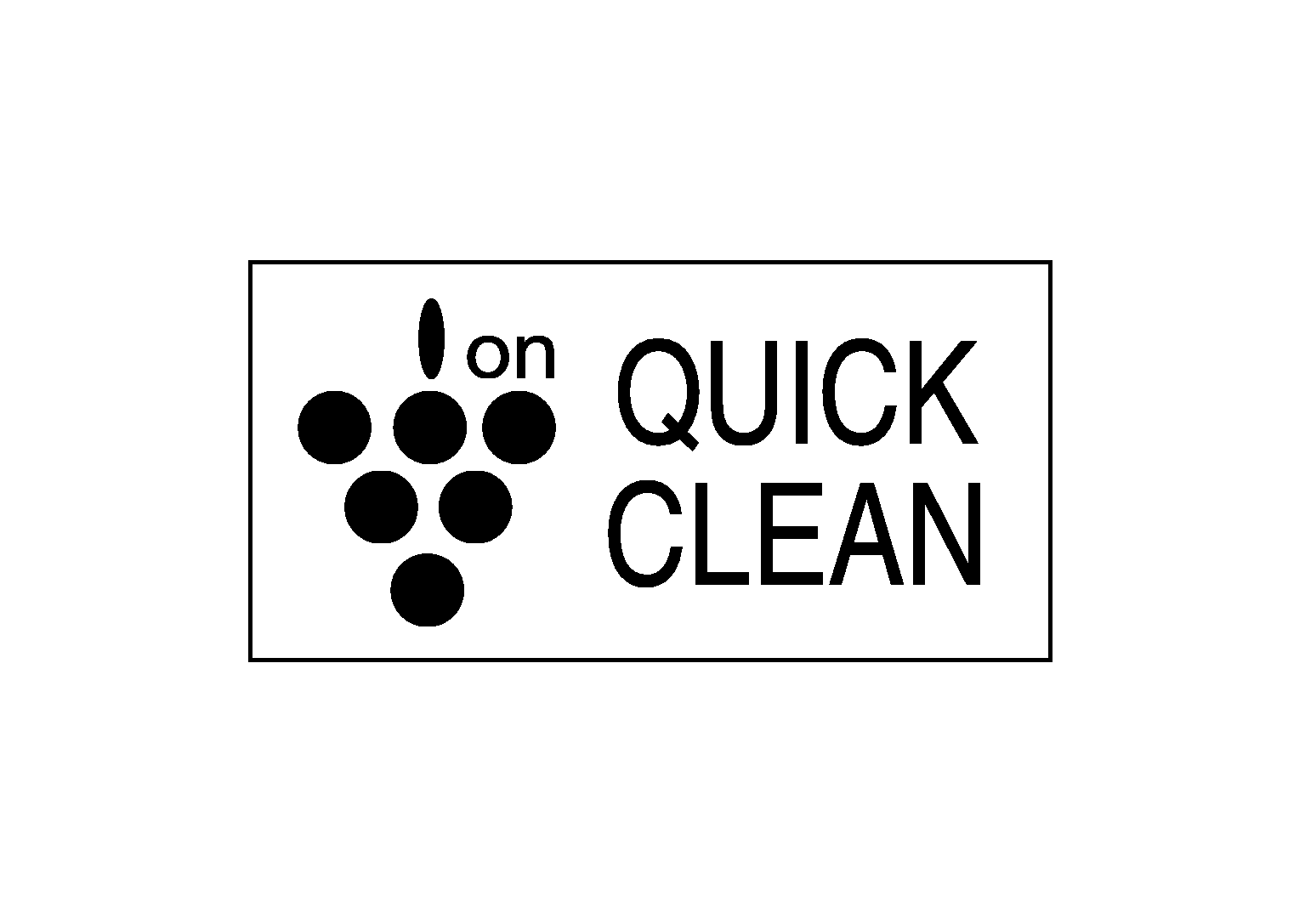

When air flow is large

Courtesy of NISSAN NORTH AMERICA, INC.

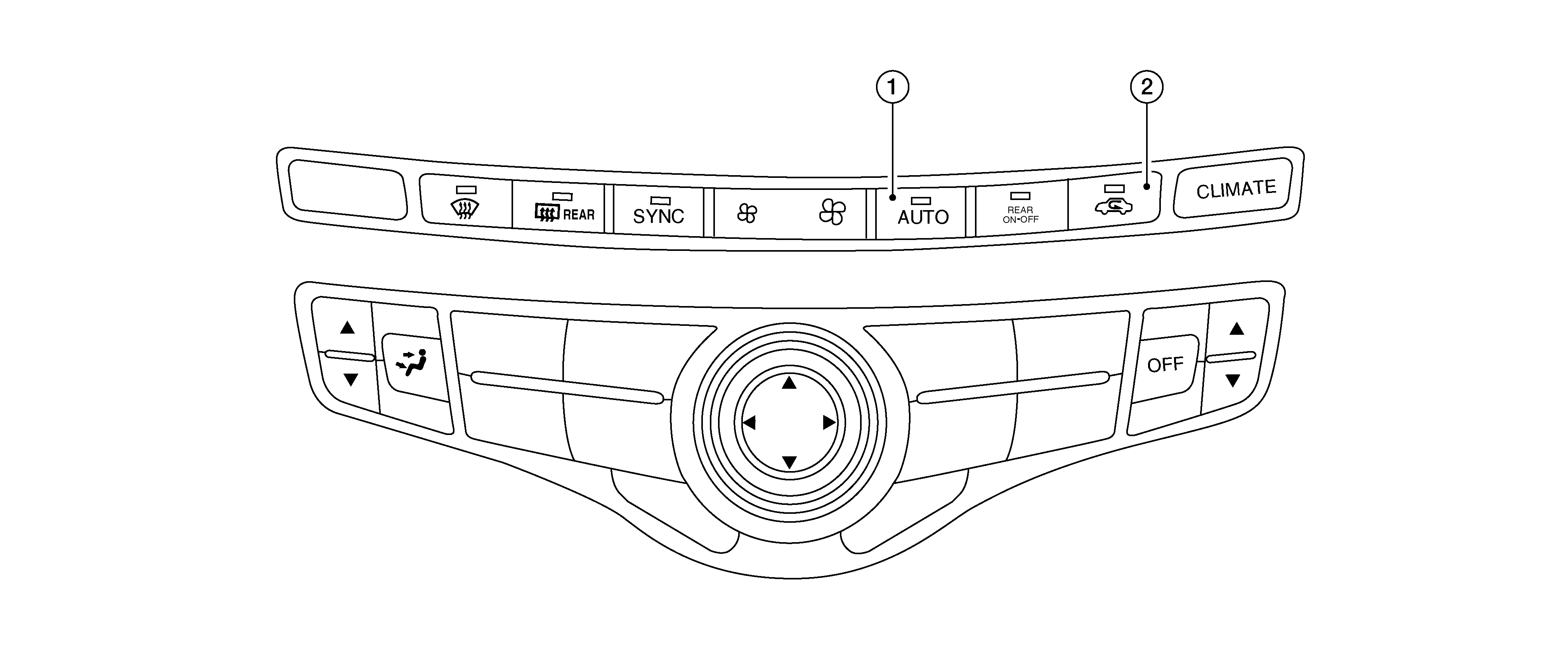

Controller (Multifunction switch)

Courtesy of NISSAN NORTH AMERICA, INC.

Auto switch

Intake switch

Switch name

Function

AUTO switch

Turns the switch indicator lamp and "AUTO" indicator on the display ON, and then front air conditioning system becomes the following state.

Air inlet: Automatic control
Air outlet: Automatic control
Blower fan: Automatic control
Compressor: ON

Intake switch

Automatic intake control (exhaust gas / outside odor detecting mechanism) mode (switch indicator) changes between ON <=> OFF each time when auto intake switch is pressed while front blower motor is activated.
When auto intake switch turns ON, front air conditioning system becomes the following status.
- A/C switch: ON
- Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas / outside odor detecting mechanism).]
When auto intake switch turns ON => OFF, air inlet becomes the fresh air intake.

NOTE:

Interlocking condition of A/C switch can be changed. Refer to Auto Intake Switch Interlocking Movement Change Function .
Auto intake switch does not turn ON during the following status.
- Air outlet: DEF
- Ambient temperature: -2 deg.C (28 deg.F) or less
