Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

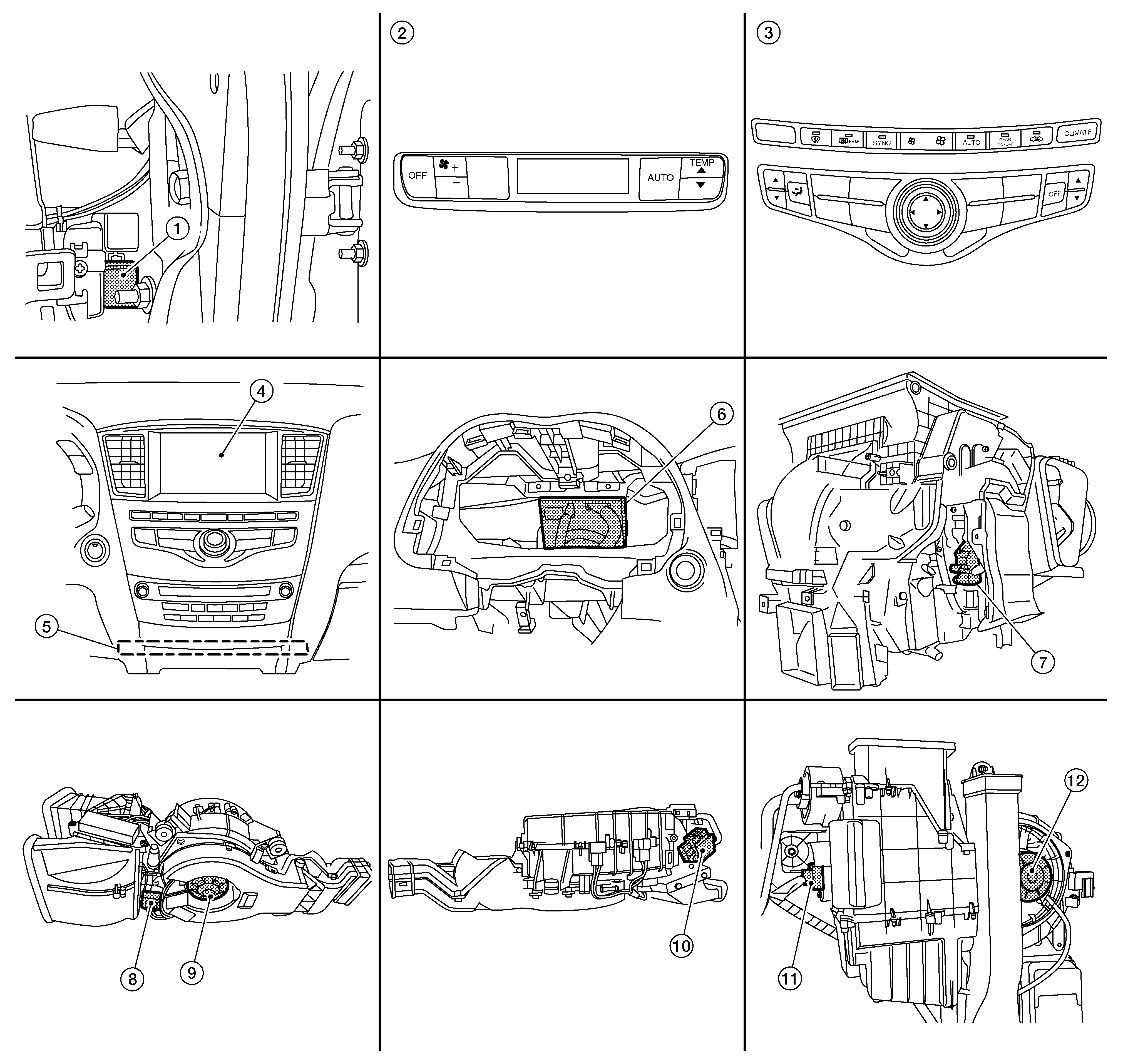

1. |
Rear blower motor relay (view with instrument panel removed) |
2. |
Rear air control |
3. |
Multifunction switch |
|
4. |
Display control unit |
5. |
A/C auto amp. |
6. |
BCM (view with combination meter removed) |
|
7. |
Air mix door motor (rear) (view with front A/C assembly removed from vehicle) |
8. |
Rear blower motor resistor 1 |
9. |
Rear blower motor 1 |
|
10. |
Mode door motor (rear) |
11. |
Rear blower motor resistor 2 (view with luggage side lower finisher RH removed) (if equipped) |
12. |
Rear blower motor 2 (if equipped) |
