Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

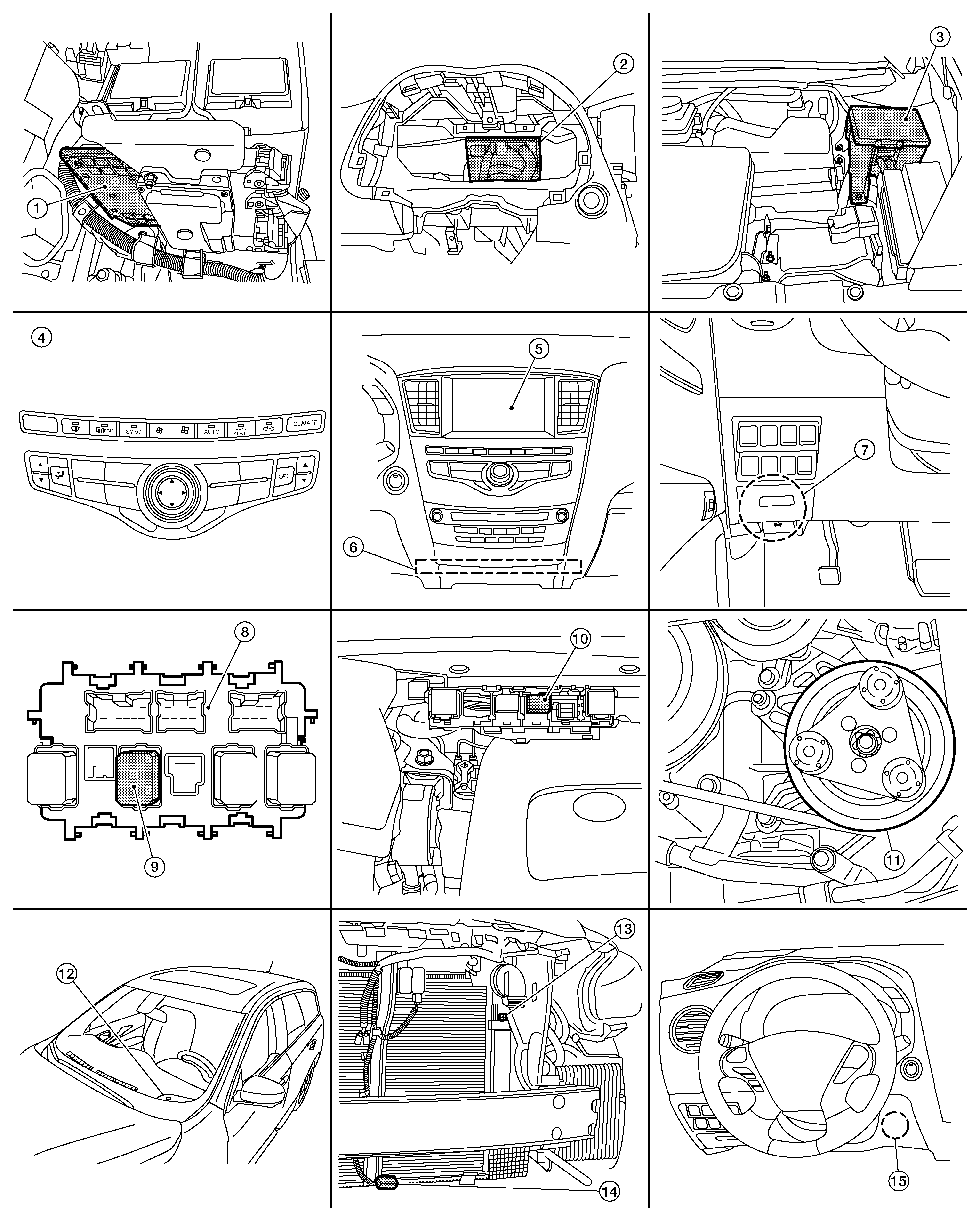

1. |
ECM |
2. |
BCM (view with combination meter removed) |
3. |
IPDM E/R |
|
4. |
Multifunction switch |
5. |
Display control unit |
6. |
A/C auto amp. |
|
7. |
Fuse block (J/B) |
8. |
Fuse block (J/B) |
9. |
Front blower motor relay |
|
10. |
Accessory relay-2 |
11. |
A/C compressor |
12. |
Sunload sensor |
|
13. |
Refrigerant pressure sensor (view with front bumper fascia removed) |
14. |
Ambient sensor |
15. |
In-vehicle sensor |
|
16. |

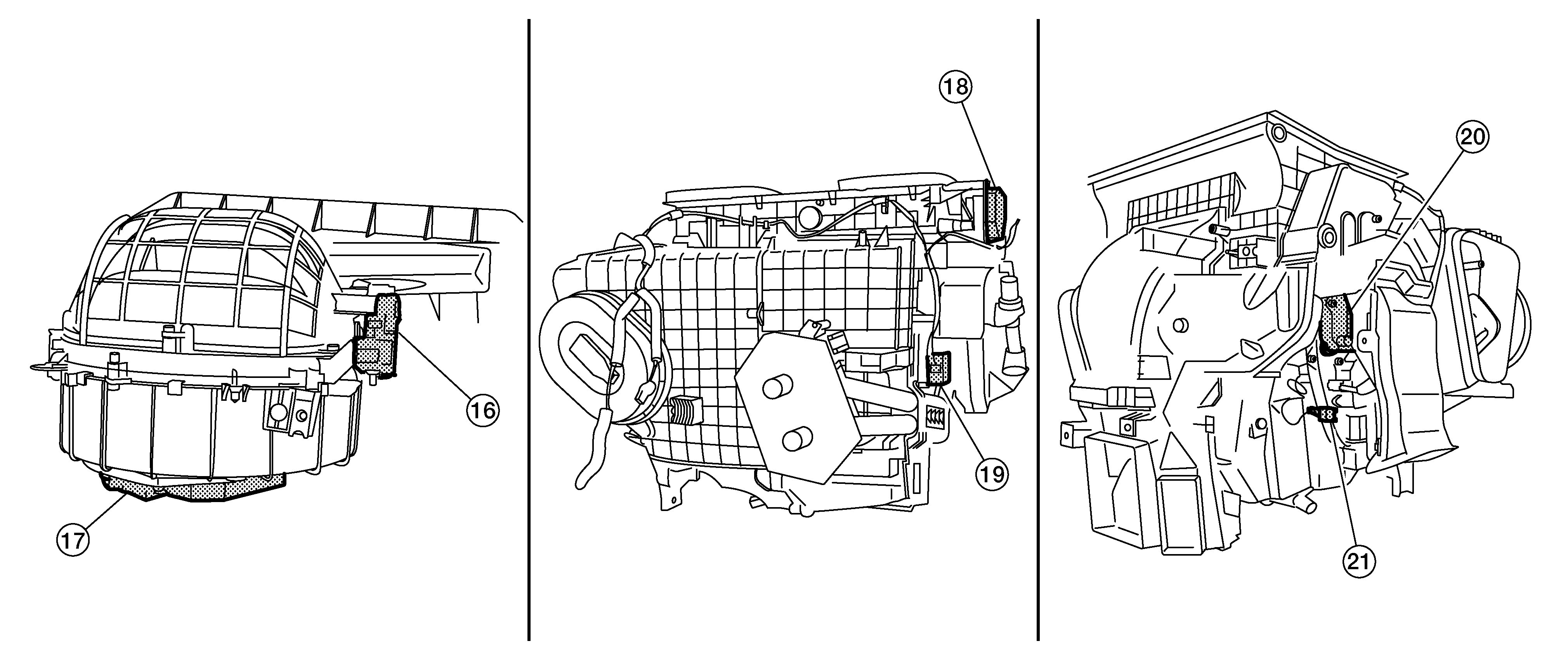

Intake door motor (view with fresh air intake duct removed from vehicle) |
17. |
Front blower motor |
18. |
Mode door motor (front) (view with front A/C assembly removed from vehicle) |
|
19. |
Air mix door motor (driver side) |
20. |
Air mix door motor (passenger side) (view with front A/C assembly removed from vehicle) |
21. |
Intake sensor |
