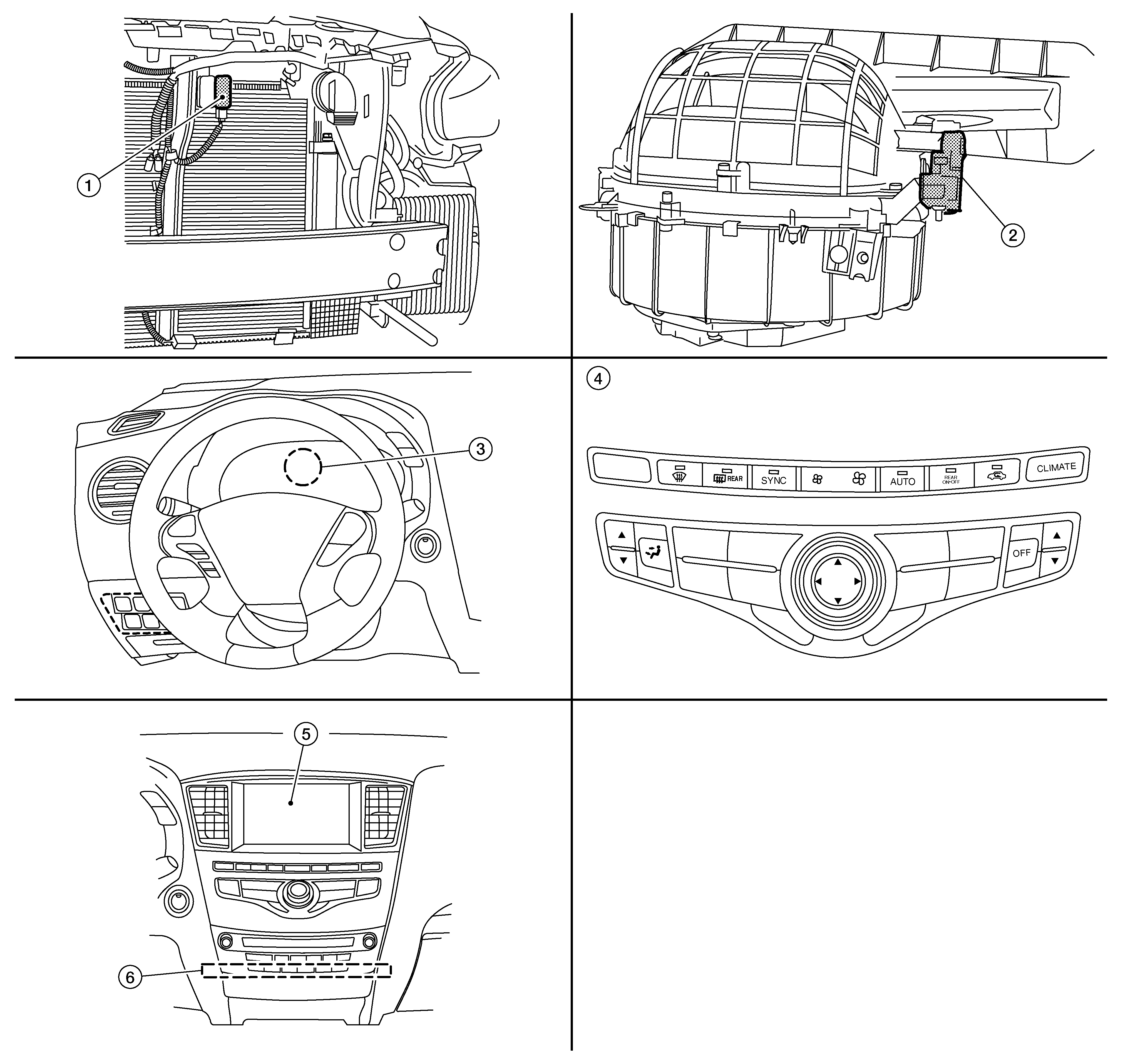

Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Exhaust gas / outside odor detecting sensor (view with front bumper fascia removed)
|
2.
|
Intake door motor (view with fresh air intake duct removed from vehicle)
|
3.
|
Ionizer
|
|
4.
|
Multifunction switch
|
5.
|
Display control unit
|
6.
|
A/C auto amp.
|
