Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C upper. Refer to Removal and Installation .

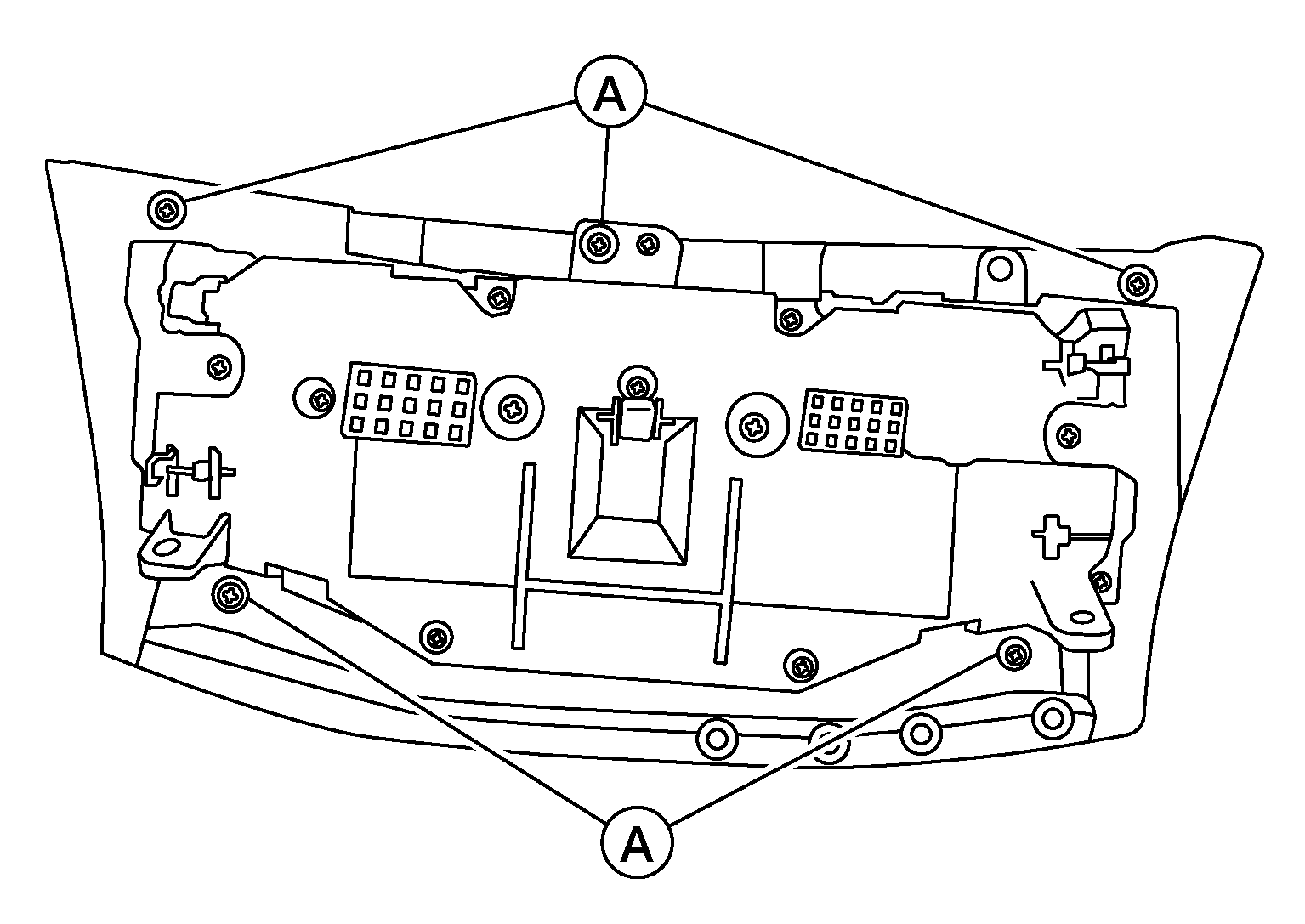

  2. Remove the screws (A) and the multifunction switch.
    GNSAWIIA1699Z-699Courtesy of NISSAN NORTH AMERICA, INC.
