Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

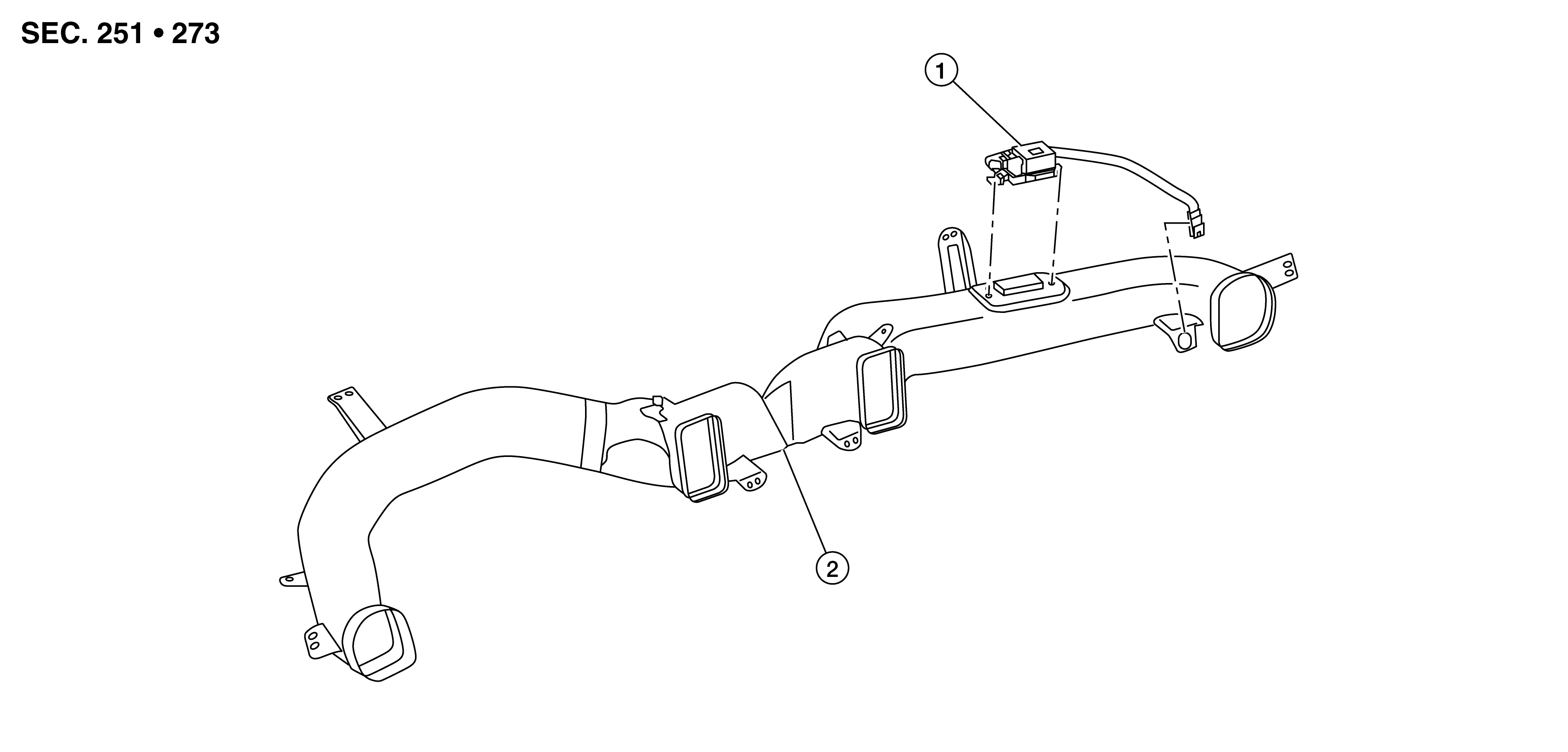

GNSDB114468Courtesy of NISSAN NORTH AMERICA, INC.

1.

Ionizer

2.

Center ventilator duct
