Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

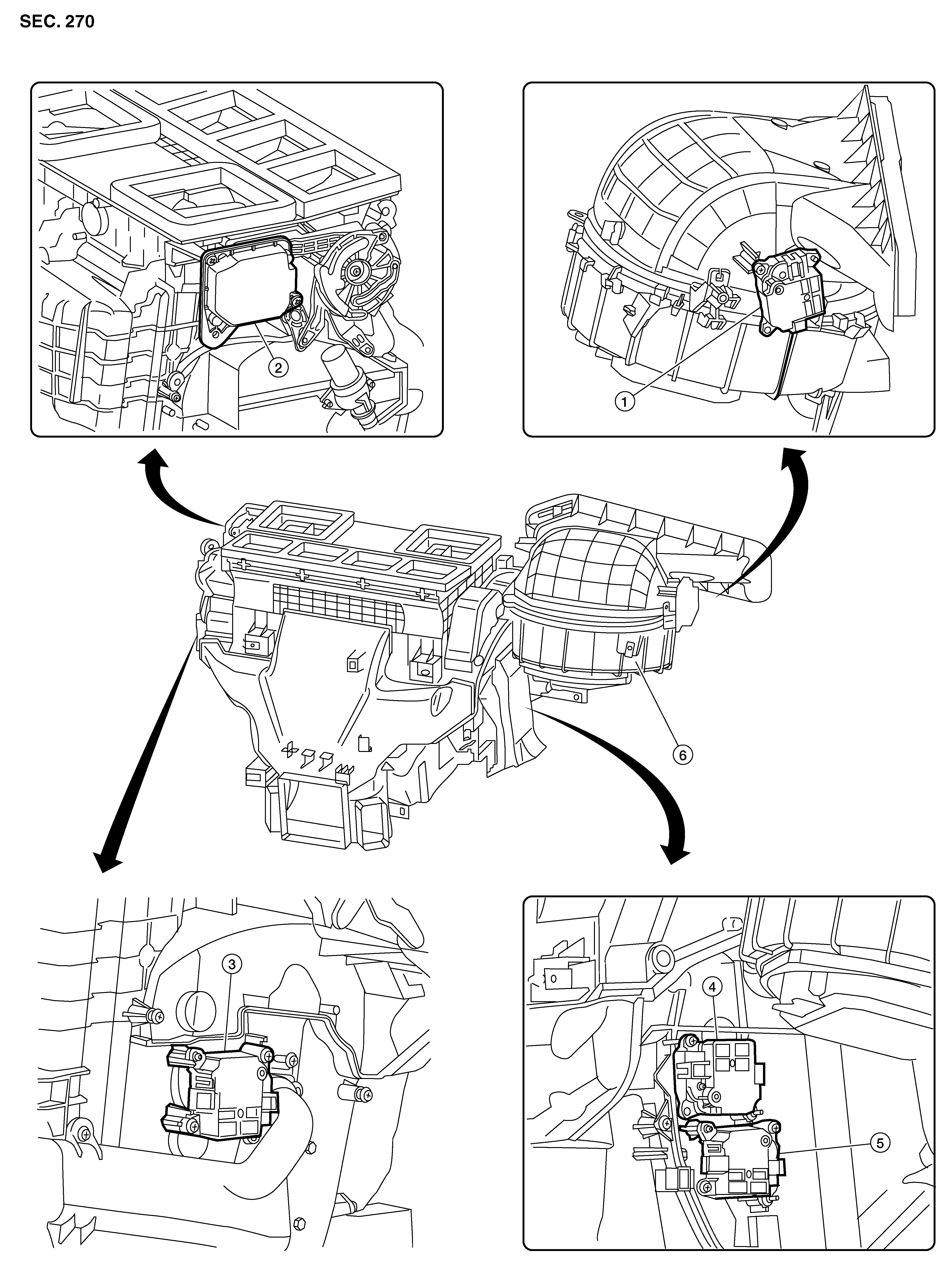

1.
|
Intake door motor
|
2.
|
Mode door motor (front)
|
3.
|
Air mix door motor (driver side)
|
|
4.
|
Air mix door motor (passenger side)
|
5.
|
Air mix door motor (rear)
|
6.
|
Front heating and cooling unit assembly
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

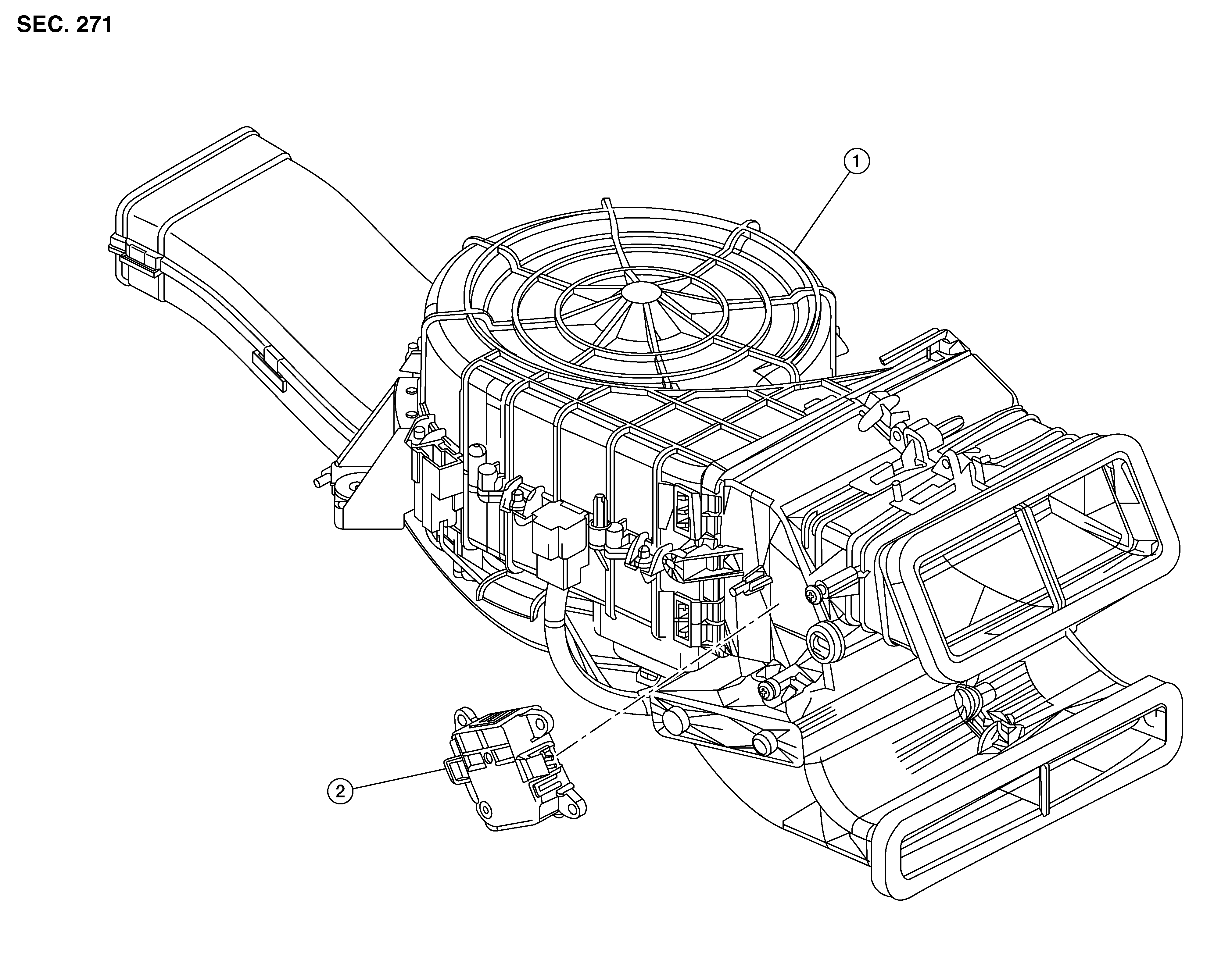

1.
|
Rear blower motor 1 unit assembly
|
2.
|
Mode door motor (rear)
|
