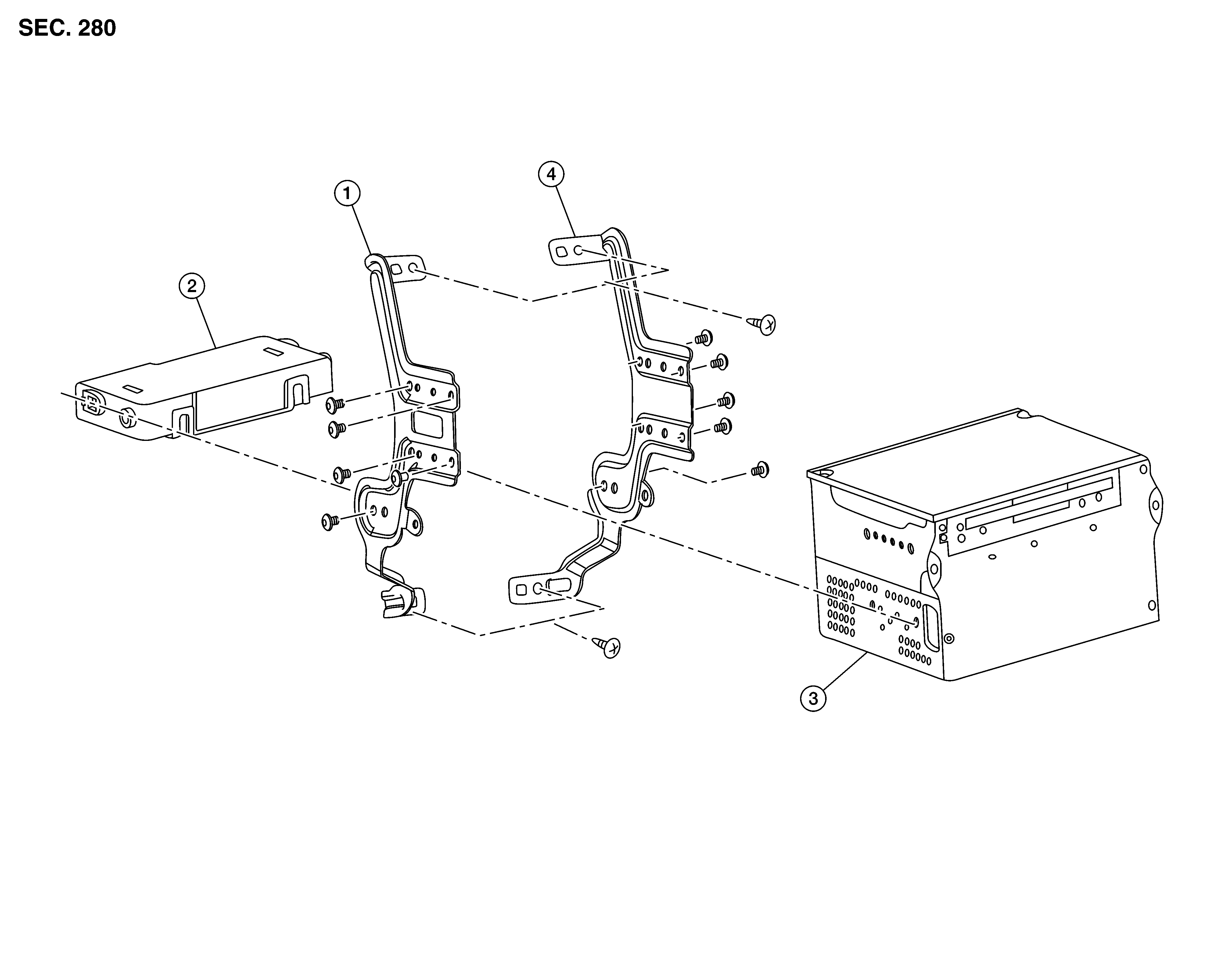

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
AV control unit bracket (LH)
|
2.
|
A/C auto amp.
|
3.
|
AV control unit
|
|
4.
|
AV control unit bracket (RH)
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
AV control unit bracket (RH)
|
2.
|
AV control unit bracket (LH)
|
3.
|
A/C auto amp.
|
|
4.
|
Navi control unit
|
5.
|
AV control unit
|
