Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlining. Refer to Removal and Installation .
Disconnect the harness connector from the sunshade motor assembly.
Remove the rear sunshade nuts (A).

Fig 1: Rear Sunshade Nuts With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.

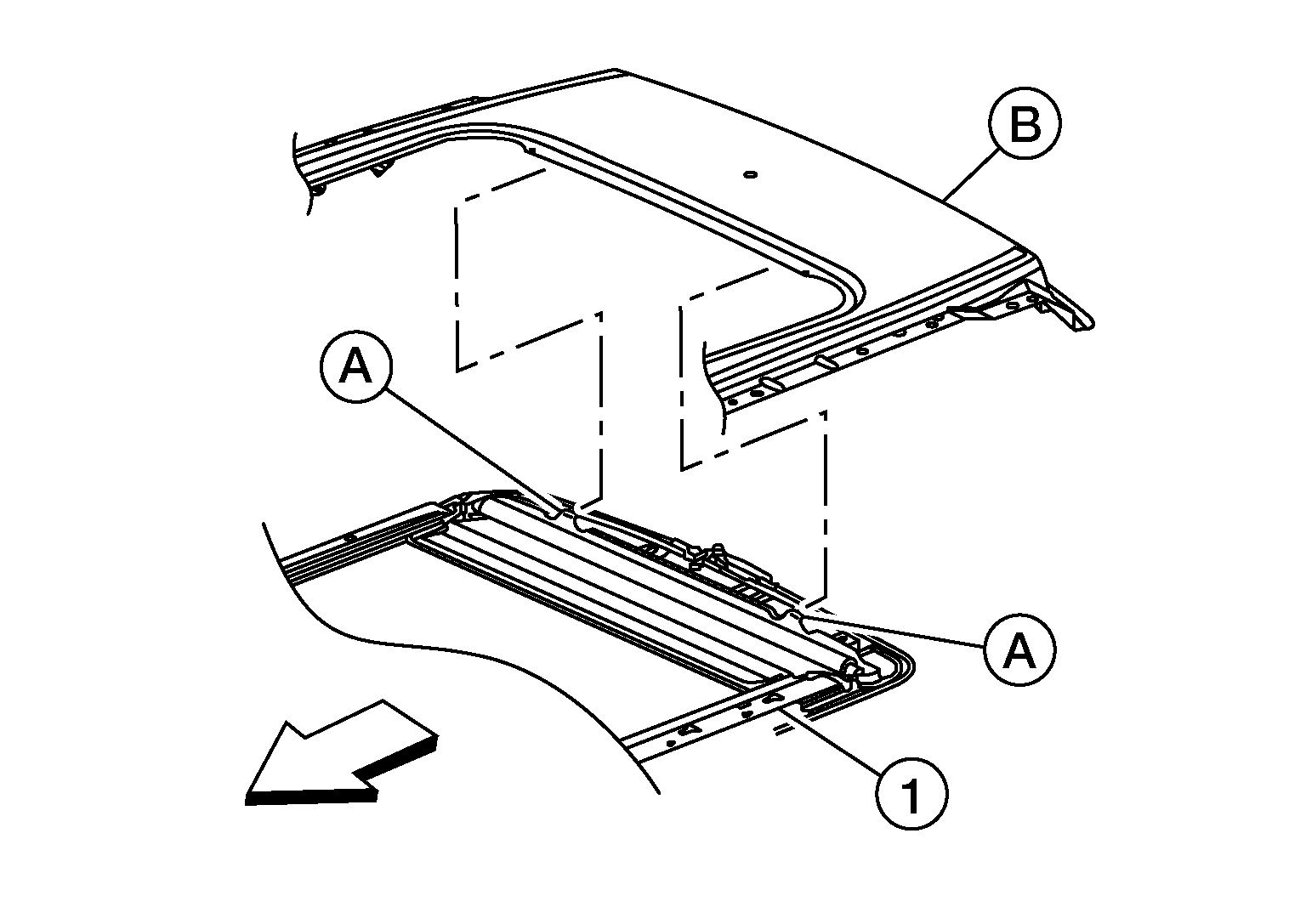

Slide rear sunshade unit (1) forward to disengage rear hooks (A) from roof (B), then remove rear sunshade unit through back door opening.

Courtesy of NISSAN NORTH AMERICA, INC.
