Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headlining. Refer to Removal and Installation .

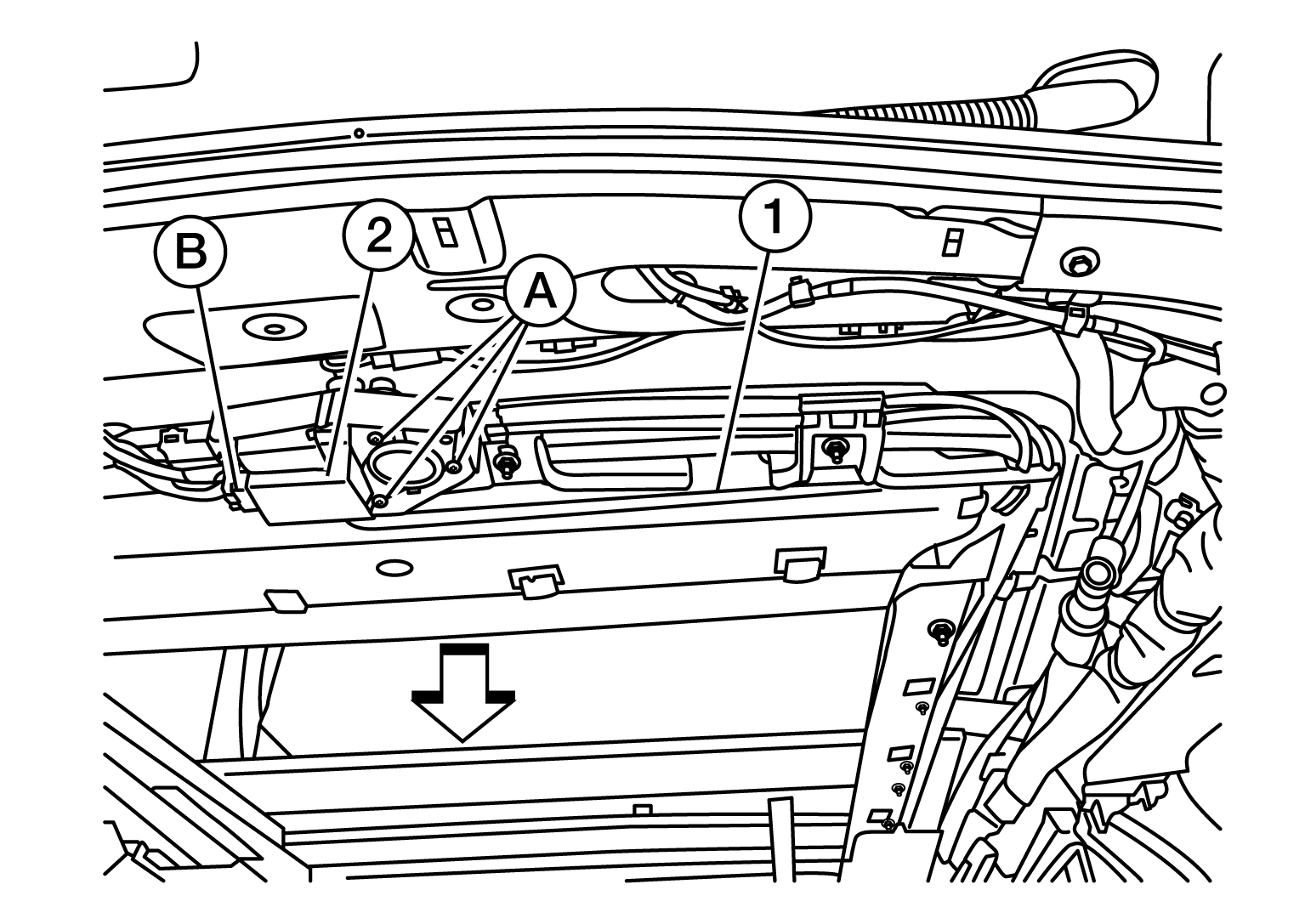

- Disconnect the harness connector (B) from the sunshade motor assembly (2).
: Front
- Remove sunshade motor assembly screws (A).
- Remove the sunshade motor assembly (2) from the rear sunshade unit (1).
