Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close glass lid.
  2. Remove the headlining. Refer to Removal and Installation .
  3. Disconnect drain hoses. Refer to Inspection  for location of hoses.
  4. Disconnect the harness connector from moonroof motor assembly.

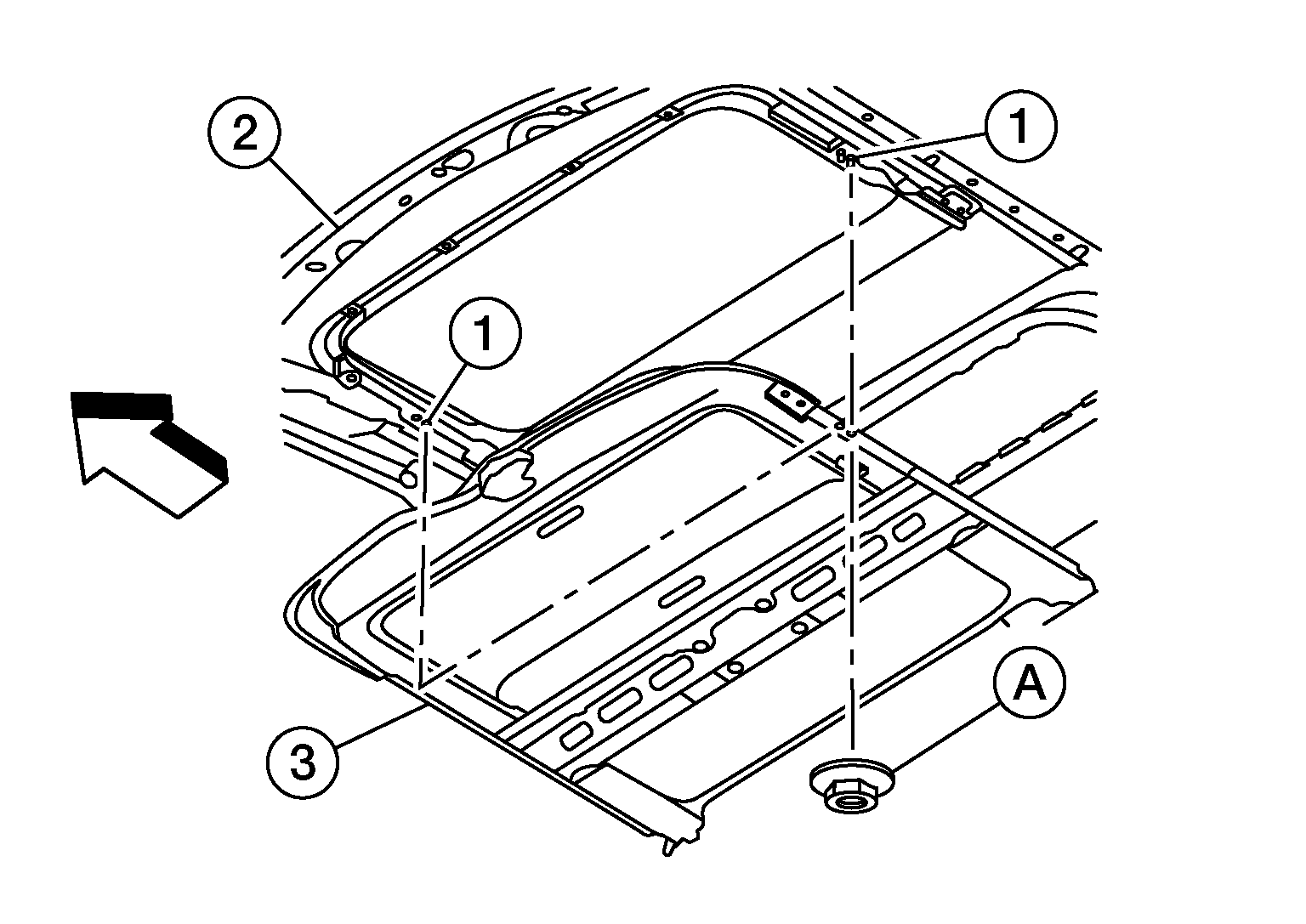

  5. Remove nuts (A) and moonroof unit assembly (3) from roof assembly (2) studs (1).
    GNSALKIA0018Z-018Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

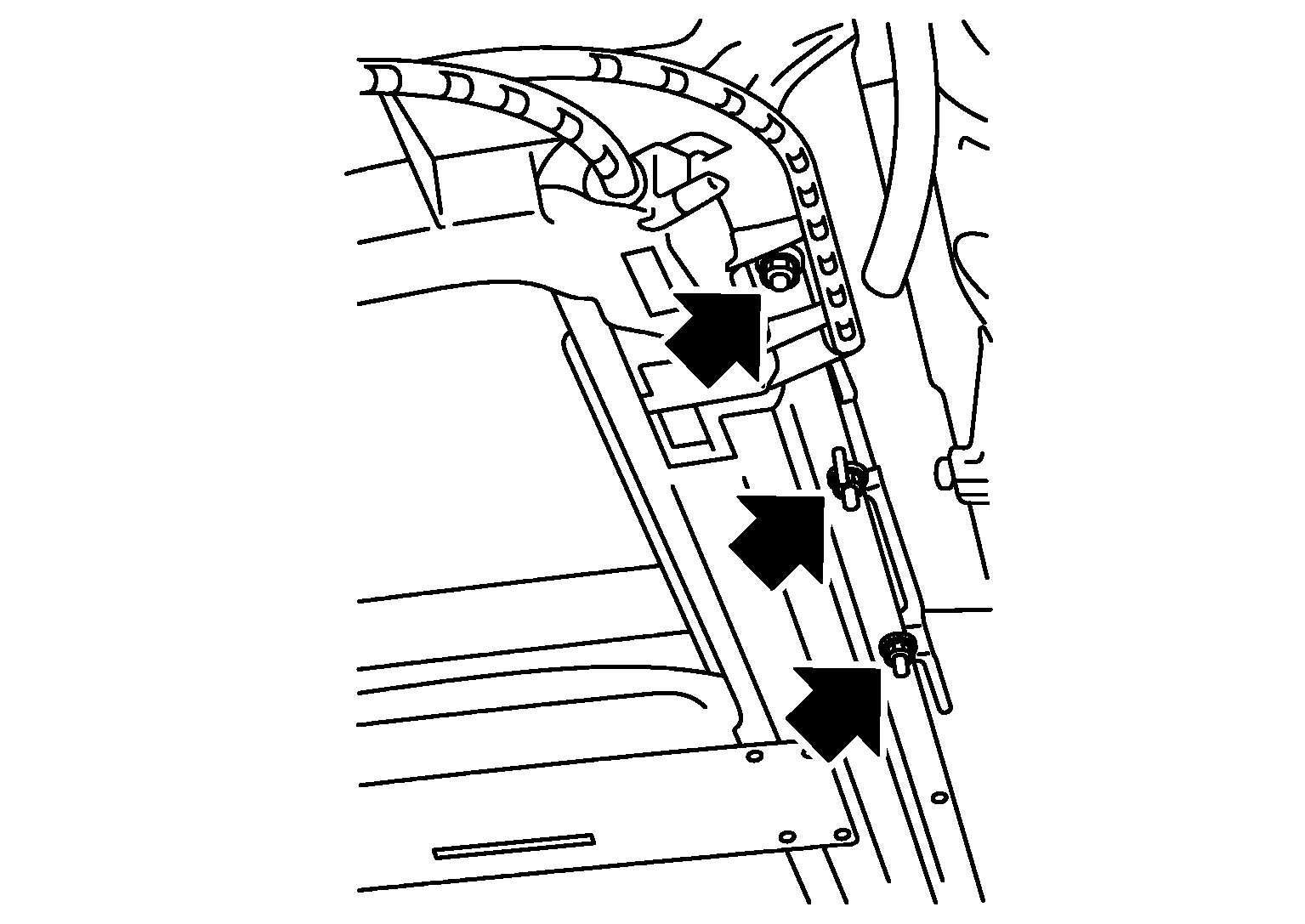

  6. Remove bolts on the front end and side rails of the moonroof unit assembly.
    G04814940Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove rear moonroof side bracket bolts and remove moonroof unit assembly.
  8. Remove moonroof unit assembly through the passenger compartment opening.
    CAUTION: Use care not to damage the seats and trim.
