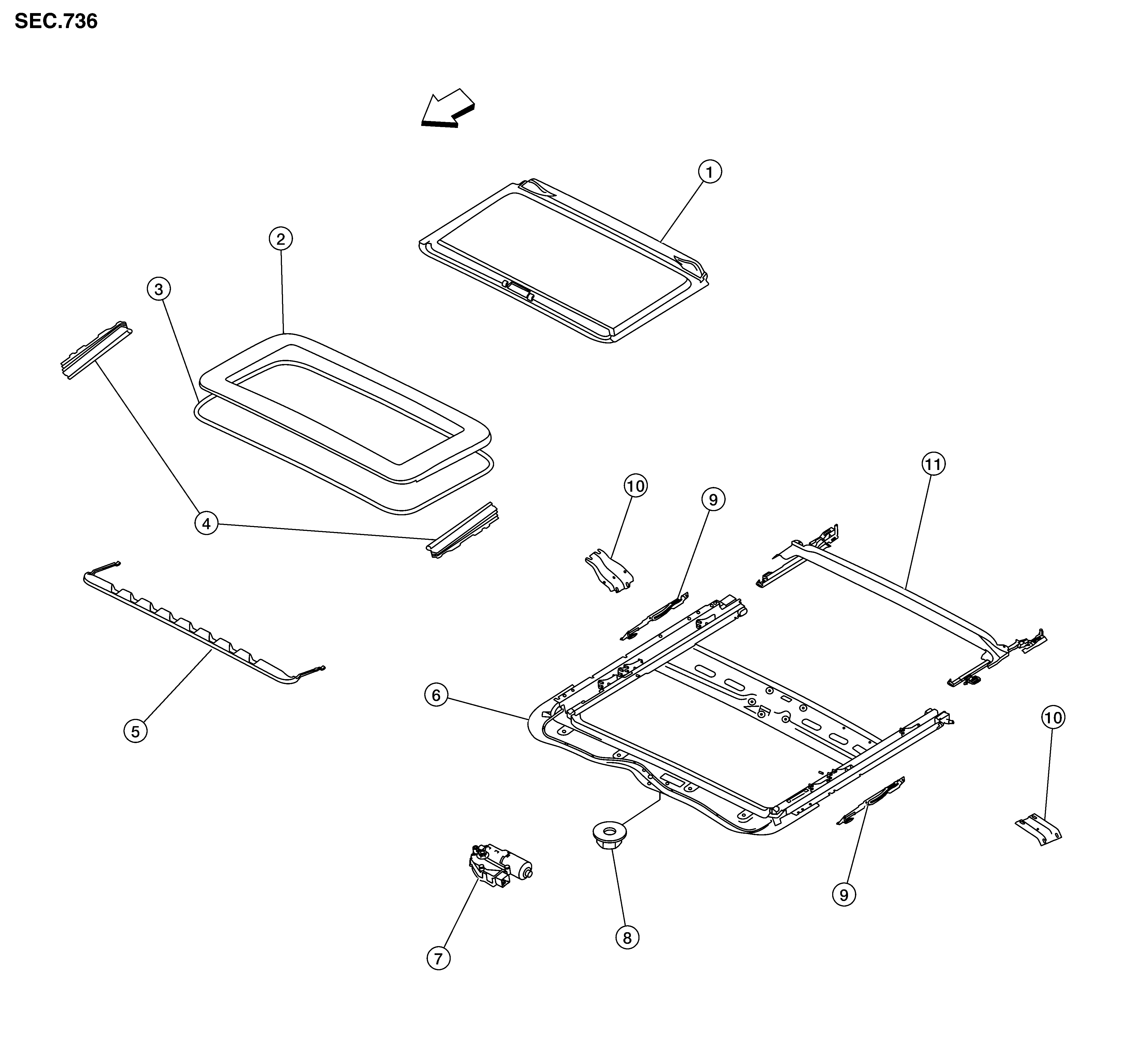

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Sunshade
|
2.
|
Glass lid
|
3.
|
Weatherstrip
|
|
4.
|
Side trim cover (LH/RH)
|
5.
|
Wind deflector
|
6.
|
Moonroof unit assembly
|
|
7.
|
Moonroof motor assembly
|
8.
|
Nut
|
9.
|
Lift arm
|
|
10.
|
Moonroof side brackets
|
11.
|
Cross support
|
|
Front
|
