Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front room/map lamp assembly. Refer to Removal and Installation .

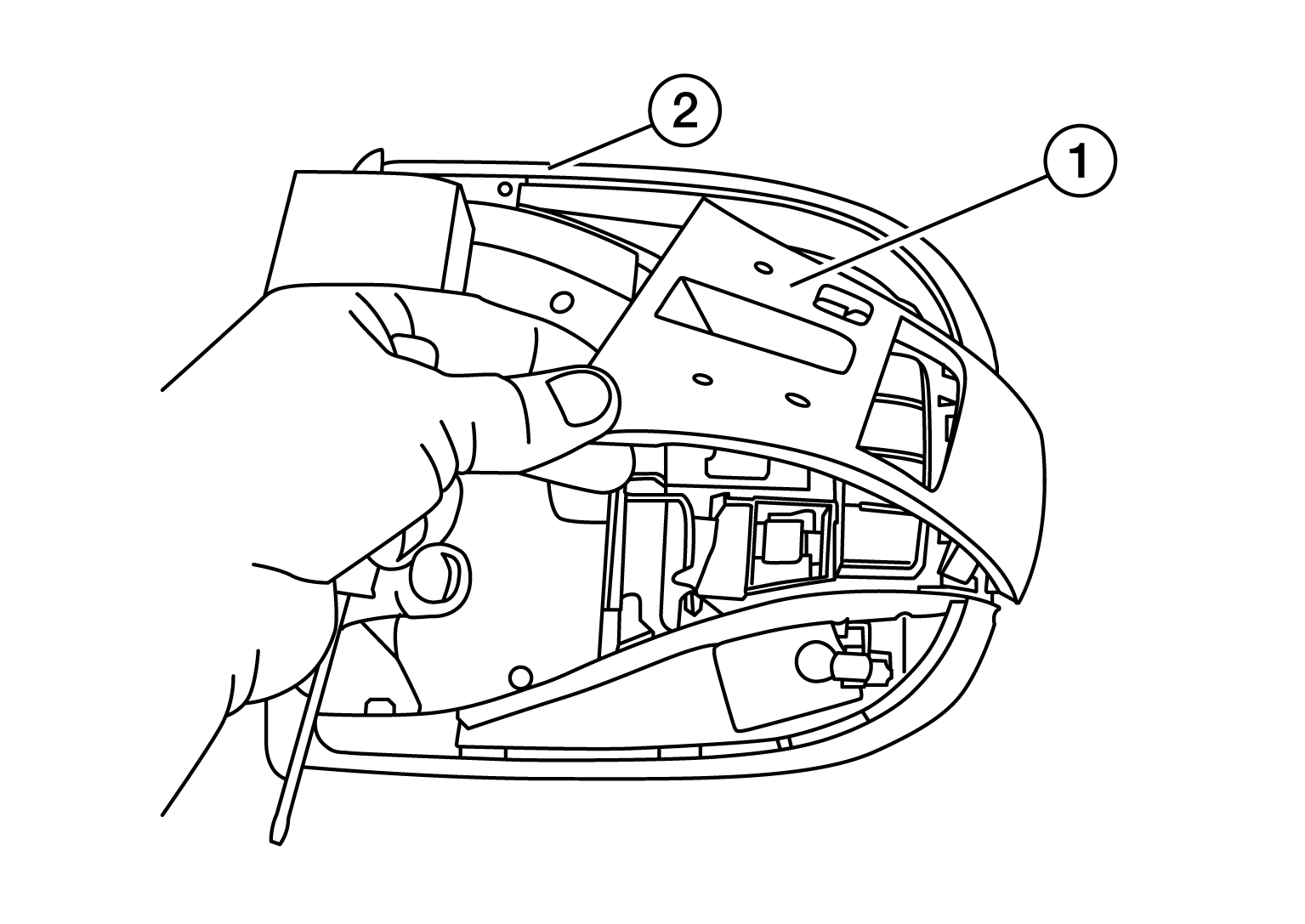

- Remove switch cover (1) from the front room/map lamp assembly (2).

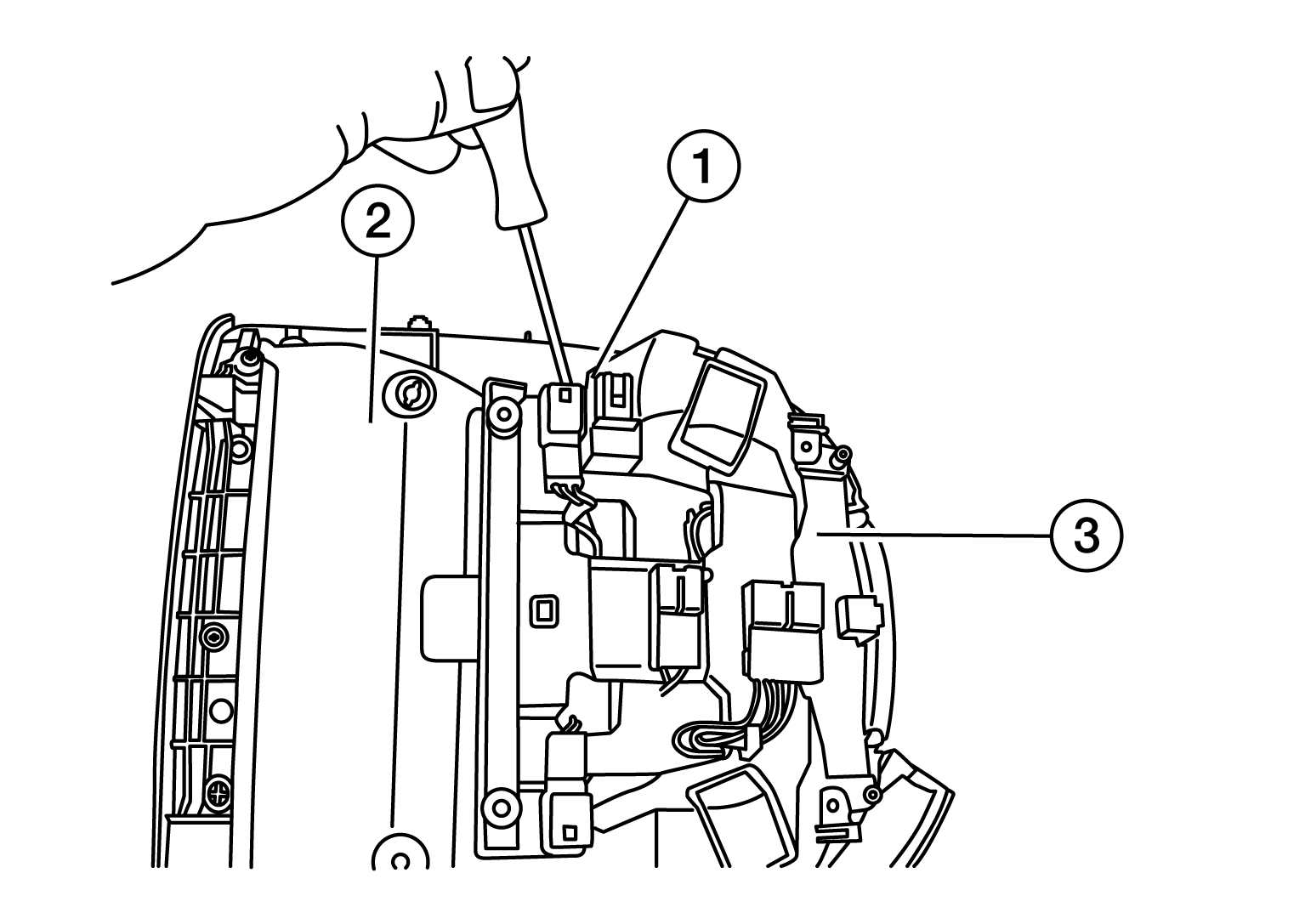

- Disconnect harness connector (1) using a suitable tool, remove harness connector plate (3) from front room/map lamp assembly (2) and release tabs to remove moonroof switch.
