Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Close glass lid.
- Remove the headlining. Refer to Removal and Installation .

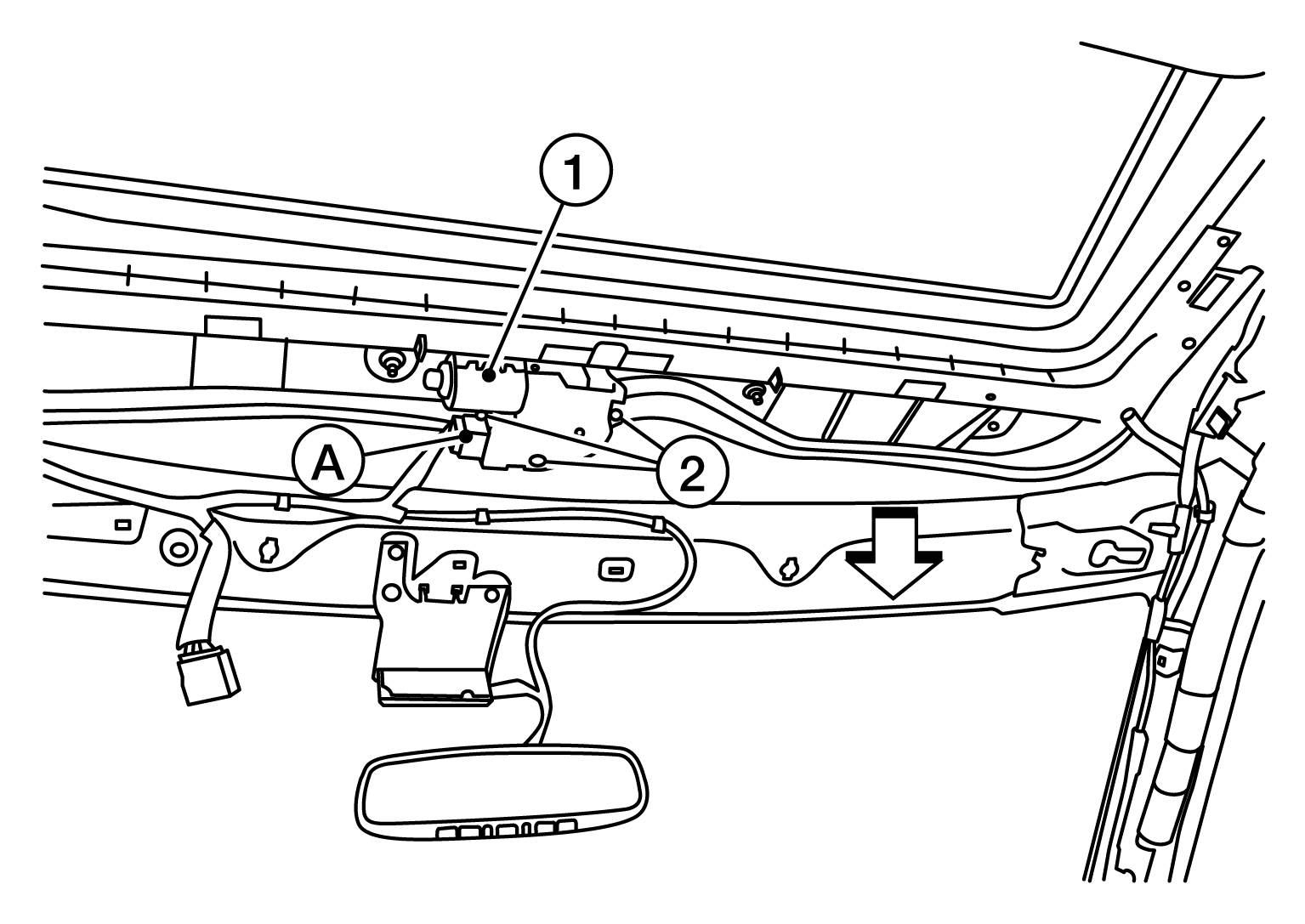

- Remove moonroof motor assembly screws (2).
: Front
- Disconnect harness connector (A) and remove moonroof motor assembly (1) from moonroof unit assembly front end rail.CAUTION: Do not run the removed moonroof motor assembly as a single unit.
