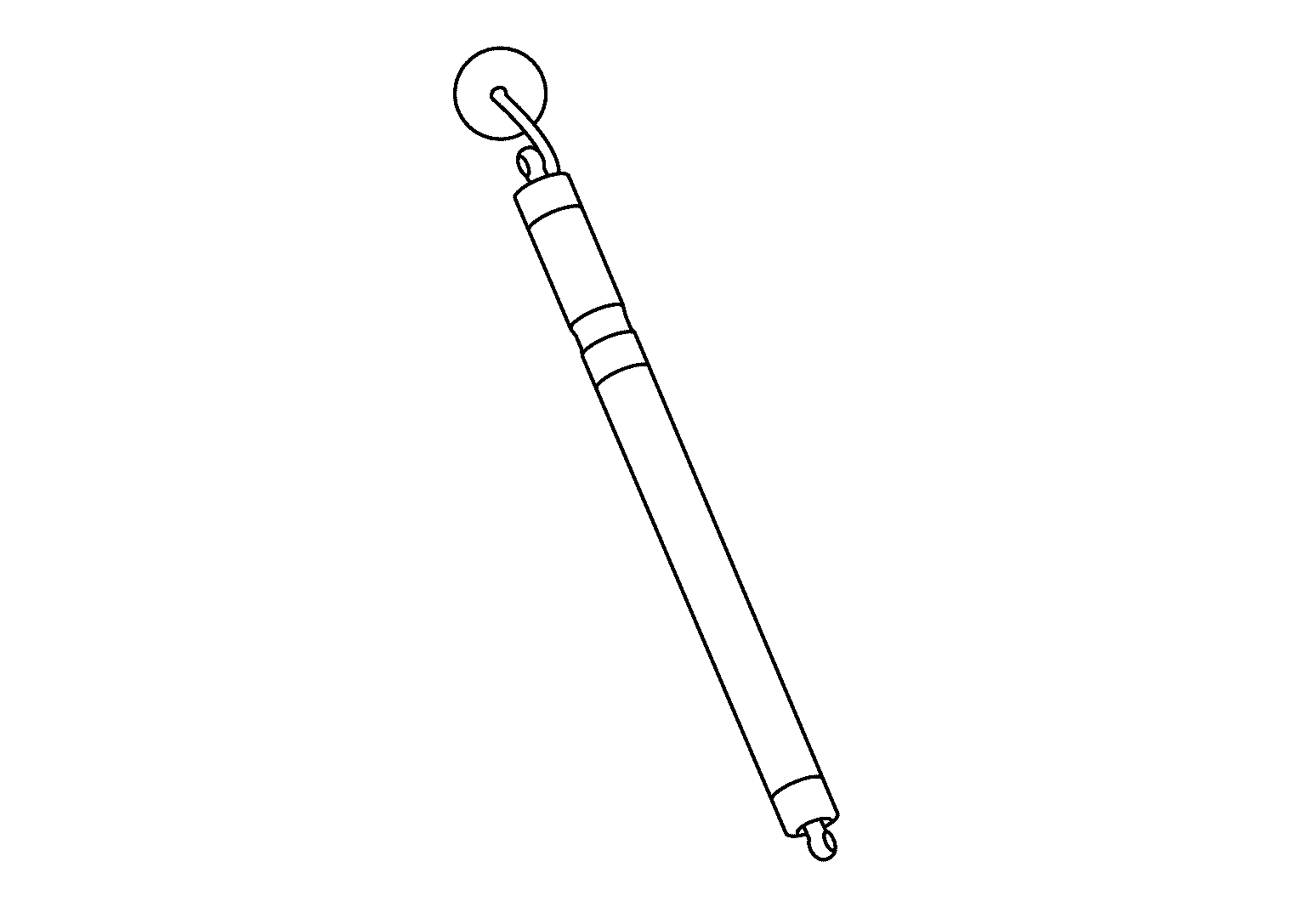

Spindle Unit
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
- Spindle unit integrates encoder
- Encoder: Automatic back door control unit receives the pulse signals from encoders A and B that occurred due to synchronization with the back door operation. The automatic back door control unit calculates the back door position, operation direction, and operation speed according to the received pulse signals.
- Spindle motor: Inputs open/close signal from automatic back door control unit and activates the automatic back door open/close operation.
