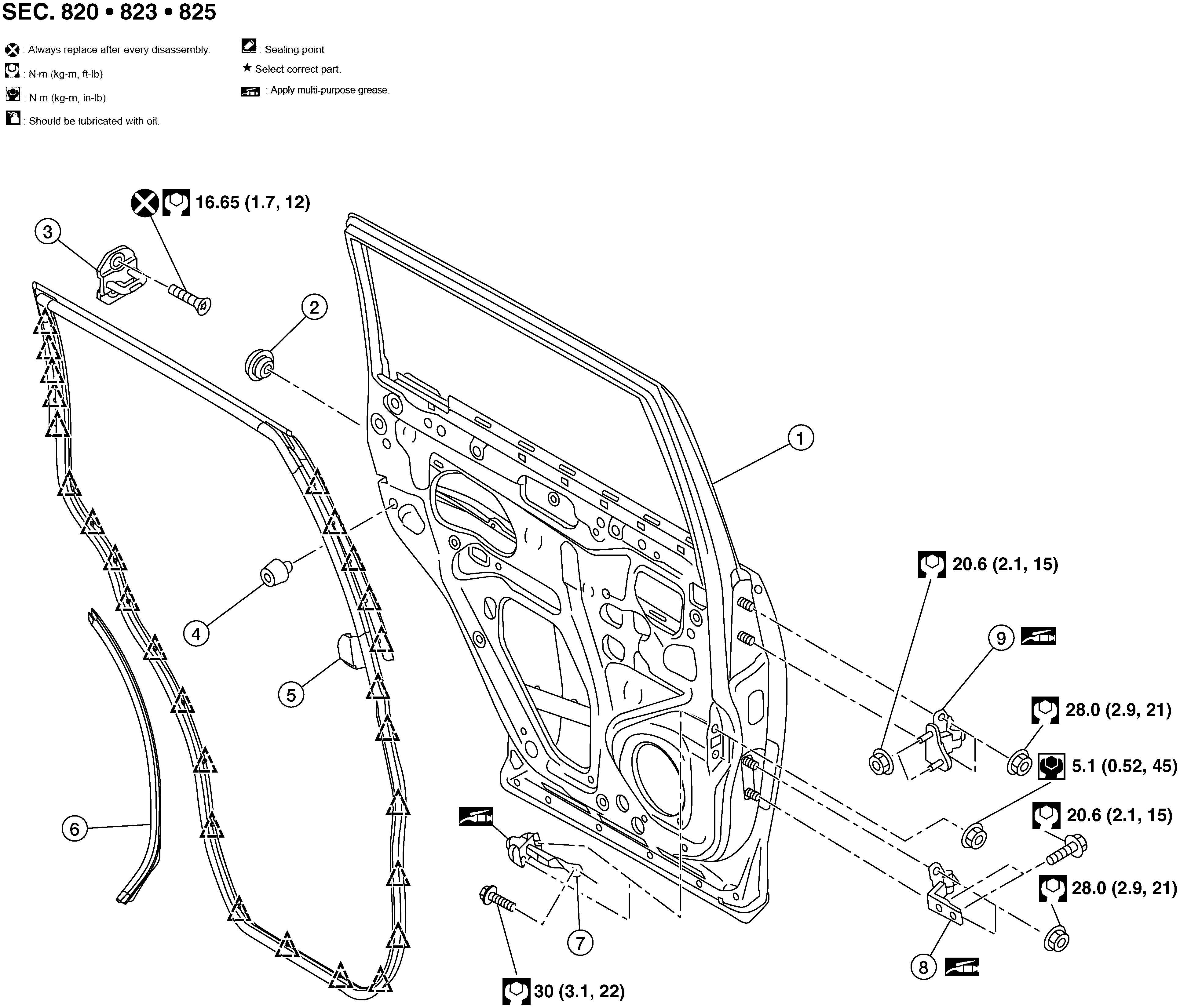

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Rear door panel
|
2.
|
Grommet
|
3.
|
Door striker
|
|
4.
|
Bumper rubber
|
5.
|
Rear door weather strip
|
6.
|
Rear door seal
|
|
7.
|
Door check link
|
8.
|
Rear door lower hinge
|
9.
|
Rear door upper hinge
|
