Rear Door: Adjustment
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

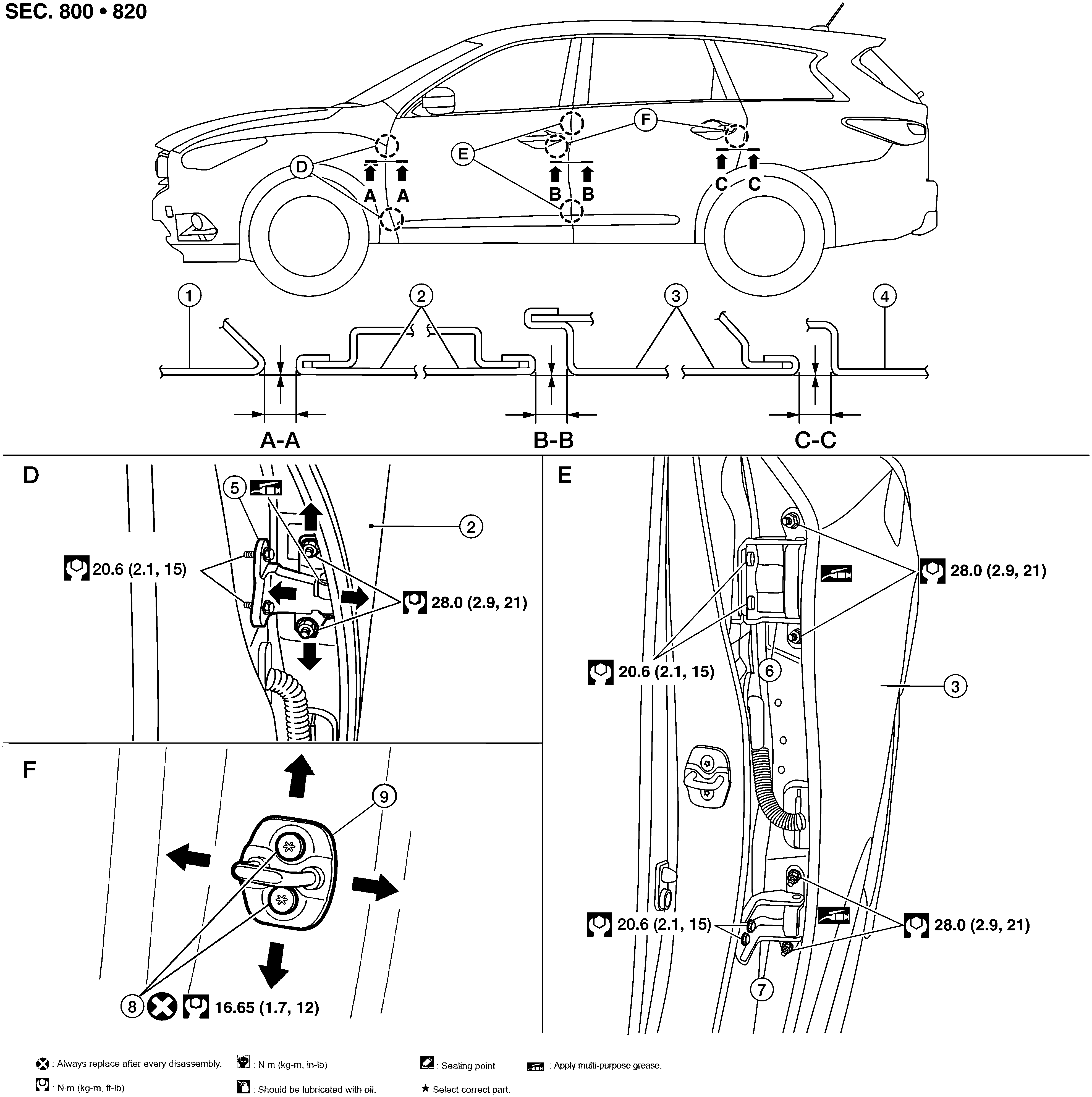

1. |
Front fender |
2. |
Front door |
3. |
Rear door |
|
4. |
Body side outer |
5. |
Front door hinge |
6. |
Rear door upper hinge |
|
7. |
Rear door lower hinge |
8. |
Door striker bolts |
9. |
Door striker |
Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.
If the clearance and the surface height are out of specification, adjust them according to the adjustment procedures.
Unit: mm (in)
|
Portion |
Section |
Measurement |
Gap measurement |
|
Front fender - Front door |
A - A |
Clearance |
3.8 +/- 1.0 (0.15 +/- 0.04) |
|
Surface height |
+/- 1.0 (+/- 0.04) |
||
|
Front door - Rear door |
B - B |
Clearance |
4.1 +/- 1.0 (0.16 +/- 0.04) |
|
Surface height |
+/- 1.0 (+/- 0.04) |
||
|
Rear door - Body side outer |
C - C |
Clearance |
3.7 +/- 1.0 (0.15 +/- 0.04) |
|
Surface height |
+/- 1.0 (+/- 0.04) |
- Remove center pillar lower finisher. Refer to Removal and Installation .
- Loosen rear door hinge nuts on rear door side.
- Adjust the surface height of rear door according to specifications provided.
- Temporarily tighten rear door hinge nuts on rear door side.
- Loosen rear door hinge nuts and bolts on body side.
- Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
- After adjustment tighten bolts and nuts to the specified torque.CAUTION:
- Check rear door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose grease.
- After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.
- Install center pillar lower finisher. Refer to Removal and Installation .
