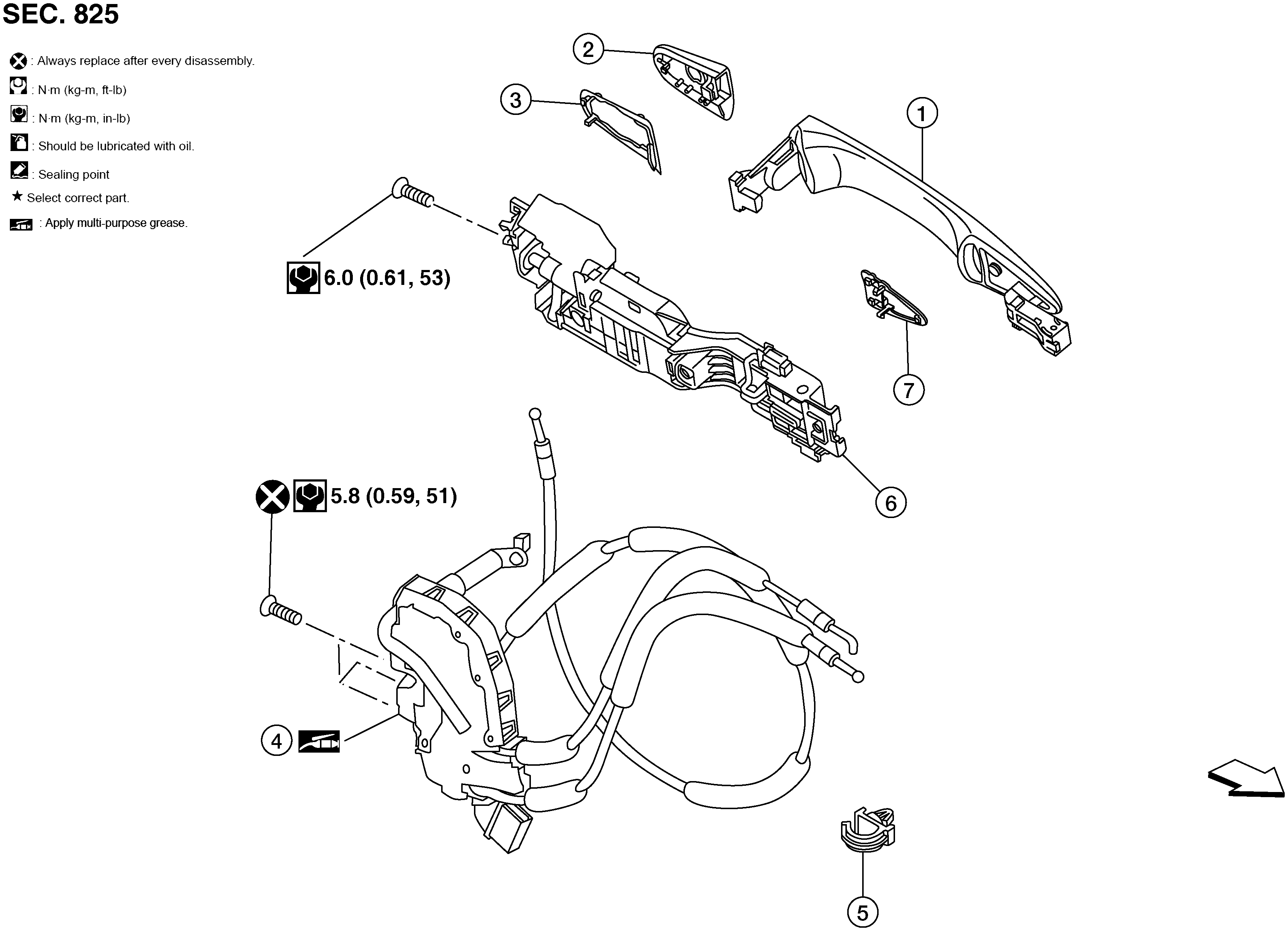

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Outside handle
|
2.
|
Outside handle escutcheon
|
3.
|
Rear gasket
|
|
4.
|
Rear door lock
|
5.
|
Cable clip
|
6.
|
Outside handle bracket
|
|
7.
|
Front gasket
|
|
Front
|
