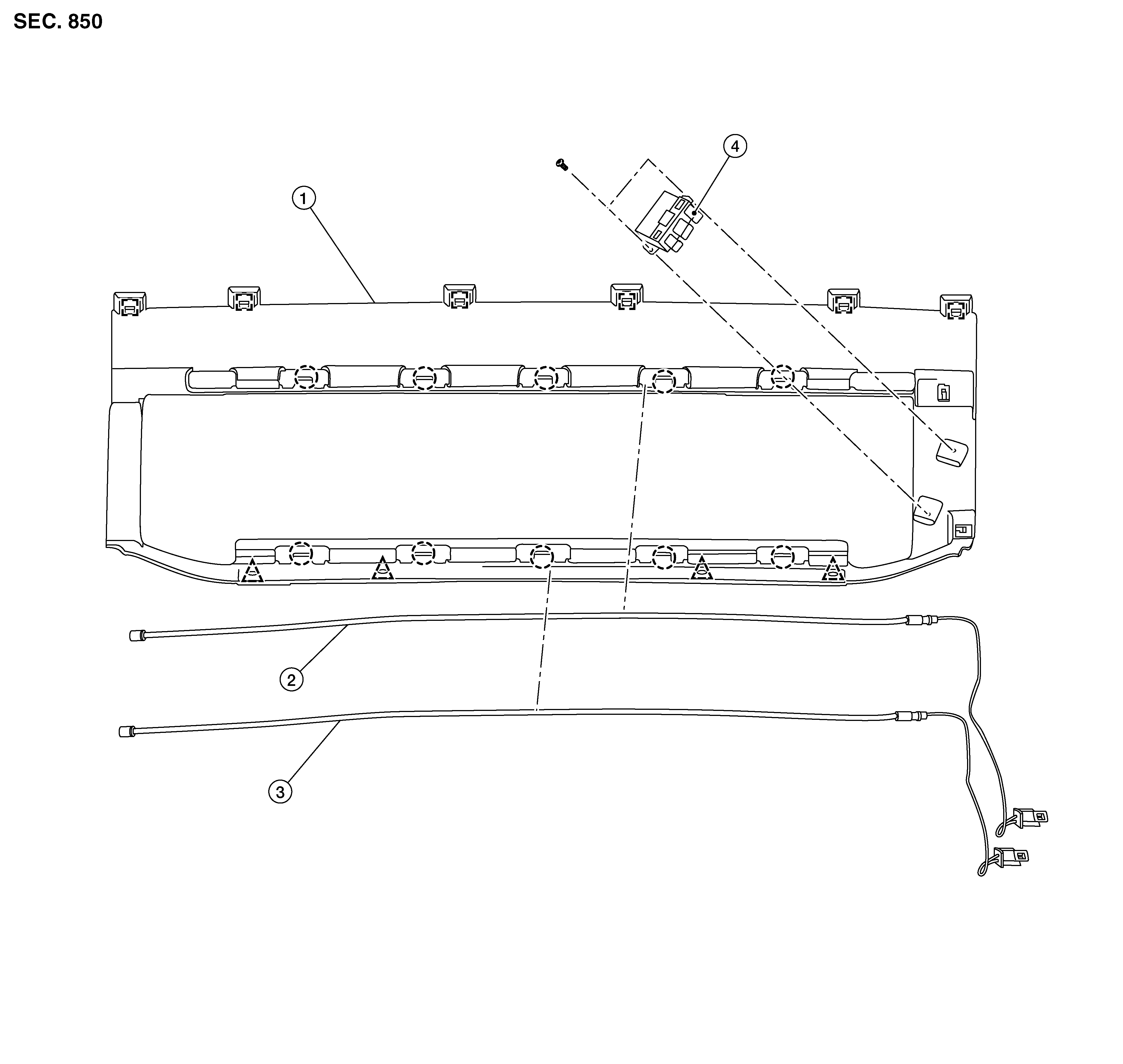

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Motion activated back door bracket
|
2.
|
Motion activated back door sensor (upper)
|
3.
|
Motion activated back door sensor (lower)
|
|
4.
|
Motion activated back door control unit
|
|
Metal clip
|
|
Clip
|
|
|
Pawl
|
|
